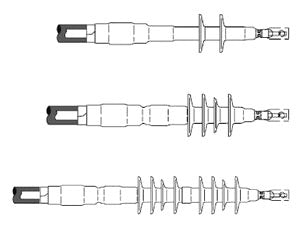

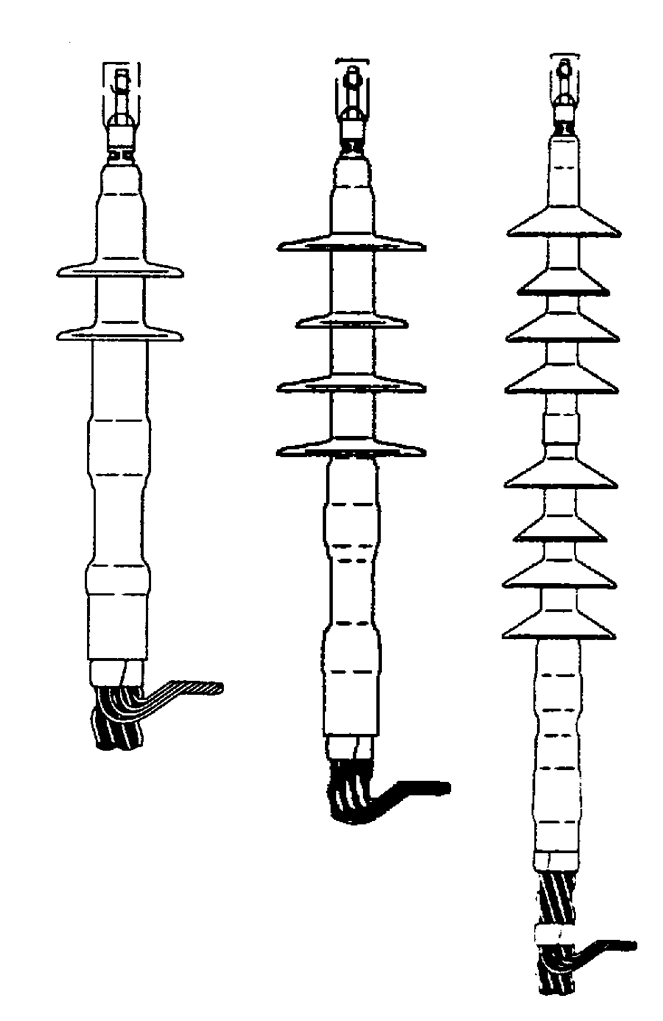

3M 7686-S-8 Cold Shrink QT-III Termination Kit 5-35 kV

Product Description

The 3M 7686-S-8 Cold Shrink QT-III Termination Kit provides solutions for terminating medium voltage cables. This kit is suitable for both indoor and outdoor applications and includes features that ensure a secure installation. The conductor size range includes 1750-2000 kcmil for 5 kV, 1500-2000 kcmil for 8 kV, and other sizes for higher voltages. The Cold Shrink technology allows for easy application and a void-free seal.

• Provides a void-free seal for tape shield, wire shield, and UniShield power cables.
• Made with durable silicone rubber insulation for reliability.
• Designed for outdoor applications and maintains performance in various conditions.

Product Highlights

This termination kit is essential for high-voltage electrical systems, offering strong insulation and stress control to ensure safety and effectiveness.

Product Information

Standard Information

• Brand: 3M
• MPN: 7686-S-8

Technical Specifications

• Voltage Rating: 5 to 35 kV
• Cable Type: Tape Shield; UniShield; Wire Shield
• Conductor Size: 1750 to 2000 kcmil (5 kV), 1500 to 2000 kcmil (8 kV), 1250 to 2000 kcmil (15 kV), 900 to 1750 kcmil (25/28 kV), 700 to 1500 kcmil (35 kV)
• Insulator Material: Silicone Rubber
• Insulator Type: 8-Skirted
• BIL Rating: 200 kV
• Number of Terminations: 3
