3M 7685-S-8 Cold Shrink QT-III Termination Kit 5-35 Kv

Product Description

The 3M 7685-S-8 Cold Shrink QT-III Termination Kit is designed for efficient wire terminations without the need for heat or special tools. This kit includes all necessary components for creating three terminations, while ensuring maximum durability and performance in outdoor applications.

• Quick installation with a versatile one-piece design
• No torches or complex tools required
• Resistant to water, UV, and tracking

Product Highlights

This product is suitable for use with tape shield, wire shield, and UniShield power cables.

Product Information

Standard Information

• Brand: 3M
• MPN: 7685-S-8

Technical Specifications

• Voltage: 5 to 35 kV
• Conductor Size: 700 to 1500 kcmil (5 kV), 600 to 1250 kcmil (8 kV), 500 to 1000 kcmil (15 kV), 250 to 800 kcmil (25/28 kV), 3/0 AWG to 600 kcmil (35 kV)
• Insulator Type: (8) Skirted
• Material: Silicone Rubber

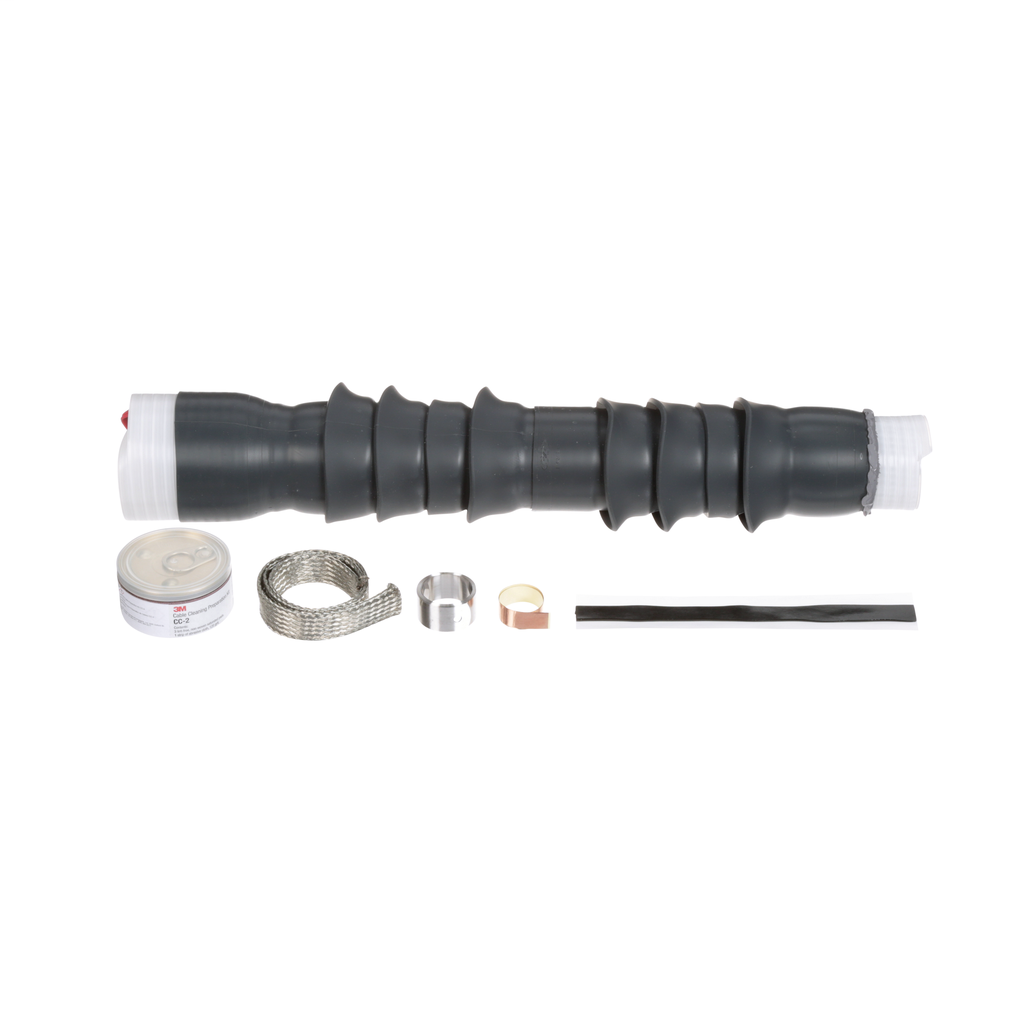

• Contents: (3) Hi-K Silicone Rubber Termination, (3) Constant Force Spring, (3) Pre-Formed Ground Braid, (6) Mastic Seal Strip, (1/2) Copper Foil Shielding Tape Strip, (1) Cable Preparation Kit, (1) Instruction Sheet
• Installed Length: 20.5 inches
• Number of Terminations: 3
• Application: Outdoor
