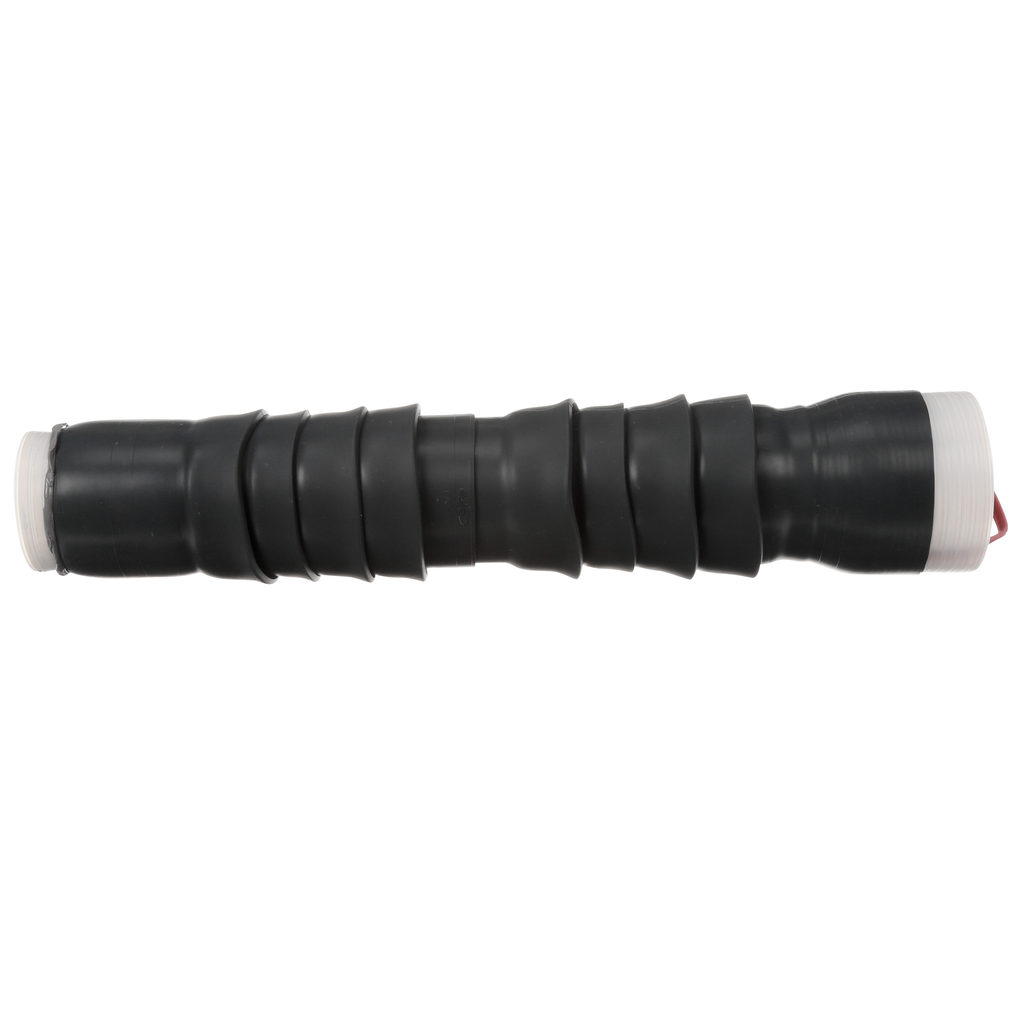

3M 7666-S-8 Cold Shrink 8 Skirt Termination

Product Description

The 3M 7666-S-8 cold shrink QT-III termination kit features a one-piece silicone rubber design for use with concentric neutral and jacketed concentric neutral cables. It operates under a voltage range from five kV to thirty-five kV and fits insulation with an outer diameter from one point fifty-three inches to two point thirty-two inches.

• Suitable for outdoor applications
• High dielectric constant material helps reduce electric field stress
• Durable silicone rubber insulation enhances performance in damp conditions

Product Highlights

This termination kit provides a reliable seal for power cables, ensuring safety and functionality in electrical installations.

Product Information

Standard Information

• Brand: 3M
• MPN: 7666-S-8

Technical Specifications

• Type: QT-III, 1-Piece
• Length: 21-1/2 inches
• Voltage Rating: 5 kV to 35 kV
• Material: Rubber
• Used With: 1.53 - 2.32 inches cable
• Cable Type: Concentric Neutral; Jacketed Concentric Neutral
• Conductor Size: 1750 to 2000 kcmil (5 kV), 1500 to 2000 kcmil (8 kV), 1250 to 2000 kcmil (15 kV), 900 to 1750 kcmil (25/28 kV), 700 to 1500 kcmil (35 kV)
