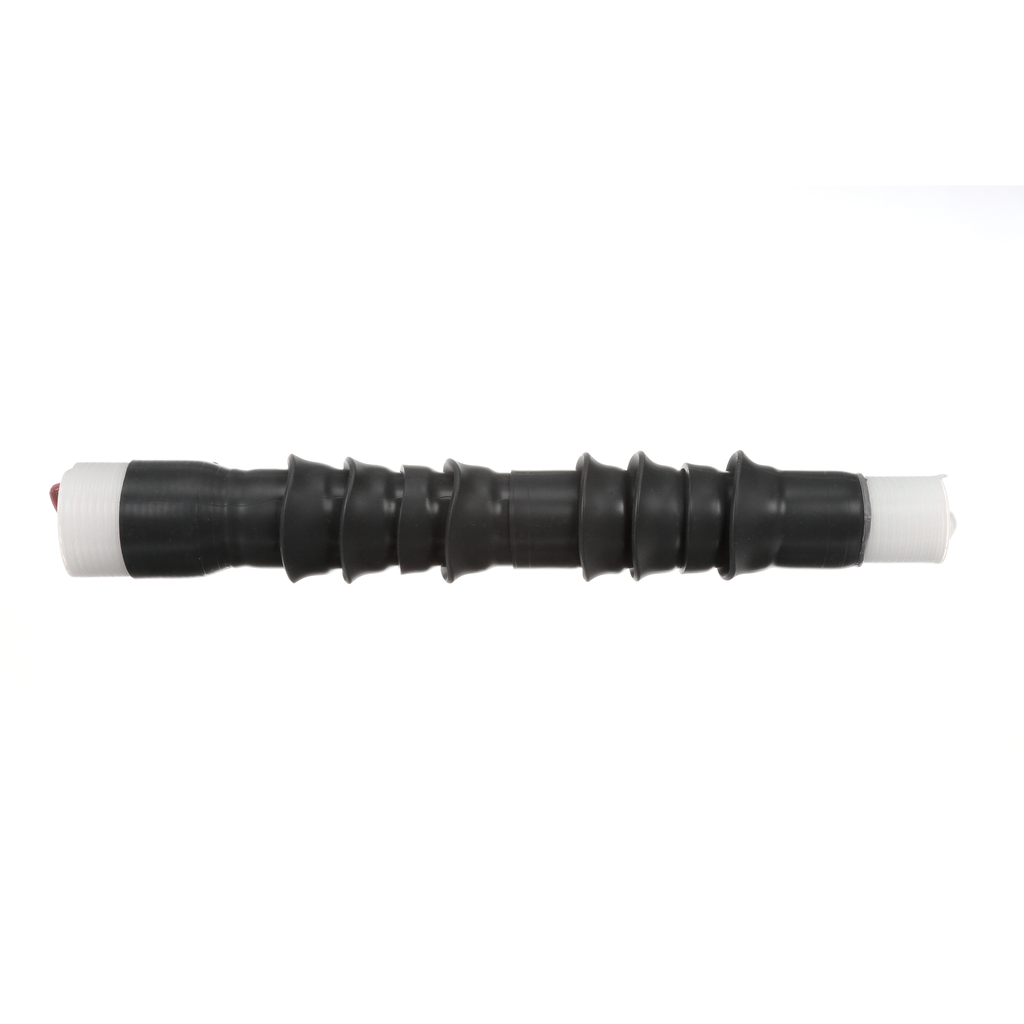

3M 7664-S-8 Cold Shrink QT-III Termination Kit CN & JCN Cable 5-25 kV Insulation OD 0.83-1.53

Product Description

3M 7664-S-8 Cold Shrink QT-III Termination Kit is designed for use with concentric neutral and jacketed concentric neutral power cables. This kit ensures a tight, pliable seal while withstanding voltages from five to thirty-five kV. The high dielectric constant material along with silicone rubber insulation provides reliable performance in outdoor applications.

• Suitable for outdoor use.
• Reduces leakage currents in damp conditions.
• Provides a void-free seal to cables.

Product Highlights

This termination kit is intended for high voltage installations and is manufactured to meet IEEE standards.

Product Information

Standard Information

• Brand: 3M
• MPN: 7664-S-8

Technical Specifications

• Type: Cold Shrink
• Voltage Rating: 5 to 35 kV
• Conductor Size: 500 to 750 KCMIL (5 kV), 350 to 700 KCMIL (8 kV), 4/0 AWG to 500 KCMIL (15 kV), 2/0 AWG to 250 KCMIL (25/28 kV), 2 to 4/0 AWG (35 kV)
• Cable Insulation Outer Diameter: 0.83 to 1.53 inches
• BIL Rating: 200 kV
• Material: Silicone Rubber
• Includes: 1-Piece Cold Shrink Termination
