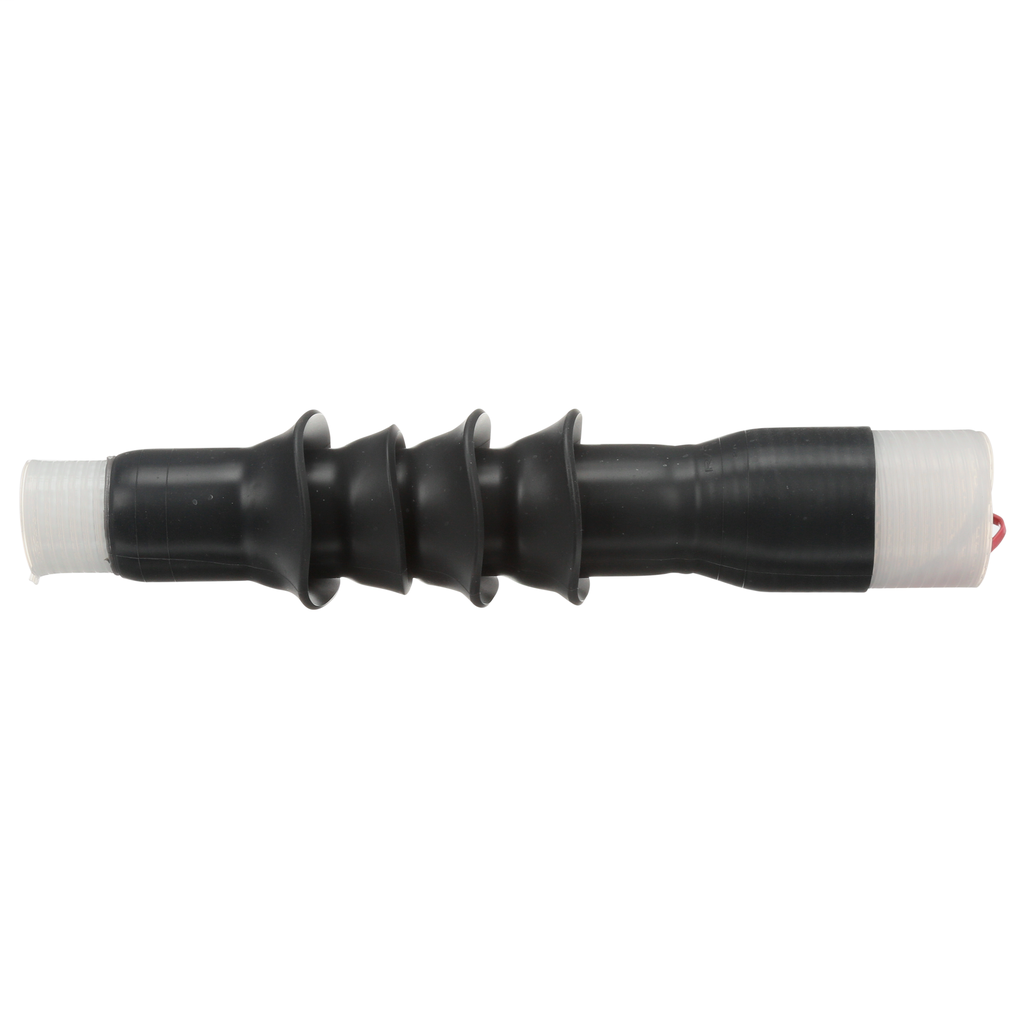

3M 7653-S-4 Cold Shrink QT-III Termination Kit 5-25/28 kV

Product Description

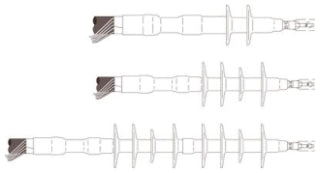

The 3M Cold Shrink QT-III Silicone Rubber Termination, MPN: 7653-S-4, is a factory-applied termination that features built-in Hi-K stress control layers. This product is ideal for confined spaces found in applications like motors and transformers, reducing the need for additional junction boxes. It accommodates a conductor size range of 300 to 500 kcmil for five kV, 250 to 500 kcmil for eight kV, 2/0 AWG to 300 kcmil for fifteen kV, and 2 to 4/0 AWG for twenty-five or twenty-eight kV.

• Durable silicone rubber insulation minimizes leakage currents.
• Provides a void-free seal for jacketed concentric neutral cables.
• Complies with industry standards for outdoor use.

Product Highlights

This termination kit ensures reliable performance in outdoor applications, providing excellent sealing for concentric neutral cables.

Product Information

Standard Information

• Brand: 3M
• MPN: 7653-S-4

Technical Specifications

• Type: Cold Shrink
• Length: 12-1/4 inches
• Voltage Rating: 5 to 25/28 kV
• Cable Type: Concentric Neutral
• Insulator Material: Silicone Rubber
• Conductor Size: 300 to 500 kcmil
• BIL Rating: 150 kV
• Application: Outdoor Use
