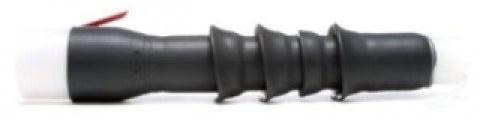

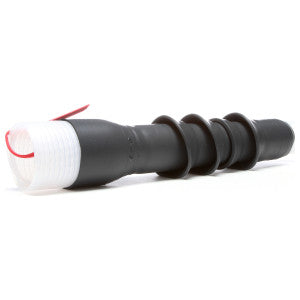

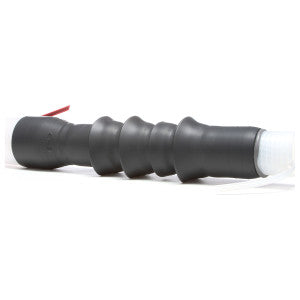

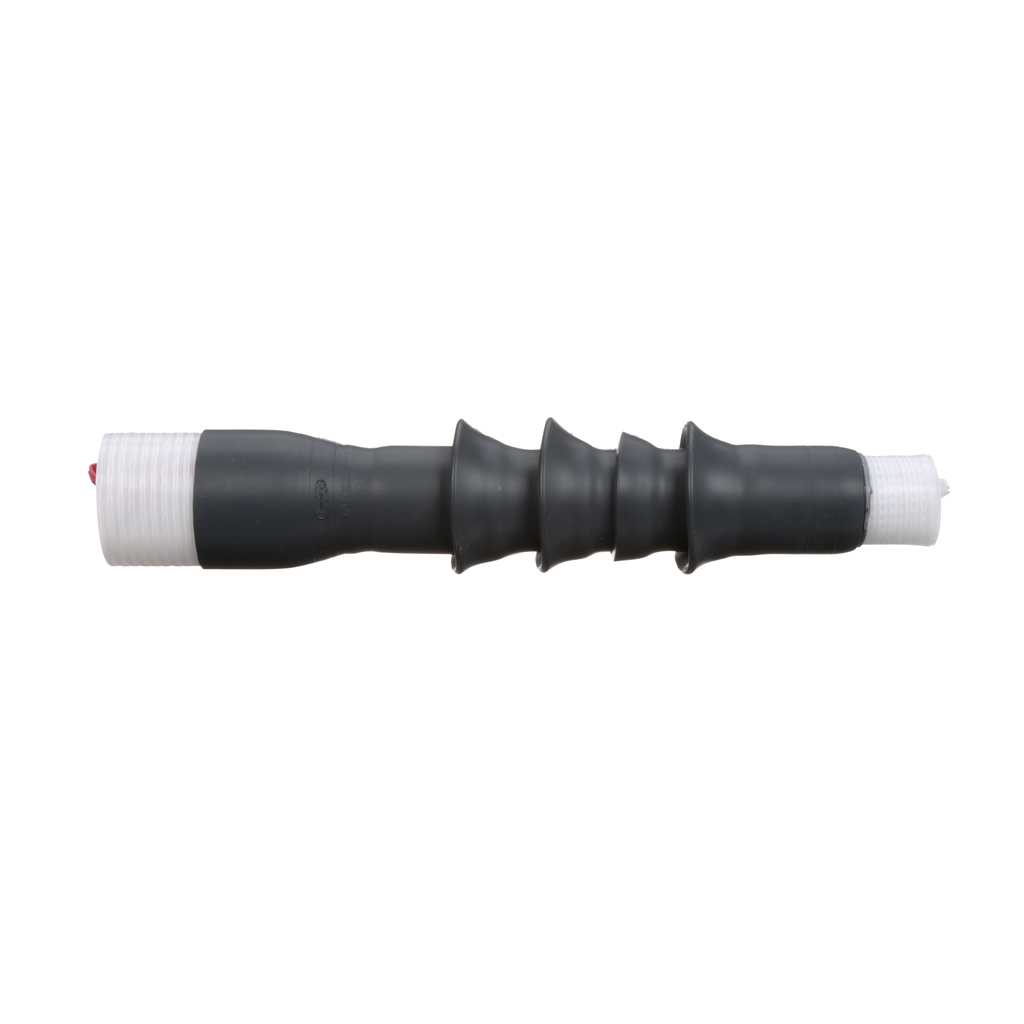

3M 7652-S-4 Cold Shrink QT-III Termination Kit 5 to 25/28 kV 0.64-1.08 Inch

Product Description

3M 7652-S-4 Cold Shrink QT-III Termination Kit is designed for use with concentric neutral and jacketed concentric neutral power cables. This kit has a voltage rating of five to twenty-five/kilovolt with insulation diameters ranging from zero point sixty-four to one point zero-eight inches.

• One-piece design for easy installation without heat tools
• Constructed from high dielectric silicone rubber for durability
• Includes all necessary components for one single-phase termination

Product Highlights

This termination kit provides an effective, void-free seal for outdoor applications. It is ideal for various conductive sizes while ensuring reliable performance.

Product Information

Standard Information

• Brand: 3M
• MPN: 7652-S-4

Technical Specifications

• Voltage: 5 to 25/28 kV
• Cable Type: Concentric Neutral, Jacketed Concentric Neutral
• Conductor Size: 4/0 AWG to 400 KCMIL (5 kV), 3/0 AWG to 300 KCMIL (8.7 kV), 2 to 4/0 AWG (15 kV), 2 to 1/0 AWG (25/28 kV)
• BIL Rating: 150 kV
• Insulator Material: Silicone Rubber
• Material: Rubber
• Contents: (1) Hi-K Silicone Rubber Termination, (2) Mastic Seal Strip, (1) Instruction Sheet
