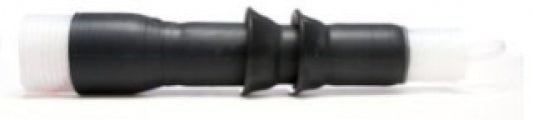

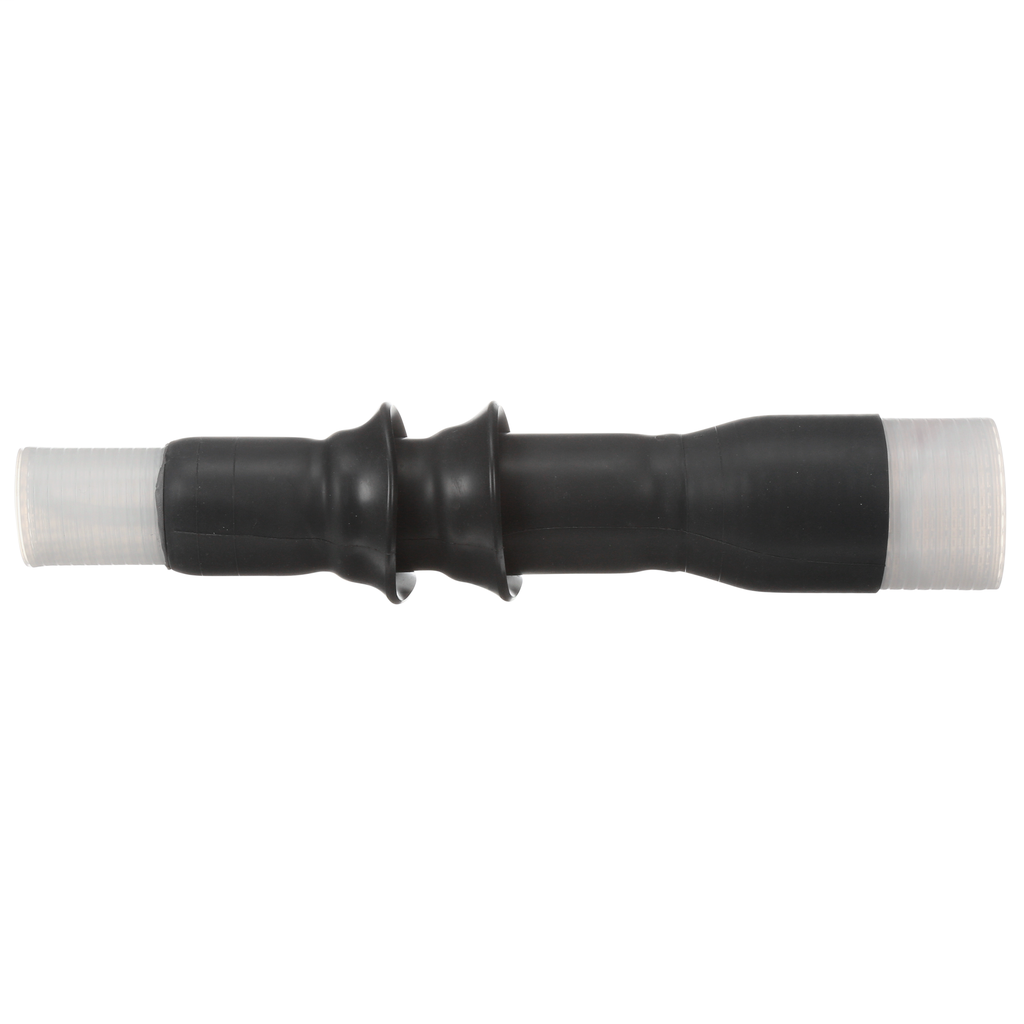

3M 7642-S-2 Cold Shrink QT-III Termination Kit 5-15 Kv

Product Description

The 3M 7642-S-2 Cold Shrink QT-III Termination Kit is designed for easy installation of concentric neutral and jacketed concentric neutral power cables. This kit is suitable for voltages between five kV and fifteen kV. It provides a reliable seal and includes all necessary components for a single phase termination with an insulation outer diameter ranging from zero point sixty-four to one point zero-eight inches.

• Quick installation, no heat or special tools required
• Suitable for various conductor sizes: 4/0 AWG to 400 kcmil (5 kV), 3/0 AWG to 300 kcmil (8.7 kV), and 2 to 4/0 AWG (15 kV)
• Includes mastic seal strip and instruction sheet

Product Highlights

This termination kit ensures a tight, void-free seal, utilizing high dielectric constant materials to manage electric field stress effectively.

Product Information

Standard Information

• Brand: 3M
• Product Type: Cold Shrink Termination Kit

Technical Specifications

• Voltage Rating: 5 to 15 kV
• BIL Rating: 110 kV
• Conductor Size: 4/0 AWG to 400 kcmil (5 kV), 3/0 AWG to 300 kcmil (8.7 kV), 2 to 4/0 AWG (15 kV)
• Number of Terminations: 1
• Application: Outdoor
• Material: Silicone Rubber
• Contents: (1) Hi-K Silicone Rubber Termination, (2) Mastic Seal Strip, (1) Instruction Sheet
• UPC: 05400742011
