3M 7626-T-110 Cold Shrink QT-III Termination Kit 5-15 kV Insulation OD 1.53-2.32

Product Description

The 3M 7626-T-110 Cold Shrink QT-III Termination Kit offers a reliable solution for terminating medium voltage cables. This kit is designed for both indoor and outdoor applications, accommodating conductor sizes ranging from one thousand seven hundred to two thousand kcmil for five kV, one thousand five hundred to two thousand kcmil for eight kV, and one thousand two hundred fifty to two thousand kcmil for fifteen kV.

• Includes three non-skirted, one-piece, three-phase cold shrink terminations.
• Utilizes non-tracking silicone rubber for insulation.
• Designed to provide a void-free seal for tape shield, wire shield, and UniShield power cables.

Product Highlights

This termination kit reduces surface stress with a high dielectric-constant material. It is suitable for various indoor applications and is simple to install, ensuring efficient operation.

Product Information

Standard Information

• Brand: 3M
• MPN: 7626-T-110

Technical Specifications

• Type: QT-III
• Voltage Rating: 5 to 15 kV
• Insulator Material: Silicone Rubber
• Conductor Size Range: 1750 to 2000 kcmil, 1500 to 2000 kcmil, 1250 to 2000 kcmil

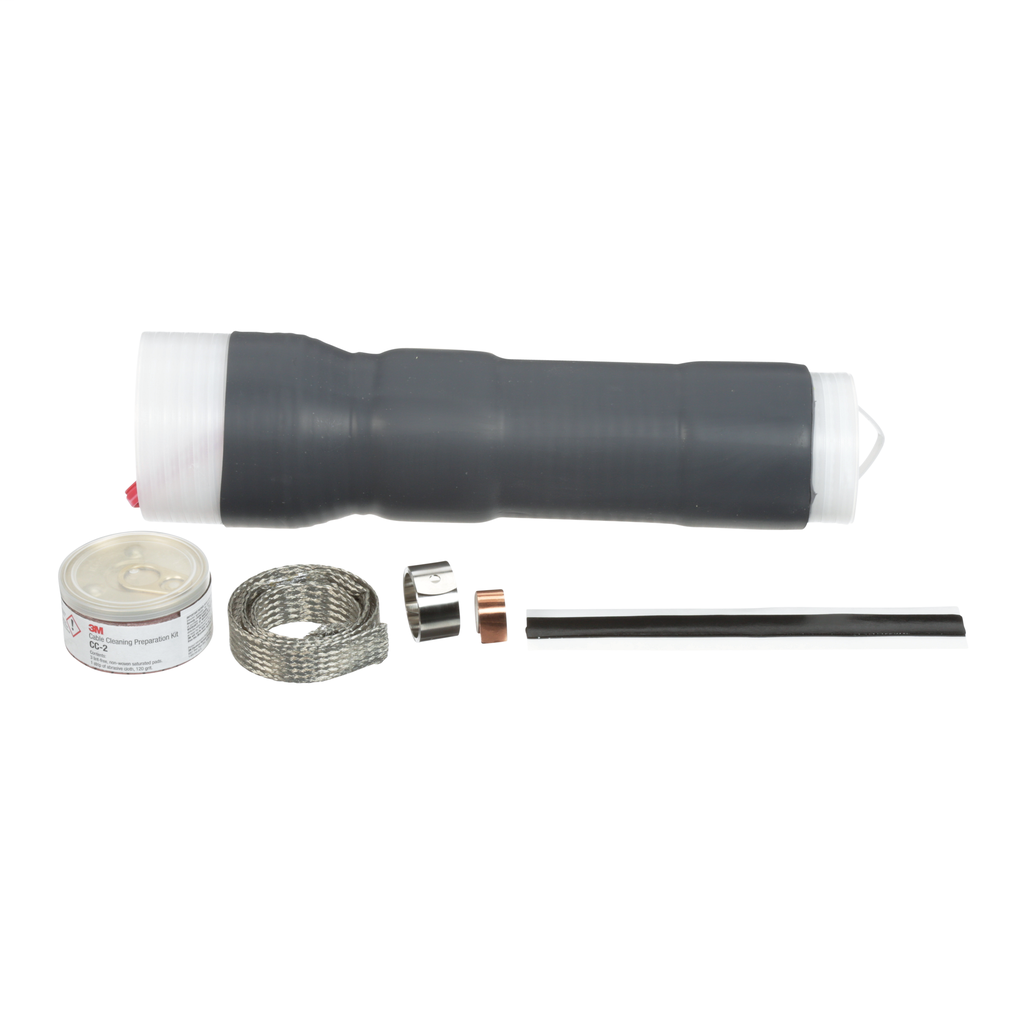

• Contents: (3) Hi-K Silicone Rubber Termination, (3) Pre-Formed Ground Braid, (3) Constant Force Spring, (6) Mastic Seal Strip, (1) Cable Preparation Kit, (3) Copper Foil Shielding Tape Strip, (1) Instruction Sheet
• BIL Rating: 110 kV
• Category: Splicing & Terminating Kits
