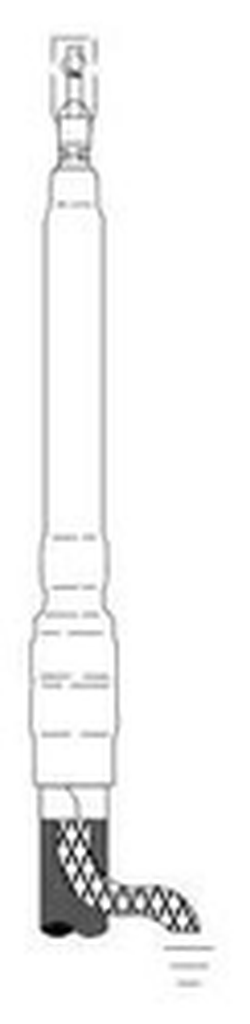

3M 7625-T-110 Cold Shrink QT-III Termination Kit 15 kV (5 Pack)

Product Description

The 3M 7625-T-110 Cold Shrink QT-III Termination Kit is designed for terminating medium voltage cable easily. It has a range of conductor sizes up to fifteen kilovolts. This kit ensures reliability and performance for both indoor and outdoor applications.

• Easy installation process for effective cable termination.
• Hi-K stress control design enhances electrical insulation.
• Compact design allows for efficient use of space.

Product Highlights

This kit is suitable for a variety of cable types and offers a robust solution for essential electrical connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 7625-T-110

Technical Specifications

• Conductor Size Range: 700 to 1500 kcmil (5 kV), 600 to 1250 kcmil (8 kV), 500 to 1000 kcmil (15 kV)
• Voltage Rating: 15 kilovolt
• BIL Rating: 110 kilovolt
• Insulation Diameter Range: 1.05 to 1.8 inches
• Model Type: Cold Shrink
• Material: Silicone rubber
• Installation Length: 12 inches
