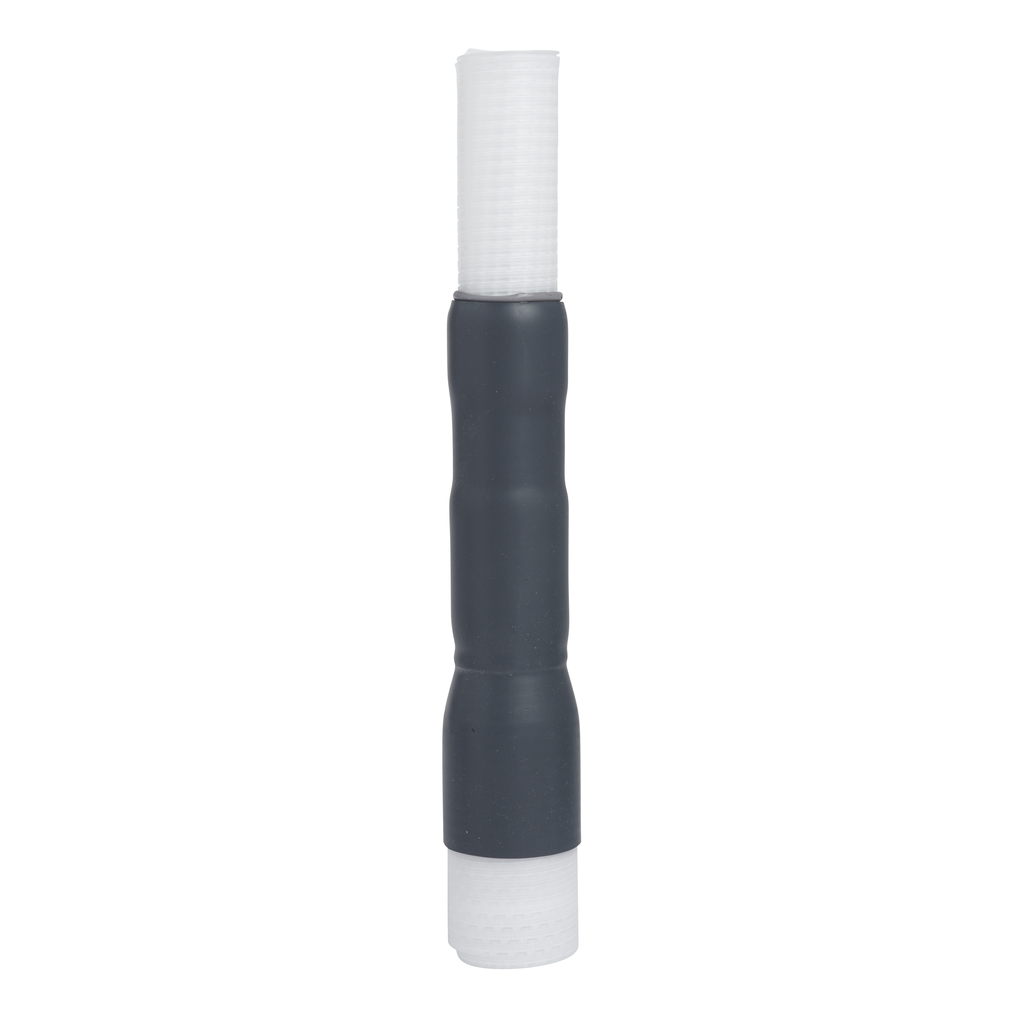

3M 7625-T-110-3-RJS Indoor 3 Conductor Cables Inside Cabinet Termination Kit

Product Description

3M 7625-T-110-3-RJS is an indoor termination kit designed to accommodate three conductor cables in cabinet-mount installations. This kit is compatible with tape shield, wire shield, and UniShield power cables. It features an integrated design intended to make installation easier while ensuring a void-free seal. The high dielectric constant material helps distribute electric field stress effectively, enhancing performance.

• Integrated design for easier installation
• High dielectric constant material for improved electric field stress control
• Suitable for indoor and cabinet-mount applications

Product Highlights

This kit includes a pliable, tight seal for different cable types, ensuring robust performance in indoor environments.

Product Information

Standard Information

• Voltage Rating: 3.3 to 15 kV
• Application: Indoor
• Conductor Size: 300 to 325 Sq MM
• Number of Conductors: 3

Technical Specifications

• Connector Type: Lug (Not Included)
• BIL Rating: 110 kV
• Contents: (3) Hi-K Silicone Rubber Termination, (3) Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, (1) Cable Preparation Kit
• Model: QT-III 7600-T-3-RJS
• Insulator Material: Silicone Rubber
