3M 7624-T-110-3G Indoor 3 Conductor Cables Termination Kit with Ground Wires

Product Description

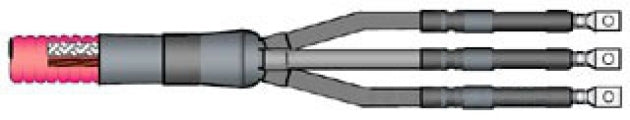

The 3M™ Cold Shrink QT-III 3-Conductor Termination Kit 7624-T-110-3-RJS is a premium medium-voltage cable termination solution engineered for dependable indoor electrical installations. Designed for tape shield, wire shield, and UniShield® power cables, this cold shrink termination kit delivers exceptional insulation performance, reliable stress control, and long-lasting environmental sealing without the need for heat or special installation tools. Its advanced silicone rubber construction provides excellent tracking resistance and hydrophobic properties, making it an ideal choice for industrial facilities, utilities, commercial buildings, substations, and OEM electrical applications.

• Cold shrink technology enables fast, safe, and tool-free installation.
• Designed for 3-conductor medium-voltage cable terminations.
• Compatible with Tape Shield, Wire Shield, and UniShield® power cables.
• Provides superior electrical stress control using high dielectric constant (Hi-K) materials.
• Integrated environmental sealing helps prevent moisture ingress and contamination.
• Premium silicone rubber insulation offers excellent UV resistance, tracking resistance, and long service life.
• Ideal for switchgear, control cabinets, substations, industrial plants, and utility power distribution systems.
• Each kit contains sufficient materials to complete one three-phase cable termination.

Product Highlights

Designed for dependable medium-voltage cable terminations, the 3M QT-III Cold Shrink Kit delivers consistent electrical performance, simplified installation, and durable environmental protection for critical indoor power distribution applications.

Product Information

Standard Information

• Product Type: Cold Shrink Medium Voltage Termination Kit
• Application: Indoor Cable Termination
• Number of Conductors: 3-Conductor
• Brand: 3M
• Series: QT-III Cold Shrink
• Model: 7624-T-110-3-RJS
• MPN: 7624-T-110-3-RJS
• Country of Manufacture: Varies by production batch

Technical Specifications

• Voltage Rating: 5 kV, 8 kV, 15 kV Class
• Installation Type: Cold Shrink (No Heat Required)
• Installation Environment: Indoor
• Compatible Cable Shield Types: Tape Shield, Wire Shield, UniShield®
• Cable Insulation Diameter Range: 0.92 – 1.18 in (23.4 – 30.0 mm)
• Compatible Conductor Size (AEIC): 500–750 kcmil
• Maximum Installed Length: 12 in (305 mm)
• Stress Control: High Dielectric Constant (Hi-K) Stress Control Tube
• Insulation Material: Silicone Rubber
• Seal Type: Built-in Environmental Top Seal

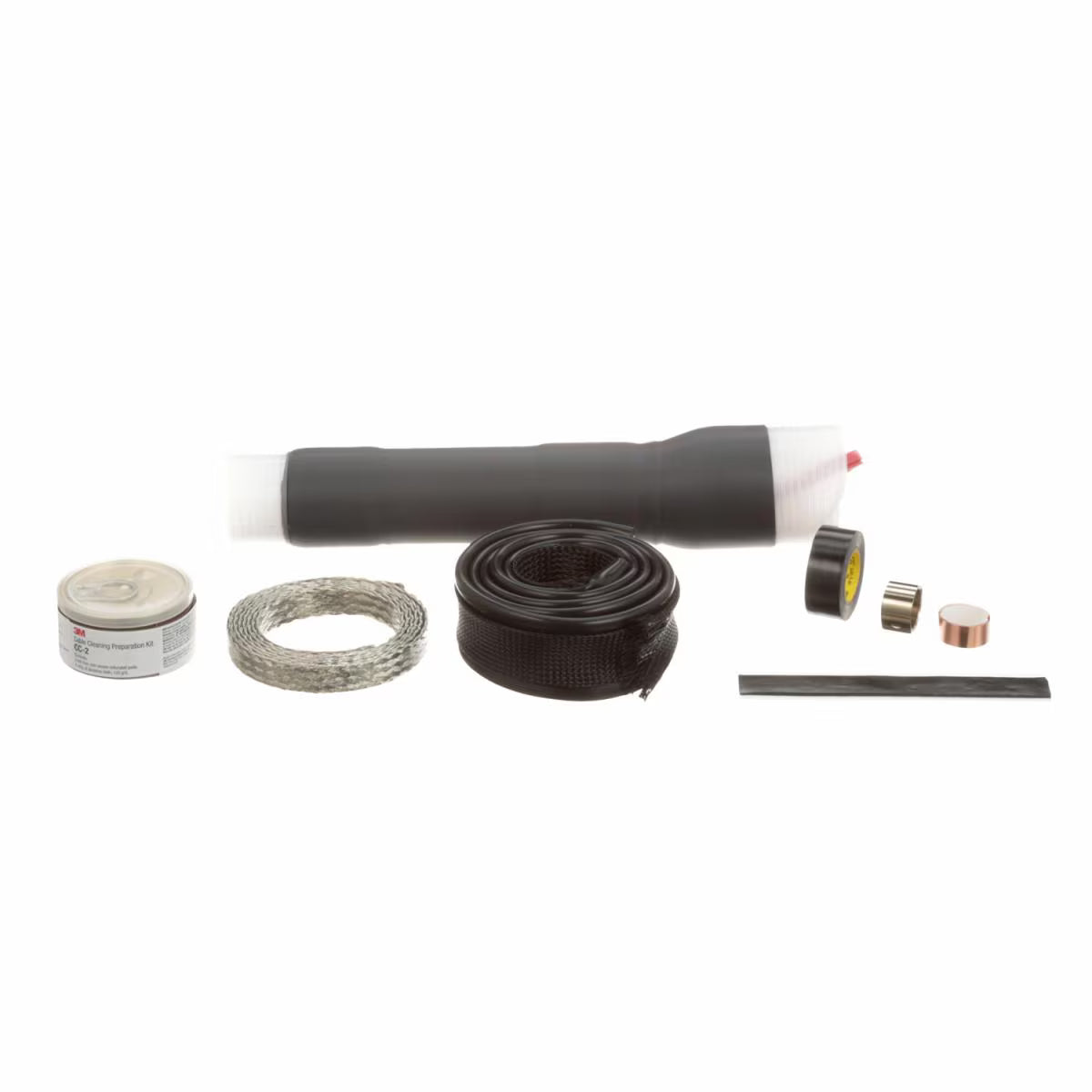

• Kit Contents: Cold Shrink Termination Assemblies, Phase Rejacketing Sleeves, Ground Braid, Constant Force Springs, EMI Copper Foil Shielding Tape, Scotch® Super 33+™ Vinyl Electrical Tape, Cable Cleaning Kit, Scotch® Mastic Strips, Installation Instructions
