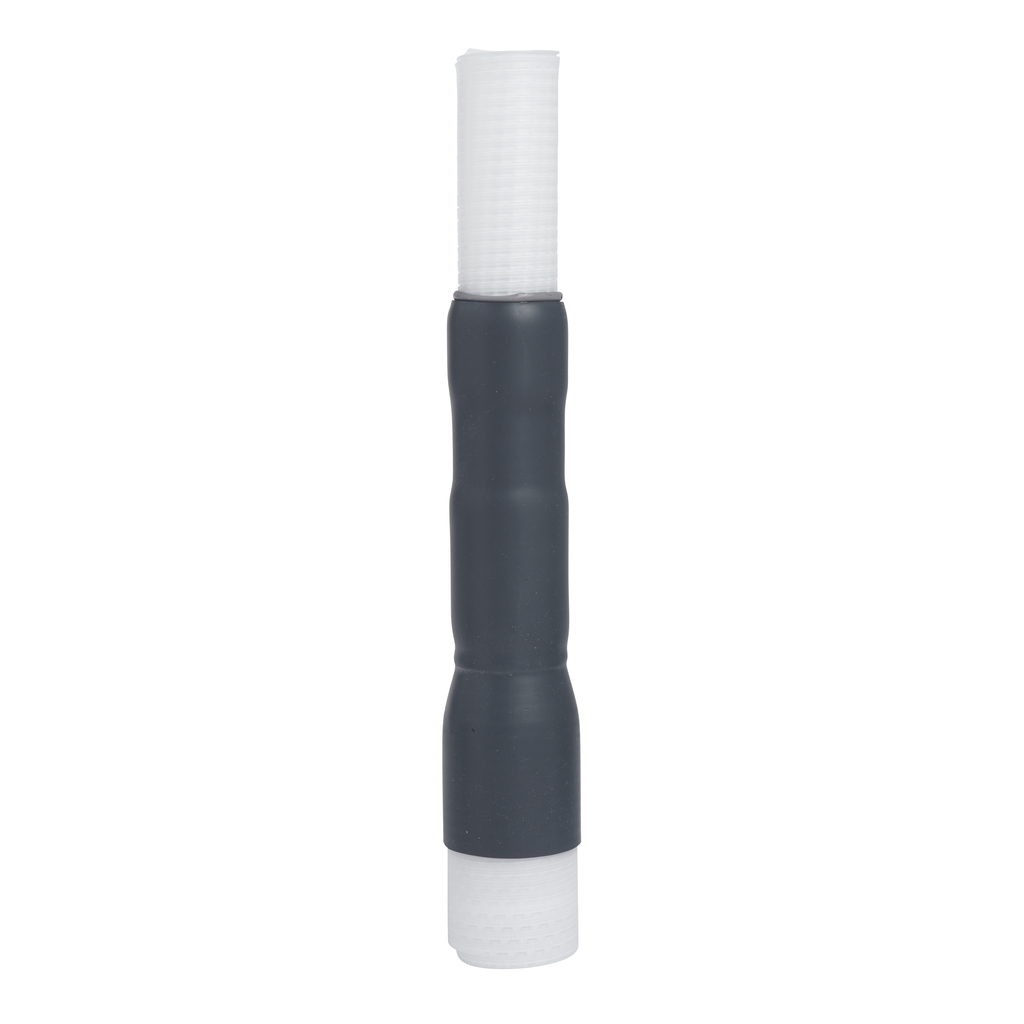

3M 7623-T-95-3-RJS Indoor 3 Conductor Cables Inside Cabinet Termination Kit

Product Description

The 3M 7623-T-95-3-RJS is a Cold Shrink QT-III Indoor Termination Kit designed for three-conductor cable applications. This kit is suitable for indoor and cabinet-mount installations and is made with silicone rubber to provide reliable insulation. It accommodates tape shield, UniShield, and wire shield power cables.

• Provides a void-free seal to tape shield and UniShield power cables.
• High dielectric constant material regulates electric field stress.
• Integrated design simplifies installation process.

Product Highlights

This termination kit is effective for creating durable and robust connections in electrical systems while ensuring safety and compliance with applicable standards.

Product Information

Standard Information

• Brand: 3M
• MPN: 7623-T-95-3-RJS

Technical Specifications

• Applications: Cable Termination
• Voltage Rating: 5 kV
• Conductor Size: 300 kcmil
• Number of Conductors: 3
• Connector Type: Lug (Not Included)
• Insulation Outer Diameter: 0.70 to 0.92 inches
• BIL Rating: 95 kV
• Made in USA: Yes
