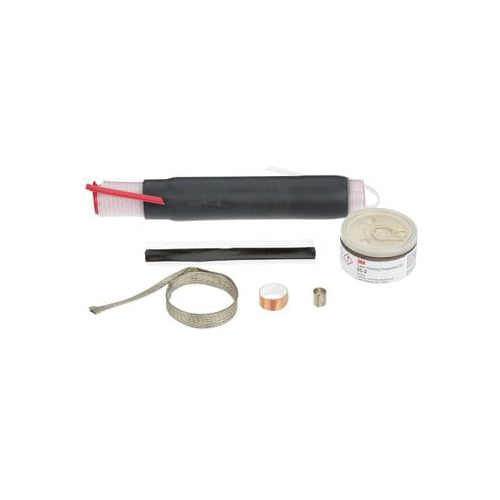

3M 7623-T-110 Cold Shrink QT-III 5-15kV Insulation OD 0.72 - 1.29 3/kit

Product Description

The 3M Cold Shrink QT-III Termination Kit 7623-T-110 is designed for reliable cable terminations in various applications. This kit includes one-piece, non-skirted, silicone rubber terminations that meet IEEE standard 48 Class 1, suitable for indoor and protected outdoor settings. It accommodates solid dielectric shielded power cables rated up to fifteen kilovolts, including tape shield and wire shield constructions.

• Provides a void-free seal for cable connections.
• Includes three non-skirted terminations for effective insulation.
• Suitable for wire sizes ranging from 2/0 AWG to 500 kcmil.

Product Highlights

This kit provides superior insulation and is ideal for various cable types, enhancing the durability and reliability of connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 7623-T-110

Technical Specifications

• Color: Gray
• Voltage Rating: 15 kV
• Material: Silicone
• Dimensions: Inside Diameter 0.72 to 1.29 inches
• Application: Cable Termination
• Includes: (1) Cable Cleaning Kit, (3) Copper Foil Shielding Tape Strips
• Standards: Meets IEEE Standard 48 Class 1
• Suitable For: Tape Over Wire Cable, Wire Shield Cable
