Product Description

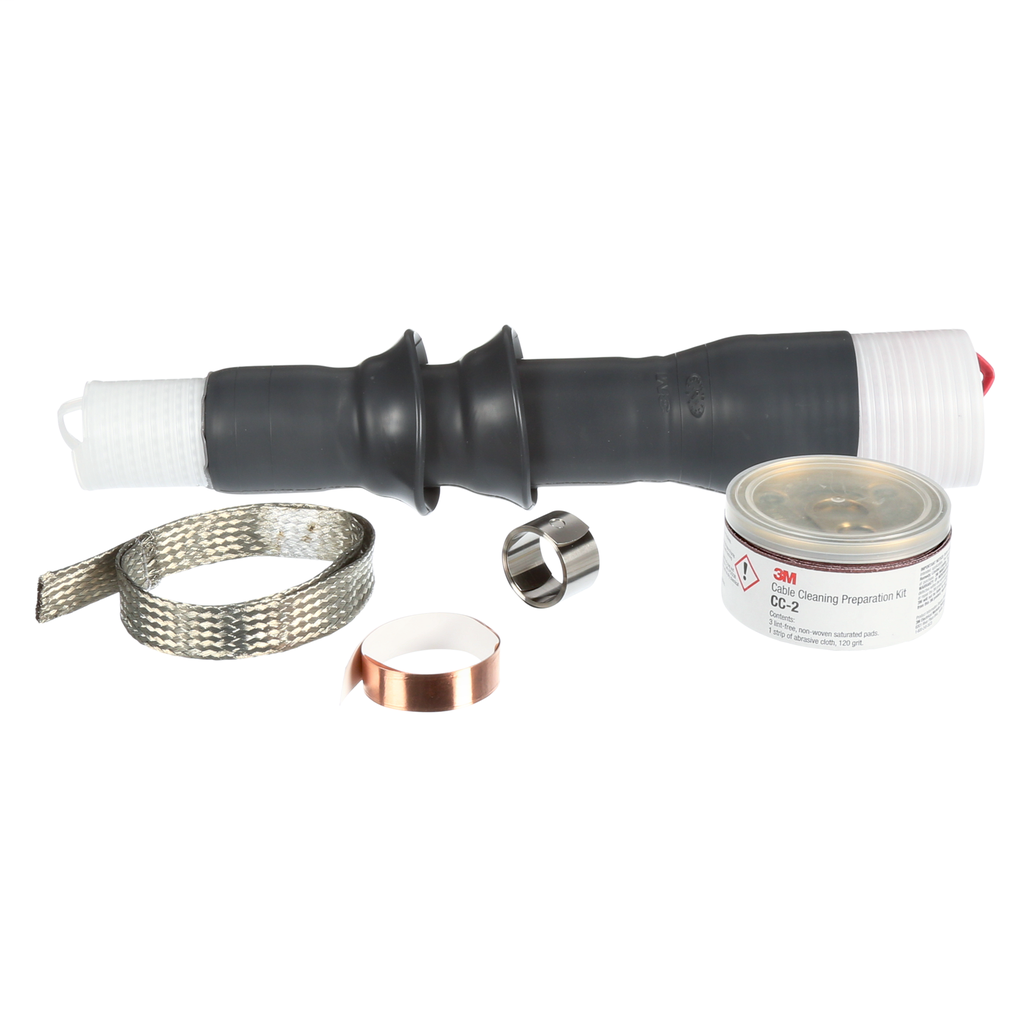

The 3M Cold Shrink QT-III Outdoor Termination Kit, model 7622-S-2, offers reliable solutions for terminating medium voltage cables.

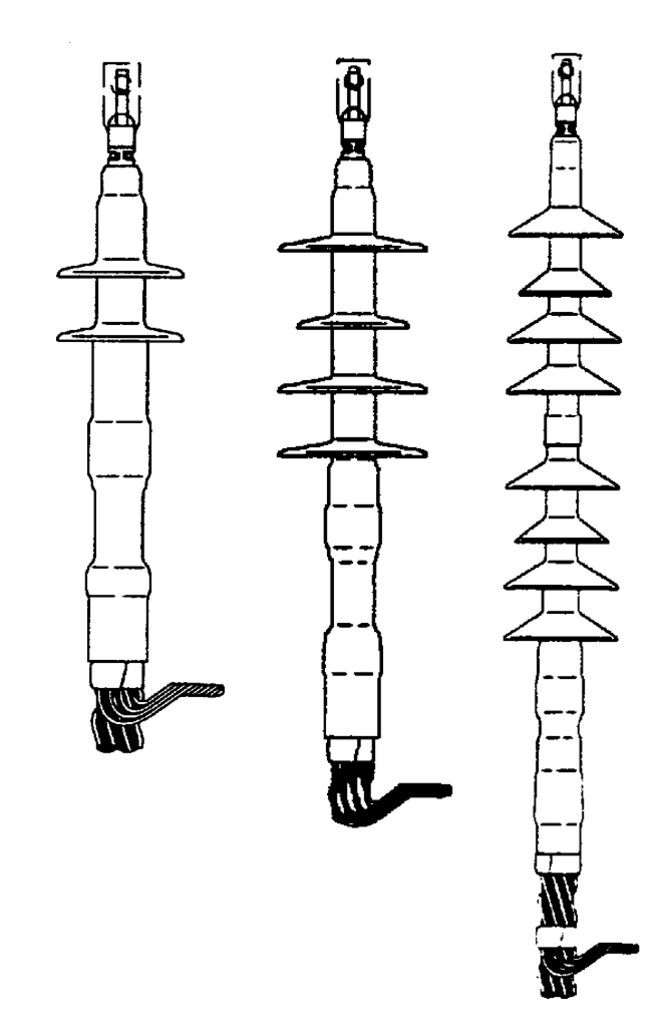

- Includes three skirted terminations
- Suitable for various conductor sizes
- Durable silicone rubber material
Product Highlights
This termination kit is designed for outdoor applications, providing a secure and void-free seal for tape shield, wire shield, and UniShield power cables.
Product Information
Standard Information
Technical Specifications
-
Type: QT-III
-
Voltage: 8 kV
-
Material: Silicone Rubber
-
Conductor Size: 1 AWG-400 kcmil
-
Applications: Outdoor applications
-
Standards/Approvals: IEEE 48 Class I
-
Includes: (3) 3-Phase Skirted Terminations
-
Specifications: 110 kV BIL Rated, 0.64-1.08 in OD Cable Insulation, 9.8 in Maximum Installed Length
