3M 7622-S-2-3G Outdoor 3 Conductor Cables Termination Kit w/ Ground Wires

3M
Brand: 3M
SKU: 7622-S-2-3G
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$2,417.40
$2,417.40
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The 3M 7622-S-2-3G Cold Shrink QT-III Termination Kit is designed for outdoor use with three conductor cables. This kit includes essential components to ensure reliable electrical connections and protects against environmental factors. It provides a tight seal for tape shield, wire shield, and UniShield power cables. The high dielectric constant material withstands voltages ranging from five to fifteen kilovolts.

  • Three-phase skirted termination kit
  • Designed for outdoor applications
  • Compatible with tape shield and UniShield power cables

Product Highlights

This termination kit features an integrated design that simplifies installation while ensuring a secure, void-free seal. It is suitable for use with various conductor sizes and maintains performance even under high voltage conditions.

Product Information

Standard Information

  • Brand: 3M
  • MPN: 7622-S-2-3G

Technical Specifications

  • Voltage Rating: 5 to 15 kV
  • Conductor Size: 4/0 AWG to 350 KCMIL
  • Cable Insulation Outer Diameter: 0.70 to 0.92 inches

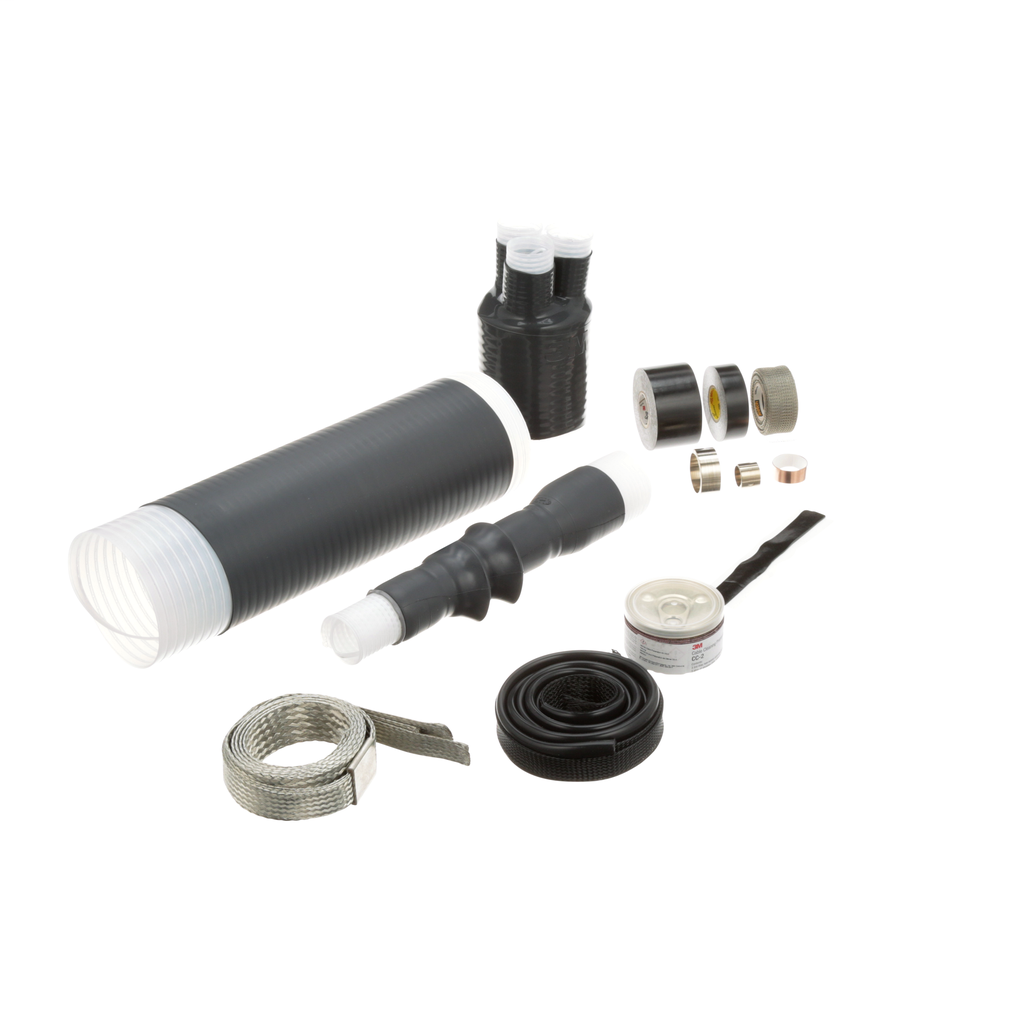

  • Contents: Includes (3) Hi-K Silicone Rubber Terminations, (1) Silicone Rubber Breakout Boot, (3) Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, (1) Silicone Rubber Jacket Seal Assembly, (4) Constant Force Springs, (1) Pre-Formed Ground Braid, (8) Mastic Sealing Strips
  • Applications: Outdoor
  • Number of Conductors: 3
  • BIL Rating: 110 kV
