Product Description

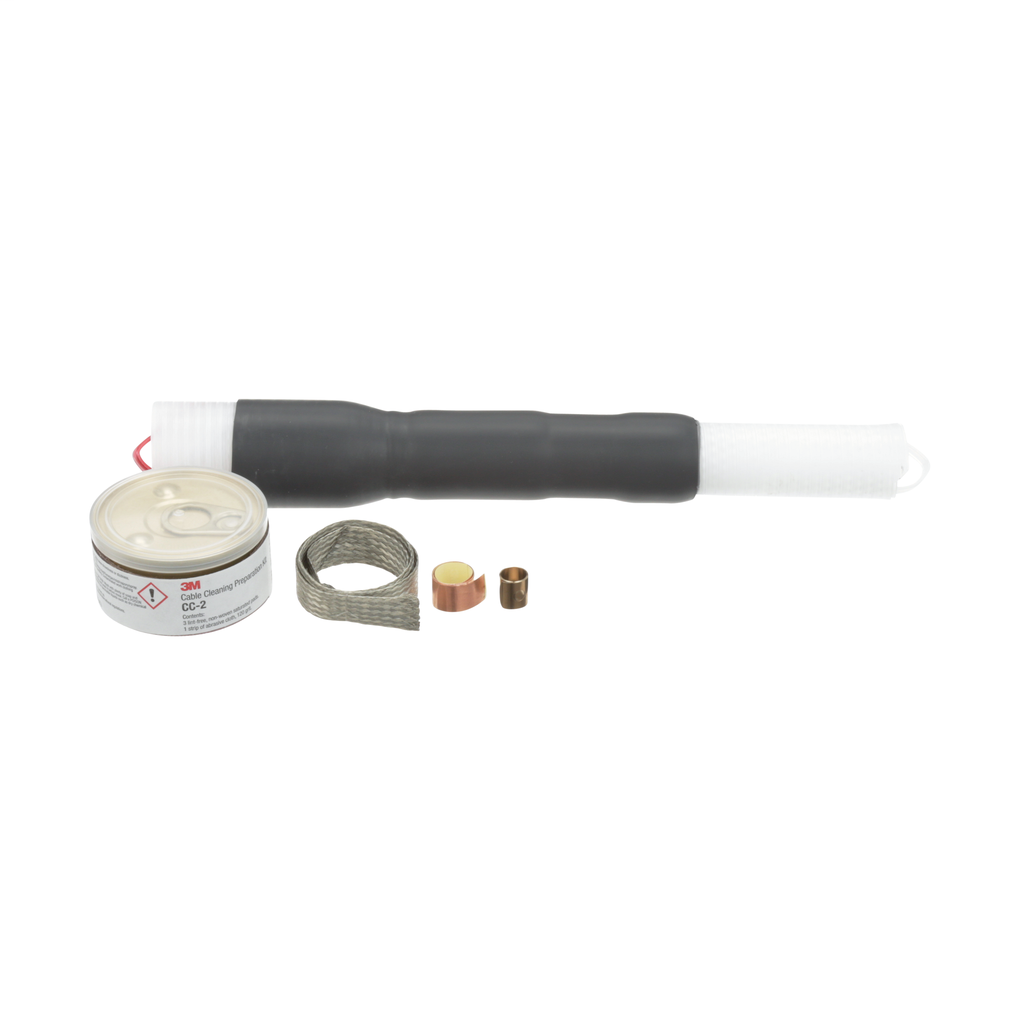

3M 7621-T-95 Cold Shrink QT-III Termination Kit is a one-piece silicone rubber termination. It is designed for applications with limited space. It is suitable for varying installations, including motors and transformers. The kit includes three non-skirted terminations made from high dielectric material.

  • Conductor size range for 5 kV: 2 to 3/0 AWG and for 8 kV: 4 to 2/0 AWG
  • Provides void-free sealing for tape shield and wire shield cables
  • Ideal for indoor applications

Product Highlights

This termination kit meets IEEE 48 Class 1 standards and is suitable for indoor and weather-protected settings. Its compact design helps reduce the need for extra box installations in tight spaces.

Product Information

Standard Information

  • Brand: 3M
  • Catalog Number: 7621-T-95

Technical Specifications

  • Type: Cold Shrink QT-III
  • Voltage Rating: 8 kV
  • Material: Silicone Rubber
  • Conductor Size: 2 to 3/0 AWG (5 kV), 4 to 2/0 AWG (8 kV)
  • BIL Rating: 95 Kilovolt
  • Insulation Outer Diameter: 0.44 to 0.89 inches
  • Installation Length: Maximum 8.5 inches
  • Application: Indoor
