3M 7621-T-95-3G Cold Shrink QT-III 3/C Termination Kit 5-8.7 kV

Product Description

3M Cold Shrink QT-III 7621-T-95-3G Termination Kit is designed for indoor use and provides a reliable solution for terminating power cables. This kit supports voltages from five to eight point seven kilovolts and is suitable for three conductors with a wire size of two to three-aught AWG. It includes a non-skirted, three-phase termination that ensures a secure and pliable seal for tape shield, wire shield, and UniShield power cables. The silicone rubber compounds maintain high durability and withstand electrical stress effectively.

• Includes three silicone rubber terminations.
• Compatible with tape shield, wire shield, and UniShield cables.
• Voltage withstand capability ranges from five to thirty-five kV.

Product Highlights

This termination kit is built to provide lasting protection against environmental factors while ensuring the integrity of electrical systems.

Product Information

Standard Information

• Brand: 3M
• Model: 7600-T-3G

Technical Specifications

• Voltage Rating: 5 to 8.7 kV
• Conductor Size: 2 to 3/0 AWG
• BIL Rating: 95 kV
• Cable Insulation Outer Diameter: 0.5 to 0.7 inches
• Applications: Indoor

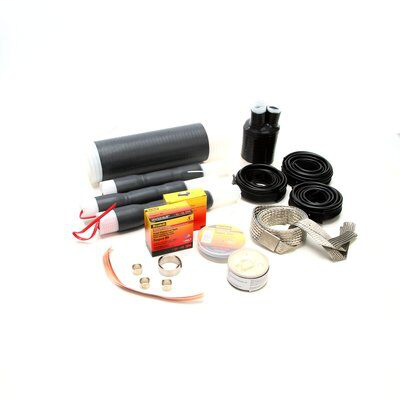

• Contents: (3) Hi-K Silicone Rubber Termination, (1) Silicone Rubber Breakout Boot, (3) Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, (4) Constant Force Spring, (1) Pre-Formed Ground Braid, (8) Mastic Sealing Strip, (3) Copper Foil Shielding Tape
• Number of Conductors: 3
