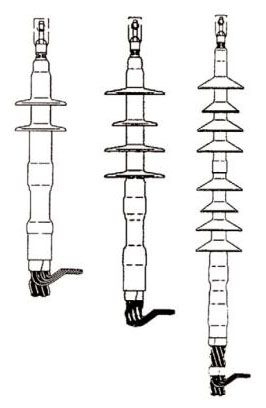

3M 7621-S-2 Cold Shrink QT-III Termination Kit 5-8.7 kV Insulation OD 0.44-0.89 2 Skirt

Product Description

The 3M Cold Shrink QT-III Termination Kit, model 7621-S-2, is designed for terminating tape shield, UniShield, and wire shield power cables. This kit creates a secure and moisture-resistant seal. It is suitable for outdoor applications and can handle voltages from five to eight point seven kilovolts.

• Includes three skirted silicone rubber terminations.
• Compatible with solid dielectric shielded power cables rated five to thirty-five kilovolts.
• Designed for conductor sizes from two to three aught AWG for five kilovolt applications and four to two aught AWG for eight kilovolt applications.

Product Highlights

Offers reliable outdoor performance with a durable seal against weather conditions.

Product Information

Standard Information

• Brand: 3M
• MPN: 7621-S-2

Technical Specifications

• Voltage Rating: 5 to 8.7 kV
• Insulation Diameter Range: 0.44 to 0.89 inches
• Conductor Size: 2 to 3/0 AWG (5 kV), 4 to 2/0 AWG (8 kV)
• Number of Terminations: 3
• Length: 10.5 inches installed
• Material: Silicone rubber
• Applications: Outdoor
• Contents: 3 Hi-K silicone rubber terminations, 3 constant force springs, pre-formed ground braid, mastic seal strips, copper foil shielding tape strip, cable preparation kit, instruction sheet
