3M 7620-S-2 Cold Shrink QT-III Termination Kit 5 Kv-8.7 Kv 2 Skirt

Product Description

3M Cold Shrink QT-III Termination Kit with MPN 7620-S-2 is designed for effective cable termination applications. This kit includes three skirted terminations, tailored for tape shield, wire shield, and UniShield power cables. The construction ensures a tight and pliable seal that can withstand voltage levels from five to thirty-five kilovolts.

• Includes three 1-piece, 3-phase skirted terminations
• Durable silicone rubber insulation reduces leakage currents
• Appropriate for outdoor applications

Product Highlights

This termination kit is built to last with high dielectric material, ensuring reliable performance in various conditions.

Product Information

Standard Information

• Type: Cold Shrink
• Manufacturer: 3M

Technical Specifications

• Voltage Rating: 5 to 8.7 Kilovolt
• Cable Types: Tape Shield, Wire Shield, UniShield
• Conductor Size: 8 AWG to 4 AWG
• Insulator Material: Silicone Rubber
• BIL Rating: 95 Kilovolt
• Installed Length: 10.5 inches

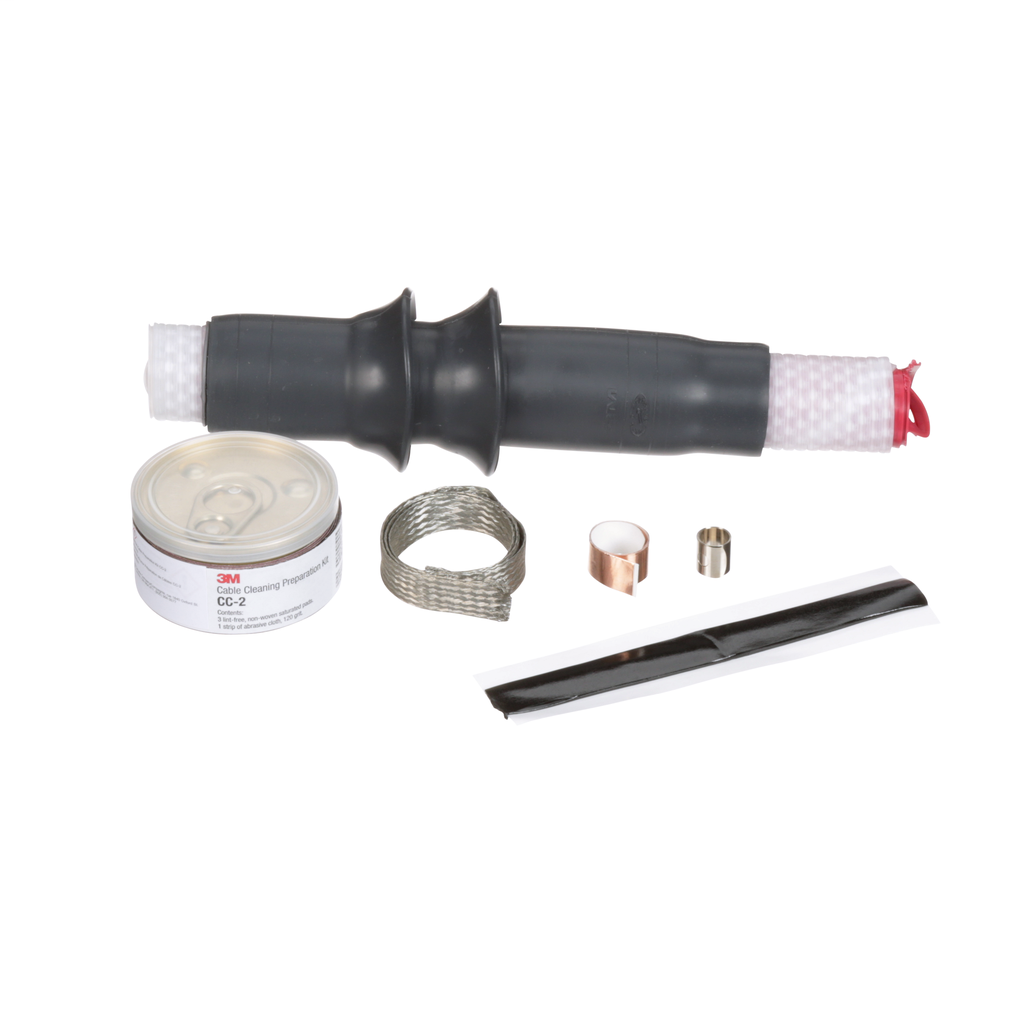

• Contents: (3) Hi-K Silicone Rubber Termination, (3) Constant Force Spring, (3) Pre-Formed Ground Braid, (6) Mastic Seal Strip, (1/2) Copper Foil Shielding Tape Strip, (1) Cable Preparation Kit
