3M 72-N5 scotchcast inline splice kit

Product Description

The 3M 72-N5 Scotchcast green rubber non re-enterable resin splicing kit is sold 1 per case. Designed to be compatible with 10 to 22 AWG wire sizes. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig ins.

• Rigid body splice for joining signal and control cables
• Fits unshielded construction of plastic or rubber-jacketed cables
• Designed for inline splicing of underground systems, joining of cable reel ends, direct burial applications and repair of cable failures

Product Highlights

The 3M Scotchcast 72-N5 splice kit is rated for 1 kV applications. The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 72-N5
• Country of Origin: USA

Technical Specifications

• Brand: 3M
• Trade Name: Scotchcast
• 3M Number: 72-N5
• Compatible Wire Sizes: 22 to 10 AWG
• Splice Material: Rubber
• Voltage Rating: 1 kV
• Maximum Cable Insulation Outer Diameter: 2.25 in
• Minimum Cable Insulation Outer Diameter: 1.25 in
• Maximum Connector Length: 20 5/16 in

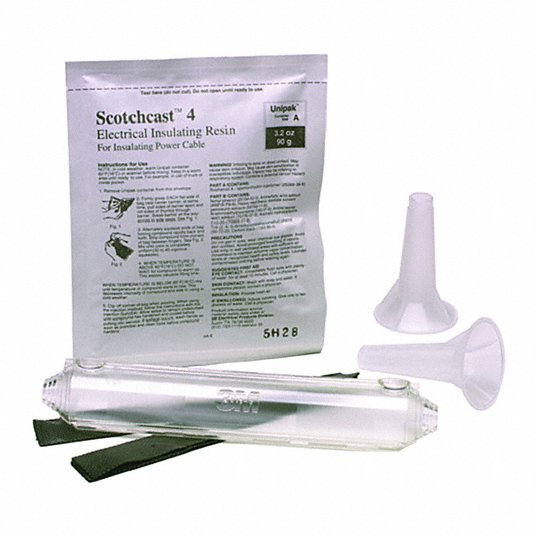

• Includes: (2) x Pour Spout for Kits ; 2104 - Sealing Compound ; 23 - Splicing Tape ; 72-N2 - Inline Splice Kit ; 72-N3 - Inline Splice Kit ; 72-N5 - Inline Splice Kit ; 72-N6 - Inline Splice Kit ; Instruction Booklet ; Jumper Wire ; Non-Conductive Abrasive Wrap ; Top Cap Cover ; Two-Part Translucent Mold Body
• Standards Met: ASTM D 150 ; ASTM D 412 ; ASTM G 21
• Package Quantity: 1 per case
• Case Quantity: 1 per case
• Maximum Wire Size: 10 AWG
• Maximum Conductor Leg Diameter: 22 AWG
• Minimum Conductor Leg Diameter: 22 AWG
• Product Type: Resin Splice
• Alternate Product Number: 7000005910-31180
• Sub-brand: Scotchcast(TM)
• Body Material: Polypropylene
• Compatible with Product Type: Signal and Control Cables
• Container Type: Closed Mixing Pouch
• Display Qty: 1
• Display Sell UOM: EA
• For Wire Type: Signal and Control Cables
• Insulation Material: EPDM Rubber
• Kit Includes: Bonding Jumper Wire with Clips, Nonconductive Abrasive Cloth, Resin Compound, Rubber-Splicing Tape 23, Top Cap Cover, Two-Part Trans Mold Body
• Material: Resin with Plastic EPDM Rubber Mold
• Maximum Operating Temperature: 194 °F
• Maximum Voltage: 1000 V
• Number of Pieces: 6
• Number of Splices: 1
• Overall Length: 20.3 in
• Resin Material: Resin
• Resistance Properties: Moisture-Resistant
• Tensile Strength: 600 psi
• Termination Style: Splice
• UNSPSC: 39121718
