3M 72-N4 Non-Re-Enterable Resin Splice Kit 1 kV 1 to 2 in Dia Cable

Product Description

The 3M 72-N4 is a non-re-enterable resin splice kit designed for joining control and signal cables. It supports cables with a diameter from one inch to two inches, with a conductor size of twenty-two AWG. This splice kit is rated for one kilovolt, making it suitable for various electrical applications.

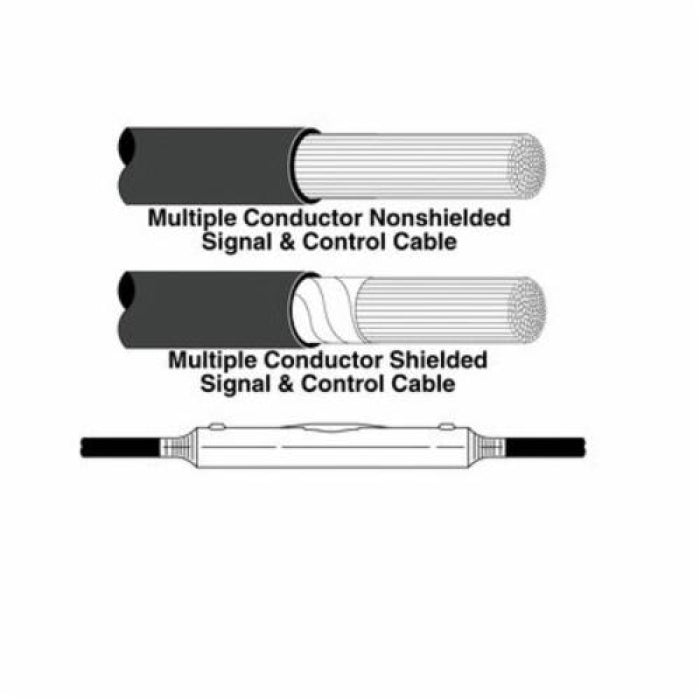

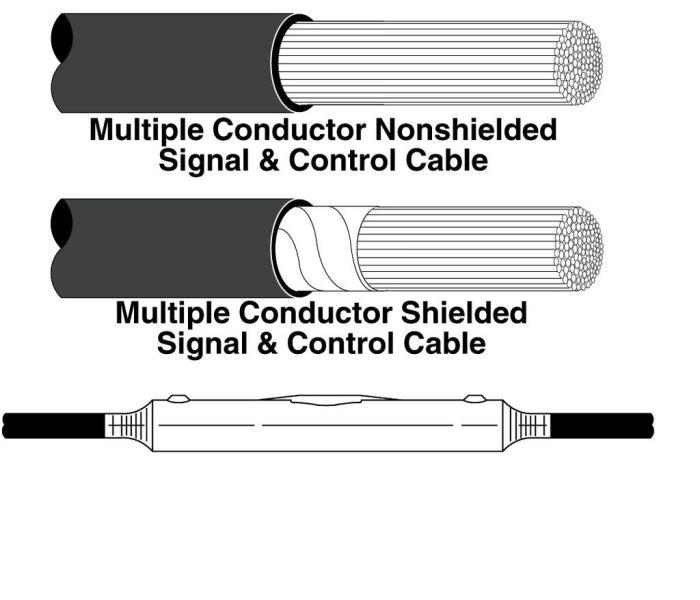

• Compatibility with shielded and non-shielded cables
• Includes all necessary materials for splicing
• Rated for direct burial applications

Product Highlights

This splice kit offers a reliable solution for underground splicing tasks, ensuring a strong electrical connection.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: 3M Electrical Products

Technical Specifications

• MPN: 72-N4
• Voltage Rating: 1 kV
• Cable Diameter: 1 to 2 inches
• Conductor Size: 22 AWG
• Splice Length: 15-5/8 inches
• Operating Temperature: 90 to 130 °C
• Connector Type: In-Line
• Includes: Translucent mold body, insulating compound, Scotch rubber splicing tape, non-conductive abrasive cloth, jumper wire, and instructions.
