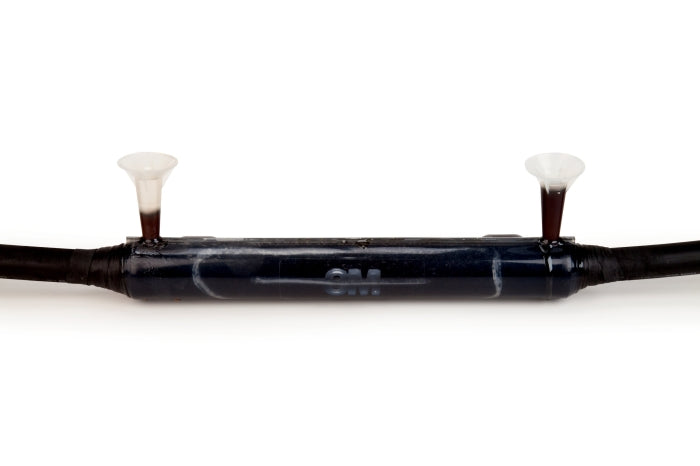

3M 72-N3 Non-Re-Enterable Resin Splice Kit 1 kV 5/8 to 1-1/2 in Dia Cable

Product Description

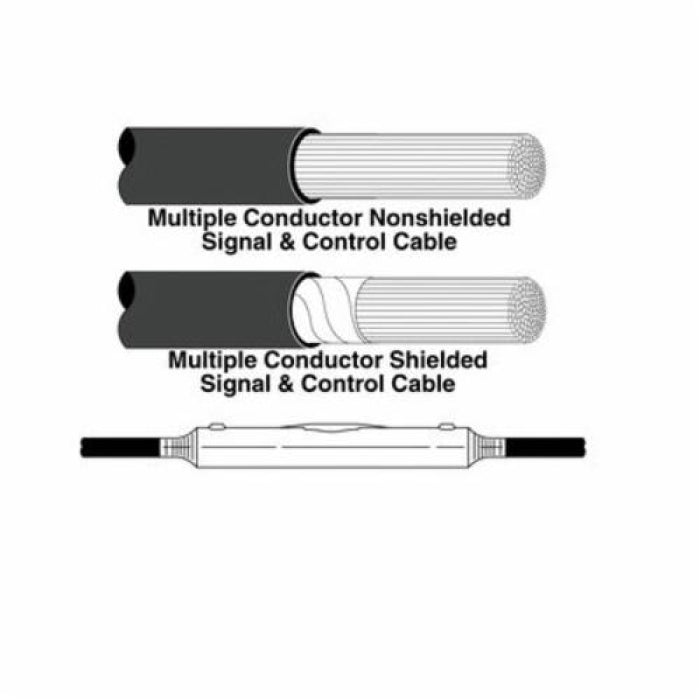

3M 72-N3 Non-Re-Enterable Resin Splice Kit is designed for splicing control and non-shielded cables. This kit works with cables ranging from five eighths inch to one and a half inches in diameter. The splice is rated for one kilovolt and is suitable for use with conductors of twenty-two AWG.

• Non-Re-Enterable Design
• Rated for One Kilovolt
• Splice Length of fifteen point four three eight inches

Product Highlights

This splice kit includes all materials necessary for creating a durable splice that protects against environmental factors. Ideal for underground applications, it is built to ensure long-lasting connections.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 72-N3

Technical Specifications

• Conductor Size: 22 AWG
• Cable Diameter: 5/8 inches to 1-1/2 inches
• Voltage Rating: 1 kV
• Body Length: 15.438 inches
• Tensile Strength: 600 psi
• Temperature Rating: 90 to 130 degrees Celsius
• Insulation Type: Resin
• Application: Direct burial and splicing of cable reel ends
