3M 72-N1 Non-Re-Enterable Resin Splice Kit 1 kV 1/4 to 5/8 in Dia Cable 05400710623

Product Description

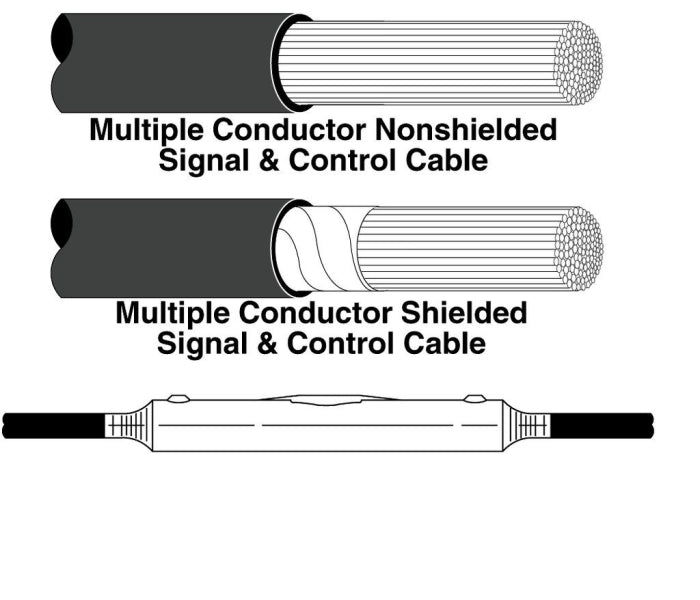

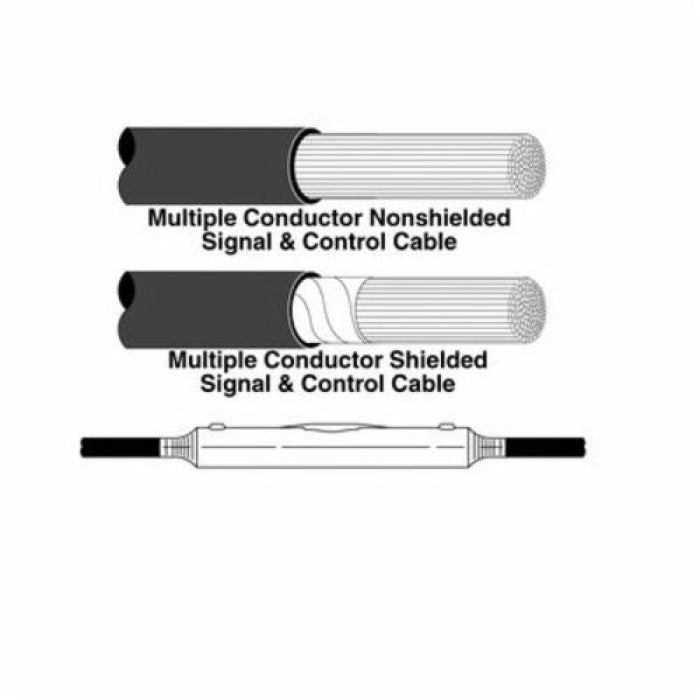

The 3M 72-N1 Non-Re-Enterable Resin Splice Kit is designed to join both shielded and non-shielded control and signal cables. It features a rigid body construction suitable for underground systems and direct burial applications.

• Compatible with cables between one quarter to five eighths inches in diameter
• Rated for use up to one kilovolt
• Includes all necessary materials for splicing and insulation

Product Highlights

The kit is ideal for splicing applications, providing reliable performance for direct burial and other demanding environments.

Product Information

Standard Information

• Brand: 3M
• MPN: 72-N1

Technical Specifications

• Voltage Rating: 1 kV
• Cable Type: Multiple Conductor Unshielded Power Cable
• Conductor Size: 22 AWG
• Cable Insulation Outer Diameter: 0.25 to 0.625 inches
• Splice Length: 7-1/8 inches
• Temperature Rating: 90 to 130 degrees Celsius
• Contents: Electrical insulating compound, rubber splicing tape, abrasive cloth, pour spouts, bonding wire with clip
• Includes: Mold body for sealing and insulation
