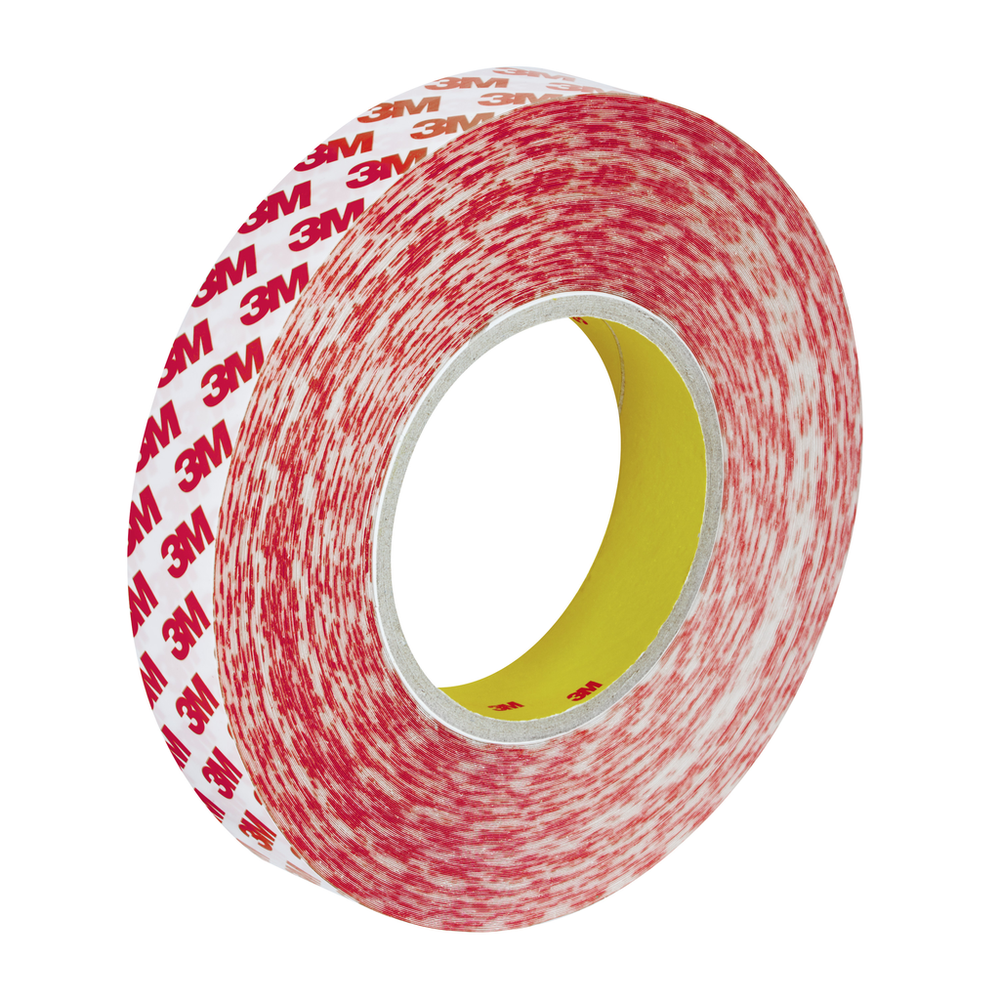

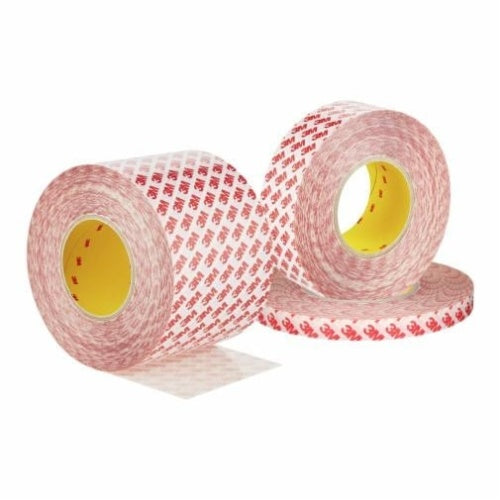

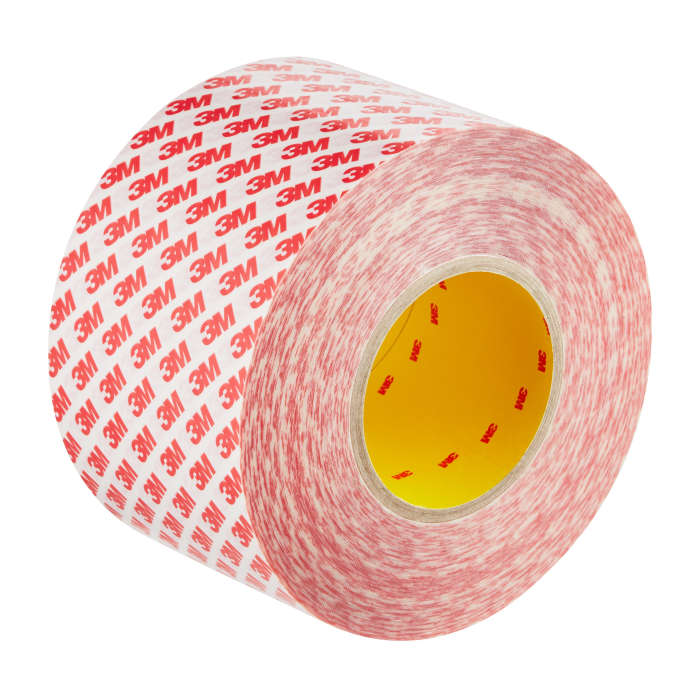

3M 7100369922 Double Coated Tape Gpt-020 25 mm x 50 m (10 Roll/Case)

Product Description

The 3M 7100369922 Double Coated Tape Gpt-020 is an 8 mil (200 micron) double-coated, pressure-sensitive adhesive tape with a clear polyester (PET) carrier and white polycoated kraft (PCK) liner. It uses a modified acrylic adhesive, conforms to high- and low-surface-energy materials such as stainless steel, acrylic, polycarbonate and aluminum, and is rated short-term to 149 °C (300 °F) and long-term to 93 °C (200 °F). This listing is 25 mm x 50 m rolls, packaged 10 rolls per case.

• 8 mil (200 micron) total thickness; clear PET carrier with white 58# PCK liner
• Modified acrylic adhesive, double-sided; adhesion strength 12.3 N/cm
• Temperature rating short-term 149 °C (300 °F) and long-term 93 °C (200 °F); suitable for indoor and outdoor bonding

Product Highlights

200 µm double-coated PET tape with modified acrylic adhesive; 25 mm x 50 m rolls, 10-roll case; bonds high- and low-energy substrates.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100369922
• Country of Origin: Poland

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: 7100369922
• Model: GPT-020
• Product Name: Double Coated Tape GPT-020
• Material (Carrier): Polyester (PET)
• Liner: 58# Polycoated Kraft Paper (PCK), white
• Adhesive Type: Modified acrylic
• Number of Adhesive Sides: Double-sided
• Total Thickness (without liner): 8 mil (0.2 mm / 200 micron)
• Backing (Carrier) Thickness: 0.47 mil (0.012 mm)
• Face Side Adhesive Thickness: 3.75 mil (0.095 mm)
• Back Side Adhesive Thickness: 3.75 mil (0.095 mm)
• Primary Liner Thickness: 3.9 mil (0.1 mm)
• Width: 25 mm (1.0 in)
• Length: 50 m (54.7 yd)
• Core Size: 3 in
• Units per Case: 10
• Adhesion Strength: 12.3 N/cm
• Maximum Operating Temperature (Short-term): 149 °C (300 °F)
• Maximum Operating Temperature (Long-term): 93 °C (200 °F)
• Minimum Operating Temperature: -40 °C (-40 °F)
• Available Widths: 9 mm to 1540 mm
• Available Lengths: 50 m standard; 500 m for 1540 mm width
• Application: Assembling; Attaching; Bonding; Mounting; Laminating; Splicing; Tabbing
• Indoor/Outdoor: Indoor/Outdoor
• Product Category: Adhesive Transfer Tapes & Double Coated Tapes
• Country of Origin: Poland
• Total Tape Thickness (Imperial): 8.0 mil
• Total Tape Thickness (Metric): 0.2 mm
