Product Description

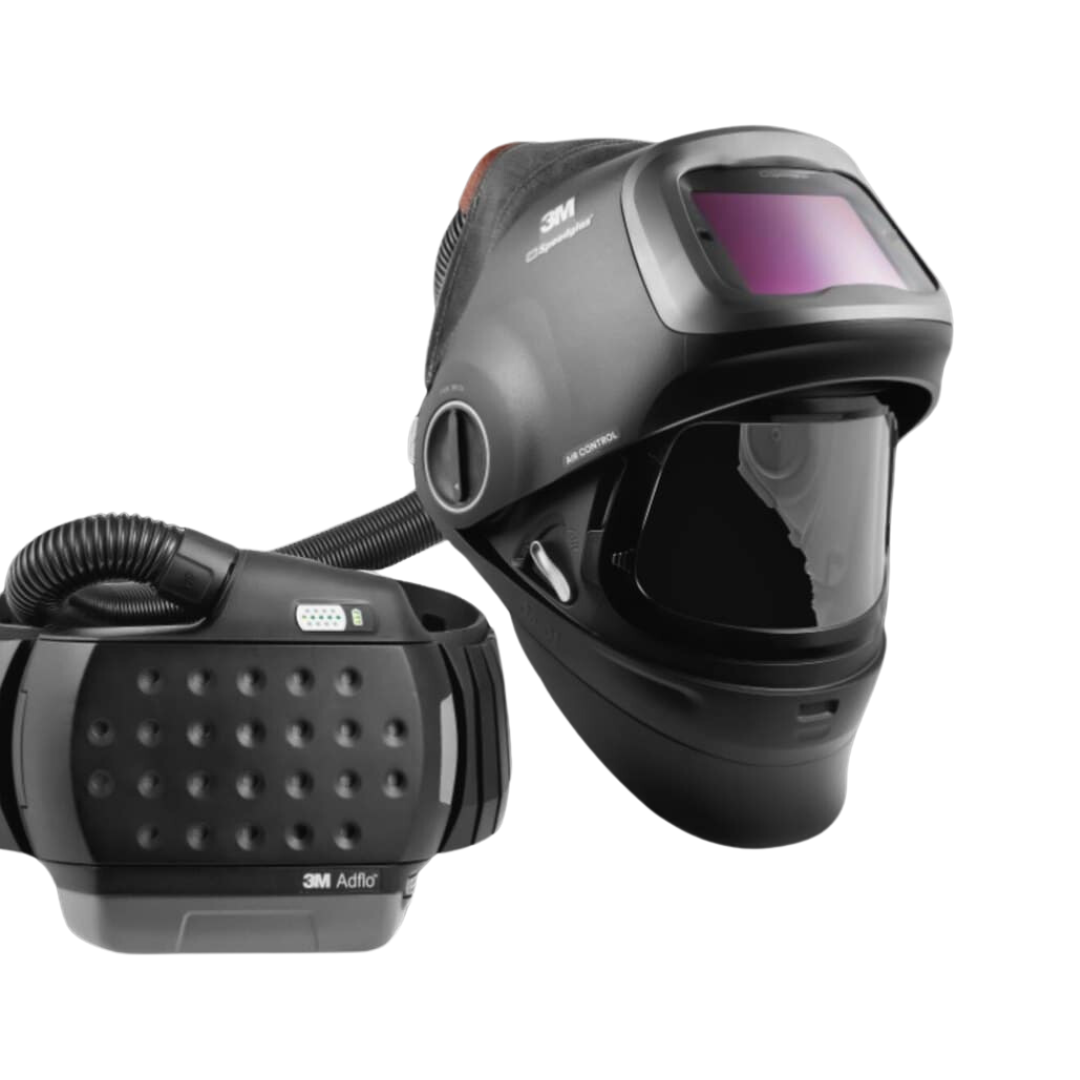

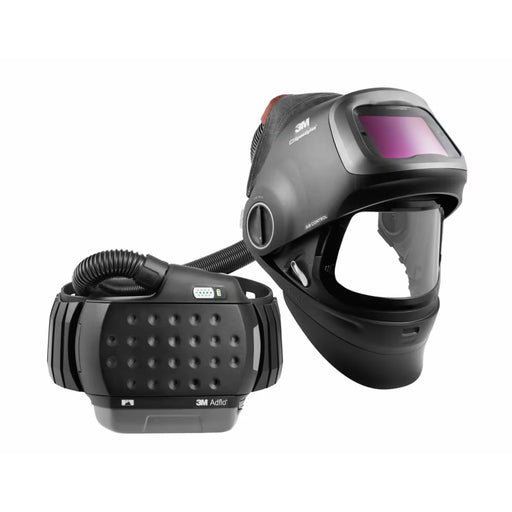

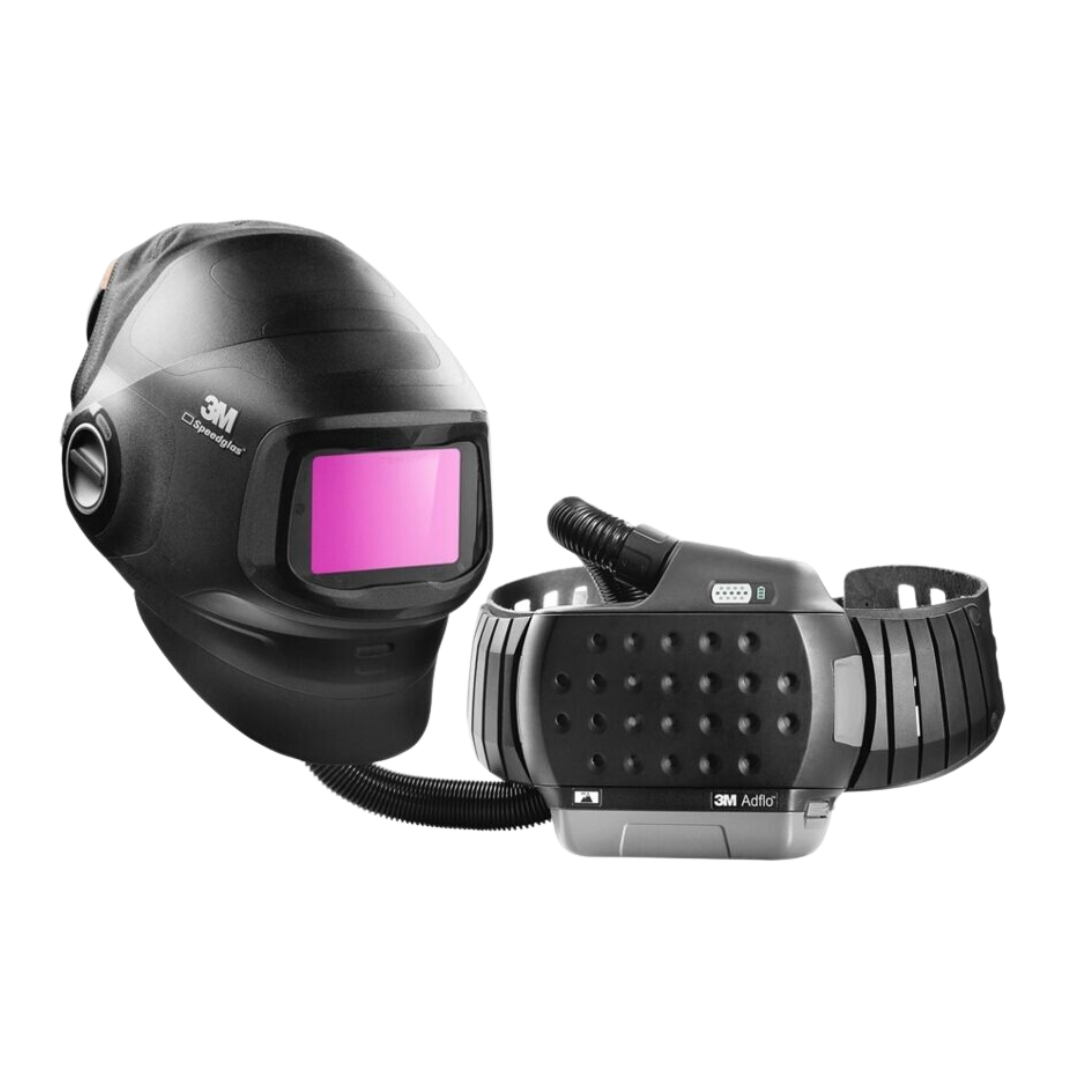

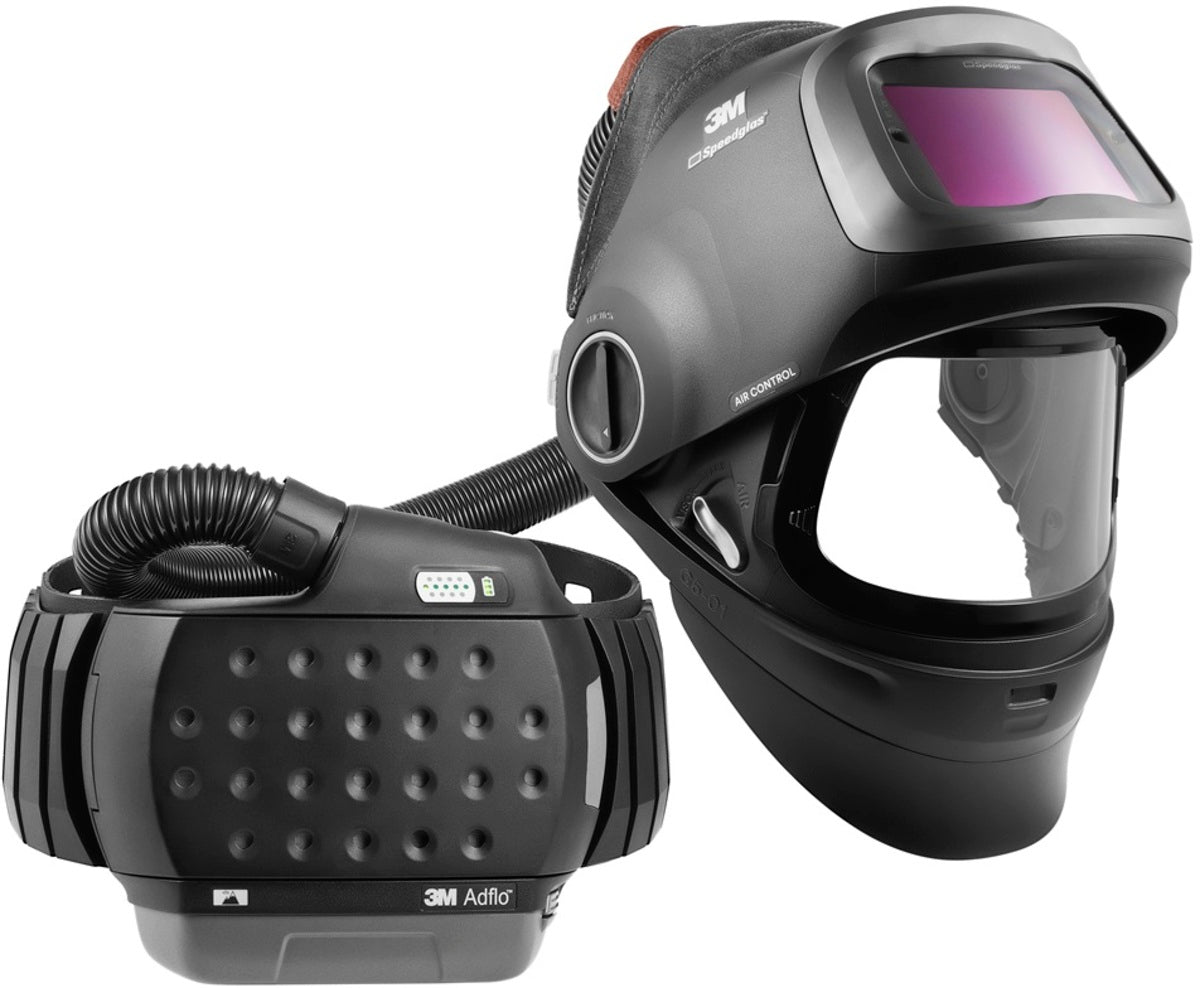

The 3M Speedglas G5-01 Heavy-Duty Welding Helmet with Adflo PAPR Assembly, MPN 7100349986, uses next-generation technology to help provide dynamic welding protection. Intuitively designed, this ergonomic helmet setup includes a clear, wide-view protective visor for grinding and related jobs. It provides high-efficiency particulate respiratory protection in a lightweight, compact design.
- The clear protective visor is curved, providing excellent viewing angles up, down, and peripherally.
- A slim profile makes the welding helmet lightweight and easy to utilize in tight welding spaces
- The system is NIOSH approved and provides an Assigned Protection Factor (APF) of 25.
Product Highlights
The 3M Speedglas G5-01 welding helmet is adaptable to your unique needs and working environment. It is lightweight for added user comfort.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 7100349986
-
Country of Origin: USA
Technical Specifications
-
SKU: 7100349986
-
Manufacturer: 3M
-
SAP: 7100349986
-
3M ID: 70100401796
-
UPC: 00068060858535
-
MFG: 7100349986
-
Power Source: Turbo Lithium-Ion
-
Lens Shade: 8-14
-
Lens Type: Auto-Darkening
-
Viewing Area: 2.8 in x 4.2 in
-
UNSPSC: 46181711
-
ADF Model: G5TW
-
ADF Shade Range: Variable 5, 8-13
-
Air Source: PAPR
-
Assigned Protection Factor: 25
-
Battery Life: 7 - 9 Hours
-
Battery Type: Turbo: Lithium-ion
-
Breathing Tube Grade: Standard
-
Cartridge or Filter Included: HE Filter
-
Charging Time: 4.5 Hours
-
Compatible Welding Helmet: G5-01 Welding Helmets
-
Grinding Option: Flip-up with Clear Visor
-
Headgear Type: Welding Helmet with Grinding Visor
-
Intrinsically Safe: No
-
Light State: Shade 3
-
Mounting Type: Belt-mounted
-
NIOSH Cartridge or Filter Assigned Color Coding: Magenta
-
Operating Temperature: -5 C to +55 C
-
Partial Charge Time: 80% in approx. 3 h
-
Product Code: 46-1101-30VC
-
Product Series: Adflo
G5
-
Product Type: Welding Respiratory Systems
-
Recommended Application: Metal Repair
Metal Processing
Grinding
Welding
-
Recommended Industry: Heavy Infrastructure
General Manufacturing
-
Sensitivity: 5 Level (TIG>1A & MIG/MAG, Stick)
-
Series Type: Adflo
-
Side Windows: No
-
Specifications Met: ANSI Z87.1-2015
NIOSH Approved
-
Storage Temperature: -20 C 55 C
-
Switching Time: 40 1300 ms
-
Switching Time (Light to Dark): 0.1 ms @ 73 F (23 C)
-
User Type: Professional
-
Visor Type: Clear Visor and Auto-Darkening Welding Lens
-
Welding: Yes
-
Welding Process: Most types of arc welding, arc detection down to 1-amp TIG, grinding.
-
ADF Viewing Area (Decimal Inch): 2.800" x 4.250"
-
ADF Viewing Area (mm): 71.00mm x 108.00mm
-
Viewing Area (Decimal Inch): 2.800" x 4.250"
-
Viewing Area (mm): 71.00mm x 108.00mm
-
Storage Temperature (Celsius): -20 to +55 Degree Celsius
-
Battery Life (Hours): 7 - 9 Hours
-
Charging Time (Hours): 4.5 Hours
-
Operating Temperature (Celsius): -5 to +55 Degree Celsius
-
Series: Adflo
-
ANSI: Z87.1-2015
-
Applications: Grinding, Metal Processing, Metal Repair, Welding
-
Lens Size: 2.8" X 4.2"
-
Color: Black
