3M 7100331615 Versaflo supplied air valve assembly V-300 (1 ea/case) 3MABR-V-300

3M
Brand: 3M
SKU: 7100331615
Availability: In Stock

Ships same day if ordered by 12 pm
$400.56
$400.56
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

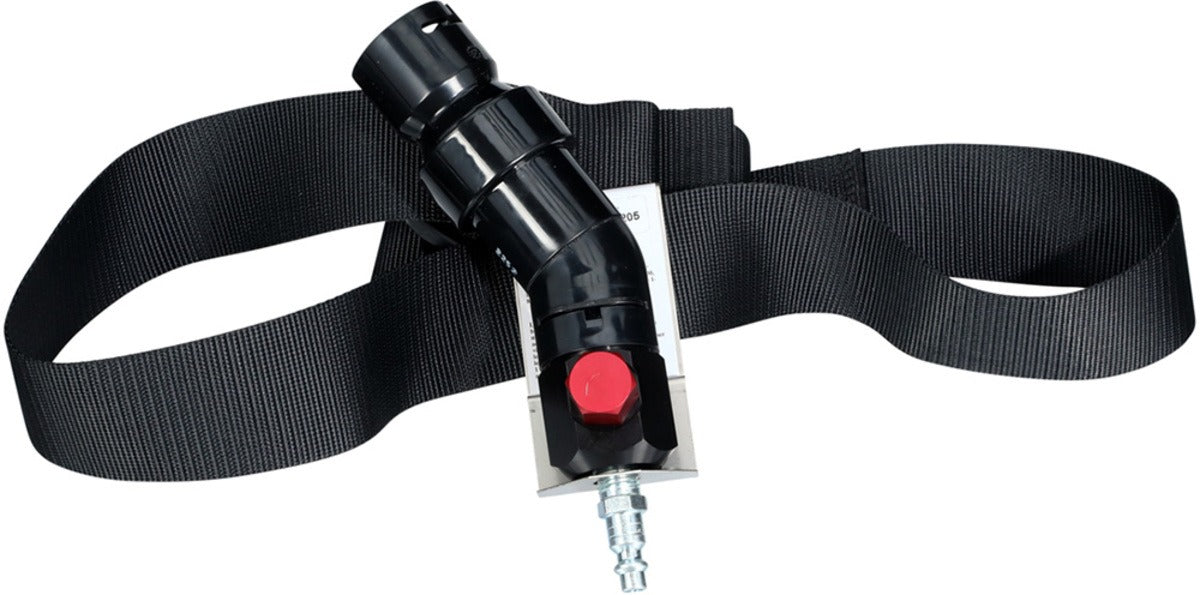

3M 7100331615 is a Versaflo supplied air valve assembly V-300 that regulates continuous-flow compressed breathable air for supplied air respirator systems. The valve offers adjustable airflow control, high-pressure operation, and replaceable components for maintenance. It is belt-mounted and NIOSH approved. The assembly requires approved 3M supplied air hose, breathing tube and compatible headgear and is used for painting, powder coating, spraying, powder handling, assembly, sanding, grinding, welding, cleaning and blasting.

  • Adjustable airflow control for user-specific airflow and comfort.
  • Continuous, high-pressure flow from a compressed air source; operating pressure 6–91 psig (depending on valve and hose length).

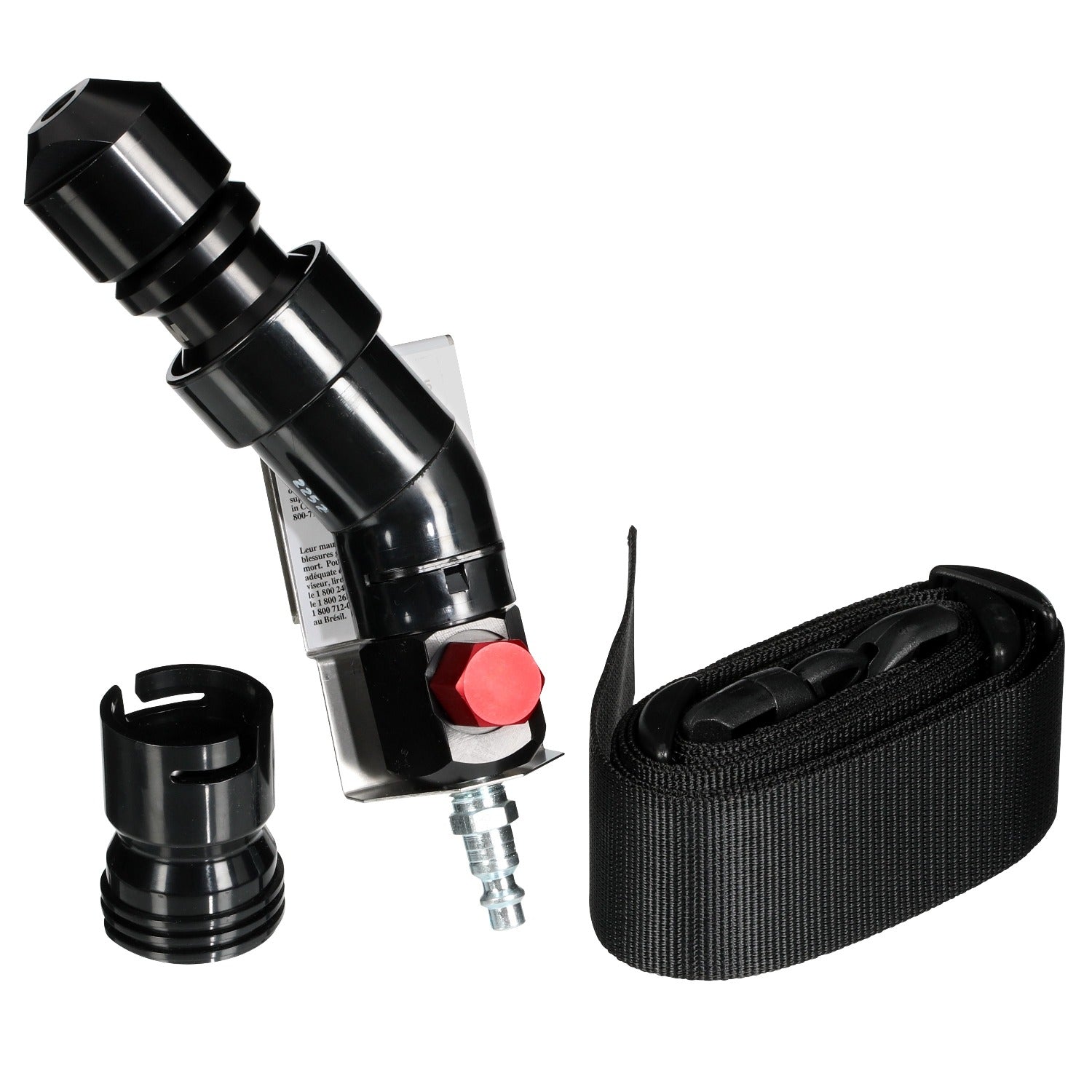

  • Belt-mounted assembly with replaceable parts; includes V-300 valve, TR-325 belt, V-399 adapter and V-199 muffler.

Product Highlights

NIOSH approved supplied air valve assembly; compatible with 3M supplied air systems and requires approved hose, breathing tube and headgear.

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: 7100331615
  • Country of Origin: USA
Technical Specifications
Manufacturer
3M
Manufacturer Part Number
7100331615
Part Number (alternate)
3MABR-V-300
Product Series
V-300
Product Type
Supplied air valve assembly (for supplied air respirator systems)
Protection Type
Respiratory protection
Certifications
NIOSH approved
Includes
V-300 valve; TR-325 belt; V-399 adapter; V-199 muffler
Air Flow
Continuous high-pressure flow from compressed air source
Operating Pressure
6 - 91 psig (depending on valve and hose length)
Air Source
Compressed breathable air (requires appropriate filtration)
Connection Type
Compressed air line
Fitting Type
Industrial interchange
Mounting Type
Belt-mounted
Hose Type
Straight
Headgear Included
No
Compatible With / System Requirement
Compatible with 3M supplied air systems; requires approved 3M supplied air hose, breathing tube and headgear to complete NIOSH-approved system
Hazard Type
Protection against dust, mist, fumes, gases or vapours and combination hazards
Maintenance
Low maintenance - no filters, cartridges, or batteries to maintain
Weight
1.56 lbs
Dimensions
9.6 x 8.9 x 5.1 in
UPC / GTIN
00068060857248
Country of Origin
USA
