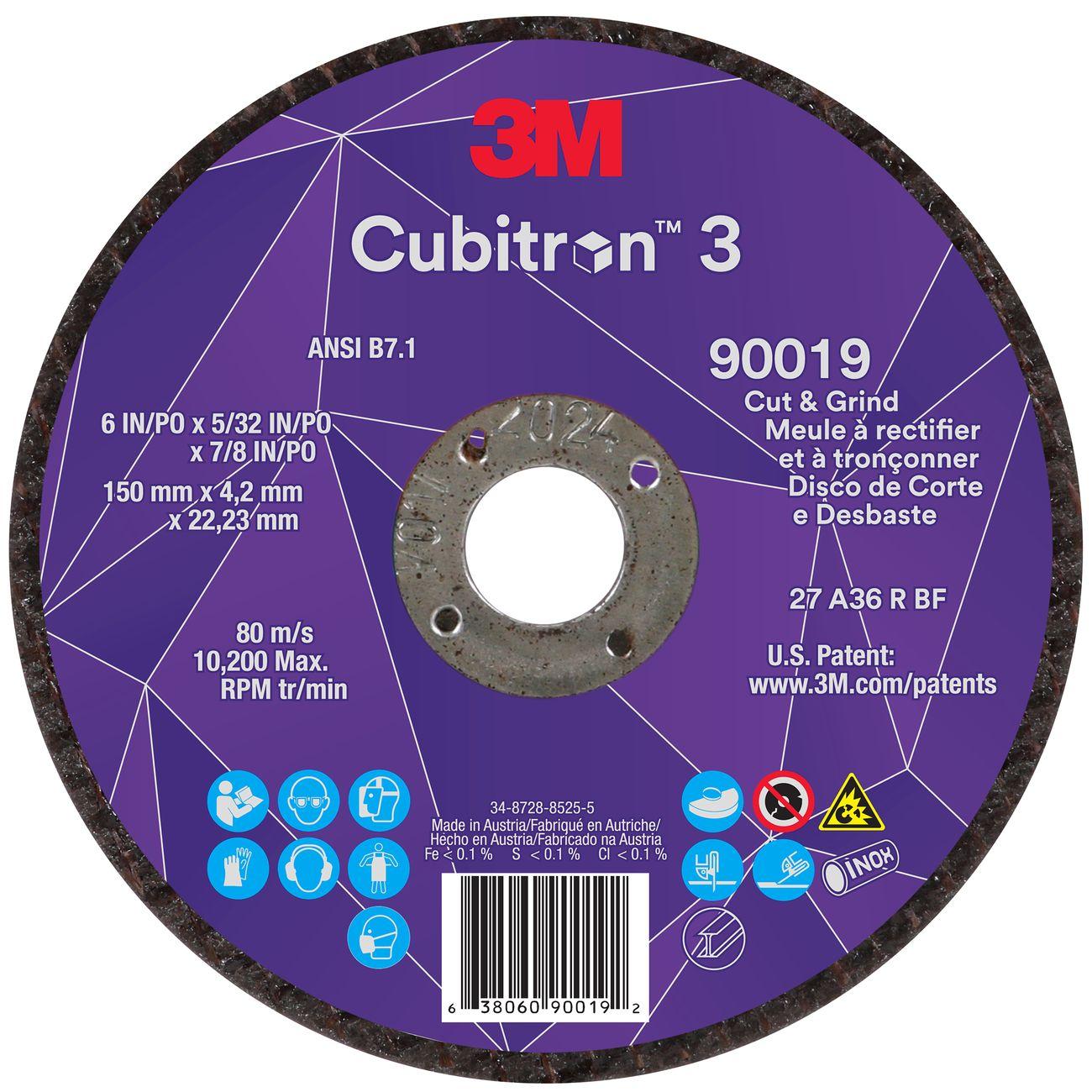

3M 7100313552 Cut and Grind Wheel 6 Inch 36+ Grit

Product Description

The 3M 7100313552 is a Cubitrona 3 Cut and Grind Wheel built for metal fabrication professionals who need a single wheel that handles both cutting and grinding tasks. It uses 3M Precision Shaped Ceramic Grain — an engineered abrasive with sharp, angular structures that continuously fracture to expose fresh cutting edges. This keeps the wheel running cool and wearing evenly over an extended service life. Rated at 36 plus grit, the wheel measures 6 inches in diameter with a 5/32 inch thickness. It is designed for licensed trade fabricators, ironworkers, and sheet metal technicians working with stainless steel and mild steel substrates.

This wheel is suited for production and maintenance applications where operators alternate between cutting, grinding, and gouging without swapping wheels. Typical use cases include structural steel fabrication shops, mechanical contractors performing pipe and duct work, and field service technicians doing weld cleanup or material removal on both stainless and mild steel. The rigid, reinforced, resin-bonded construction supports side-load grinding as well as straight cut-off work, reducing the need to carry multiple wheel types on the job.

Key Features

• Dual-function design works as both a cut-off wheel and a grinding wheel, eliminating wheel changes between tasks
• Precision Shaped Ceramic Grain continuously fractures to maintain sharp cutting edges and reduce heat buildup
• Compatible with stainless steel and mild steel substrates without cross-contamination concerns
• Rigid, reinforced, resin-bonded construction supports side-load grinding and straight plunge cuts
• Reformulated wheel composition provides improved balance and smoother action for better finish quality and reduced rework
• Enhanced performance compared to the prior Cubitrona II generation for faster stock removal with less applied pressure

Compatibility

Designed for use on stainless steel and mild steel substrates. Suitable for angle grinders and cutting tools that accept 6 inch diameter Type 27 or compatible cut-and-grind wheel profiles. Verify arbor size and guard compatibility with the tool manufacturer before mounting.

Installation Notes

Mounting and wheel changes should be performed by qualified personnel following the tool manufacturer instructions and applicable ANSI B7.1 safety standards for abrasive wheels. Always power down and disconnect the grinder before installing or removing a wheel. Inspect the wheel for cracks or damage before each use and do not exceed the maximum RPM marked on the wheel. Wear appropriate PPE including face shield, gloves, and hearing protection during operation.

Technical Specifications

• Diameter: 6 inches
• Thickness: 5/32 inches
• Grit: 36 Plus
• Abrasive Type: Precision Shaped Ceramic Grain
• Bond Type: Resin-Bonded
• Compatible Materials: Stainless Steel, Mild Steel
• Package Weight: 5.22 pounds
• Minimum Order Quantity: 2
• UPC: 00638060900192

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100313552
