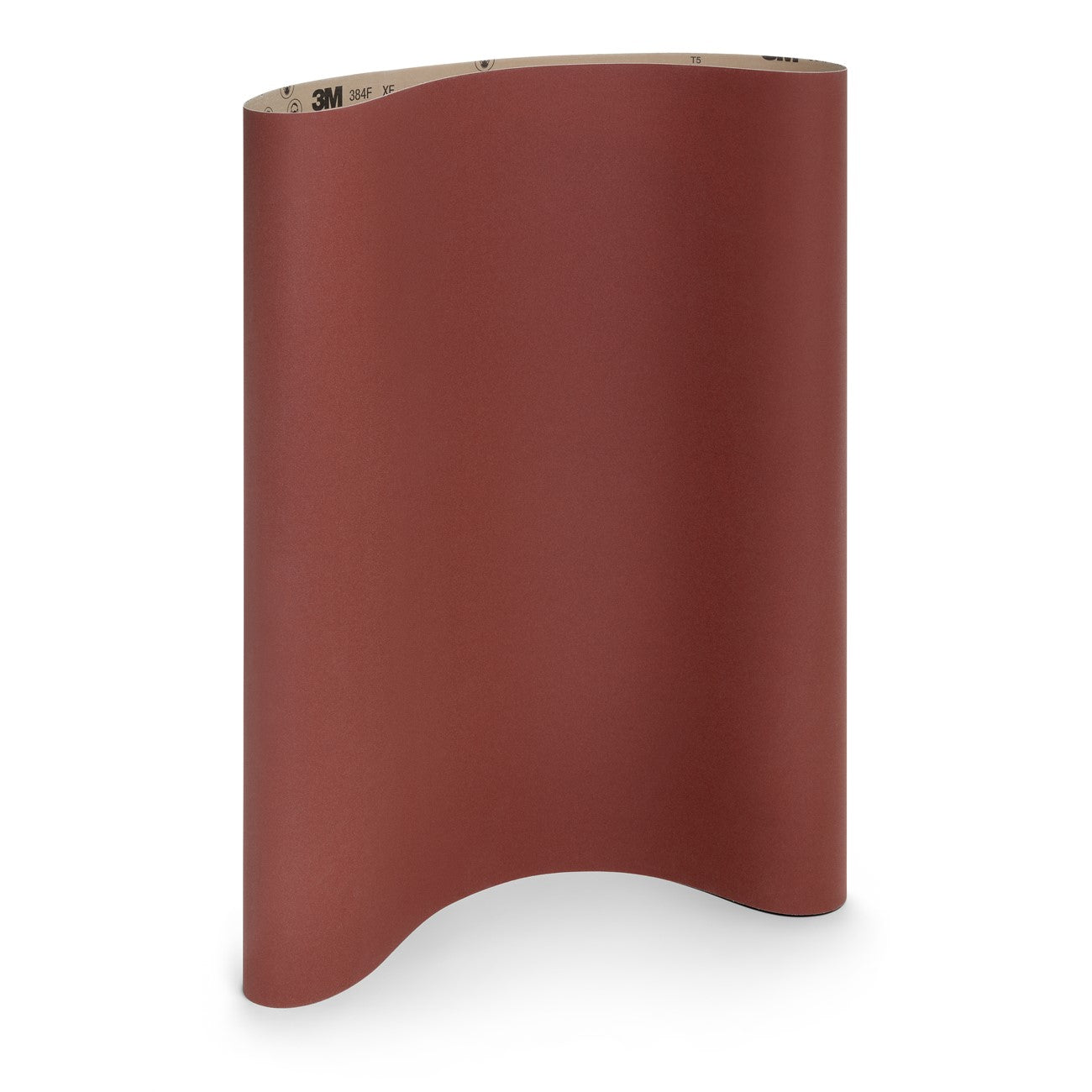

3M 7100240707 Cloth Belt 384F 80 Plus Xf 52x75 in

Product Description

The 3M 7100240707 is an aluminum oxide cloth-backed abrasive belt in the 384F series, measuring 52 inches x 75 inches with an XF-weight polyester backing. It is built for general-purpose grinding, deburring, and finishing on metal and wood substrates. The resin bond system holds up under high heat and pressure, making it a dependable choice for production metalworking and finishing environments. This belt is suited for use by metalworkers, fabricators, and industrial maintenance techs running backstand, benchtop, stroke, or wide belt grinding equipment.

The 384F belt is optimized for mild steel and carbon steel deburring and general metalworking. It also performs reliably on softer metals including aluminum, bronze, and brass, as well as on select woodworking applications. The Sine-lok and Single-flex construction allows the belt to conform and track consistently across a range of machine configurations, including portable belt grinders and wide belt finishing machines.

Key Features

• Aluminum oxide abrasive mineral delivers consistent cutting action across a wide range of substrates
• XF-weight polyester cloth backing withstands heavy grinding and high-pressure sanding
• Waterproof backing supports both wet and dry application environments
• Resin bond resists breakdown under high heat and sustained pressure
• Sine-lok and Single-flex construction promotes stable belt tracking and conformability
• Suitable for backstand, benchtop, stroke sanding, portable belt grinding, and wide belt grinding and finishing

Compatibility

Designed for use on backstand and benchtop belt sanders, stroke sanders, portable belt grinders, and wide belt grinding and finishing machines running a 52 inch x 75 inch belt size.

Installation Notes

Belt installation should be performed by a qualified operator following the machine manufacturer's guidelines for belt tensioning and tracking adjustment. Power down and lock out the machine before mounting or removing the belt. Verify belt travel direction arrows align with machine rotation before startup. Inspect the belt and machine platens for damage prior to each use.

Technical Specifications

• Series: 384F
• Abrasive Mineral: Aluminum Oxide
• Grade: 80 Plus
• Backing Weight: XF-Weight
• Backing Material: Polyester Cloth
• Bond Type: Resin
• Belt Length: 75 inches
• Belt Width: 52 inches
• Construction: Sine-lok Single-flex
• Application: Metal Deburring, General Metalworking, Woodworking
• Weight: 7.7 pounds
• UPC: 00638060883259

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100240707
