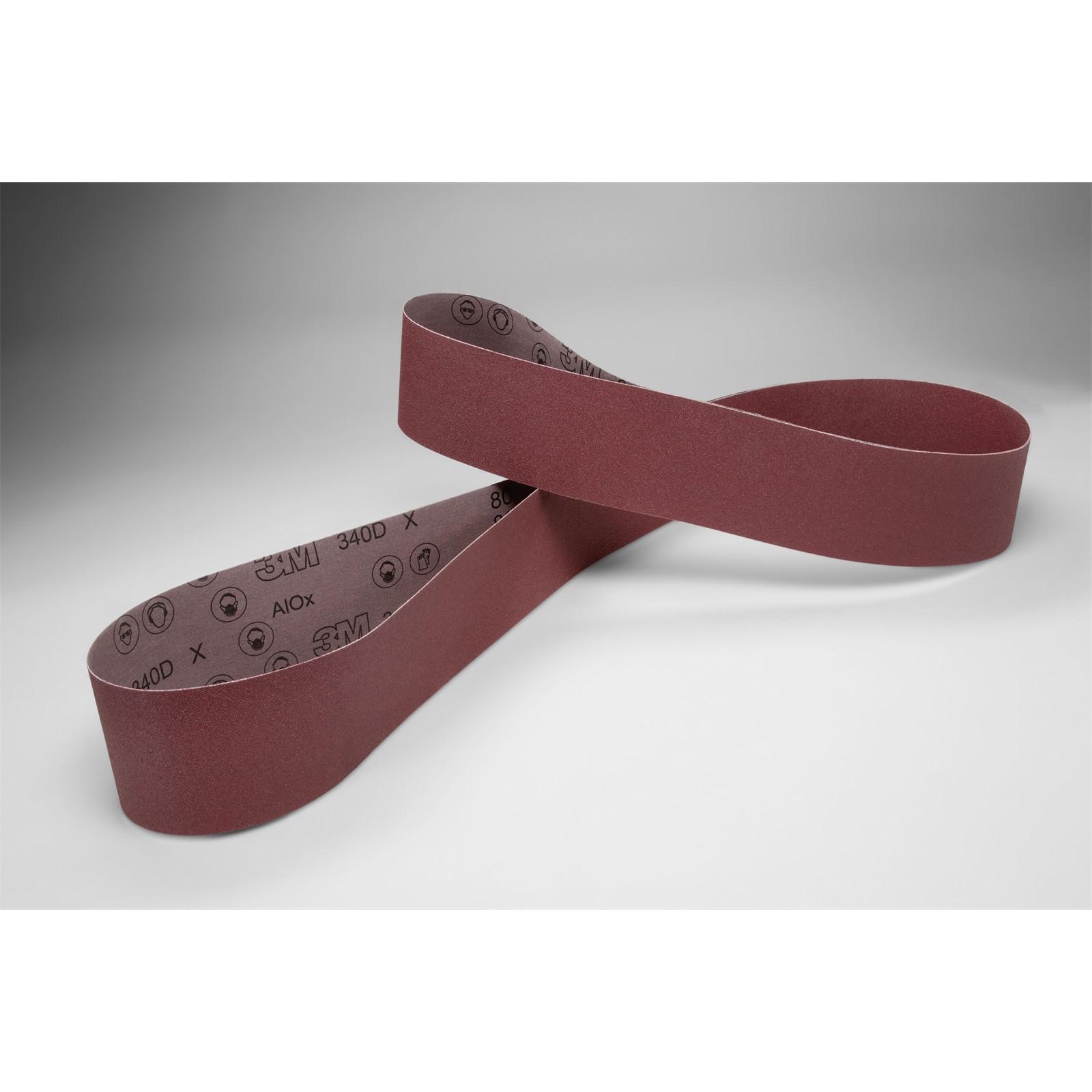

3M 7100231546 Cloth Abrasive Belt 80 Grit 6x108 Inches

Product Description

The 3M 7100231546 is an aluminum oxide cloth abrasive belt designed for general-purpose sanding in woodworking applications. Built on an X-weight cloth backing, it delivers the durability needed for demanding stock removal and surface finishing tasks. The open-coat construction resists loading, which extends belt life when working with soft woods and resinous materials. A resin bond system adds heat resistance, keeping the belt performing under sustained friction. At 6 inches wide and 108 inches long, it fits wide belt sanders commonly used in cabinet shops, millwork operations, and woodworking production environments. Licensed tradespeople and experienced operators handling stationary wide-belt equipment are the primary installers and users.

This belt is suited for woodworking on soft woods, where loading and heat buildup are common challenges. The 80-grit, X-weight configuration makes it effective for aggressive stock removal while still leaving a workable surface for finish sanding steps. The washable construction allows reconditioning between uses, which can extend service life in production settings. It is sold individually and is appropriate for high-volume shops looking for a load-resistant belt at a standard wide-belt dimension.

Key Features

• Aluminum oxide abrasive mineral for consistent cut rate on wood
• Open-coat construction resists loading on soft woods and resinous materials
• X-weight cloth backing provides durability and flexibility under tension
• Resin bonded for improved heat resistance during sustained use
• Washable design allows belt reconditioning to extend service intervals
• 80-grit cut rate suited for stock removal and intermediate sanding

Compatibility

Designed as an OEM-style abrasive belt replacement for wide-belt stationary sanders accepting a 6-inch by 108-inch belt configuration in woodworking applications.

Installation Notes

Installation is performed by equipment operators or maintenance technicians servicing wide-belt sanding machinery. Always power down and lock out the sander before changing the belt. Confirm belt tracking alignment and tension settings per the machine manufacturer's guidelines before resuming operation. Inspect the platen and contact drum for wear before fitting a new belt.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Grit: 80
• Grade: X-weight
• Coat Type: Open Coat
• Backing: Cloth
• Bond Type: Resin
• Belt Width: 6 inches
• Belt Length: 108 inches
• Weight: 0.7 pounds
• Unit of Measure: Each
• UPC: 00051144110353

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100231546
