3M 7100206851 Ceramic Flap Wheel 8 in 1 in Arbor

Product Description

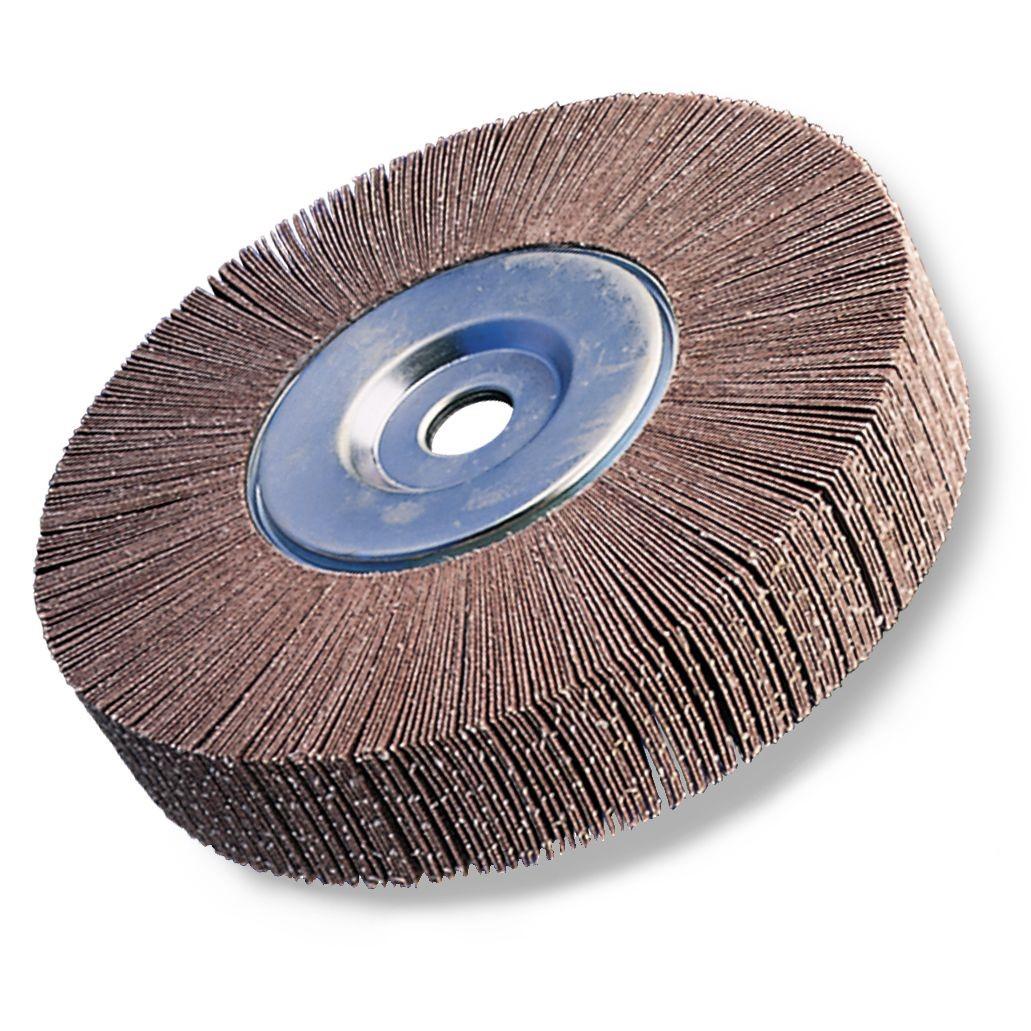

The 3M 7100206851 is a ceramic abrasive flap wheel designed for light grinding, blending, deburring, and polishing on metal surfaces. The wheel measures 8 inches in diameter with a 1-inch arbor bore and weighs 9.272 pounds. Individual abrasive flaps are mounted radially around the hub and conform to the contours of the workpiece, producing a smooth, consistent finish on both flat and irregular profiles. The ceramic aluminum oxide abrasive blend delivers a high cut rate and extended service life compared to standard aluminum oxide wheels. This wheel is built for use on angle grinders and bench-mounted flap wheel arbors in fabrication, welding, and metalworking environments.

This flap wheel is suited for professional metalworking applications including weld blending, surface conditioning, edge deburring, and light stock removal on ferrous and non-ferrous metals. Typical install scenarios include fabrication shops, HVAC sheet metal work, structural steel finishing, and pipe deburring. The conforming flap design makes it effective on curved, rounded, and contoured workpieces where rigid grinding wheels cannot maintain consistent contact. It is intended for use by metal fabricators, pipefitters, HVAC sheet metal workers, and other trade professionals requiring controlled material removal with a refined surface finish.

Key Features

• Ceramic aluminum oxide abrasive blend for high cut rate and extended wheel life
• X-weight polyester/cotton backing withstands aggressive sanding and grinding applications
• Resin bond resists thermal and chemical deterioration for consistent performance over time
• Flaps wear progressively to expose fresh abrasive mineral, maintaining a fast and uniform cut
• Conforms to rounded and irregular surfaces for smooth, controlled finishing
• 1-inch arbor bore fits standard angle grinder and bench arbor mounting

Compatibility

Designed for use with angle grinders and bench-mounted flap wheel arbors accepting a 1-inch arbor bore. Suitable for light grinding, blending, deburring, and polishing on a variety of metal workpiece types.

Installation Notes

Installation and operation should be performed by qualified trade professionals familiar with abrasive wheel safety. Before mounting, inspect the wheel for cracks or damage and verify that the grinder speed rating meets or exceeds the wheel's maximum rated RPM. Power down and disconnect the grinder from its power source before changing wheels. Always use the appropriate guard and personal protective equipment when operating abrasive flap wheels.

Technical Specifications

• Wheel Diameter: 8 inches
• Arbor Bore: 1 inch
• Abrasive Type: Ceramic Aluminum Oxide
• Backing Material: X-Weight Polyester/Cotton
• Bond Type: Resin
• Wheel Type: Coated Flap Wheel
• Package Dimensions: 8.6 inches x 8.5 inches x 6.7 inches
• Weight: 9.272 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 3
• UPC: 638060756831

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100206851
