3M 7100201470 Vinyl Electrical Tape Power 76 ft Replacement MPN

Product Description

3M Vinyl Electrical Tape with MPN 7100201470 is designed for electrical insulation for wires and cables rated up to 600 volts. This tape is a premium grade solution that combines durability and effectiveness for various electrical applications. It features a robust PVC backing and a pressure-sensitive rubber-resin adhesive that ensures a strong hold. It is ideal for indoor and outdoor use, providing mechanical protection for high voltage cable splicing.

• Rated for electrical insulation up to 600V
• Flame retardant, suitable for high and low voltage applications
• Compatible with various cable insulations and splicing compounds

Product Highlights

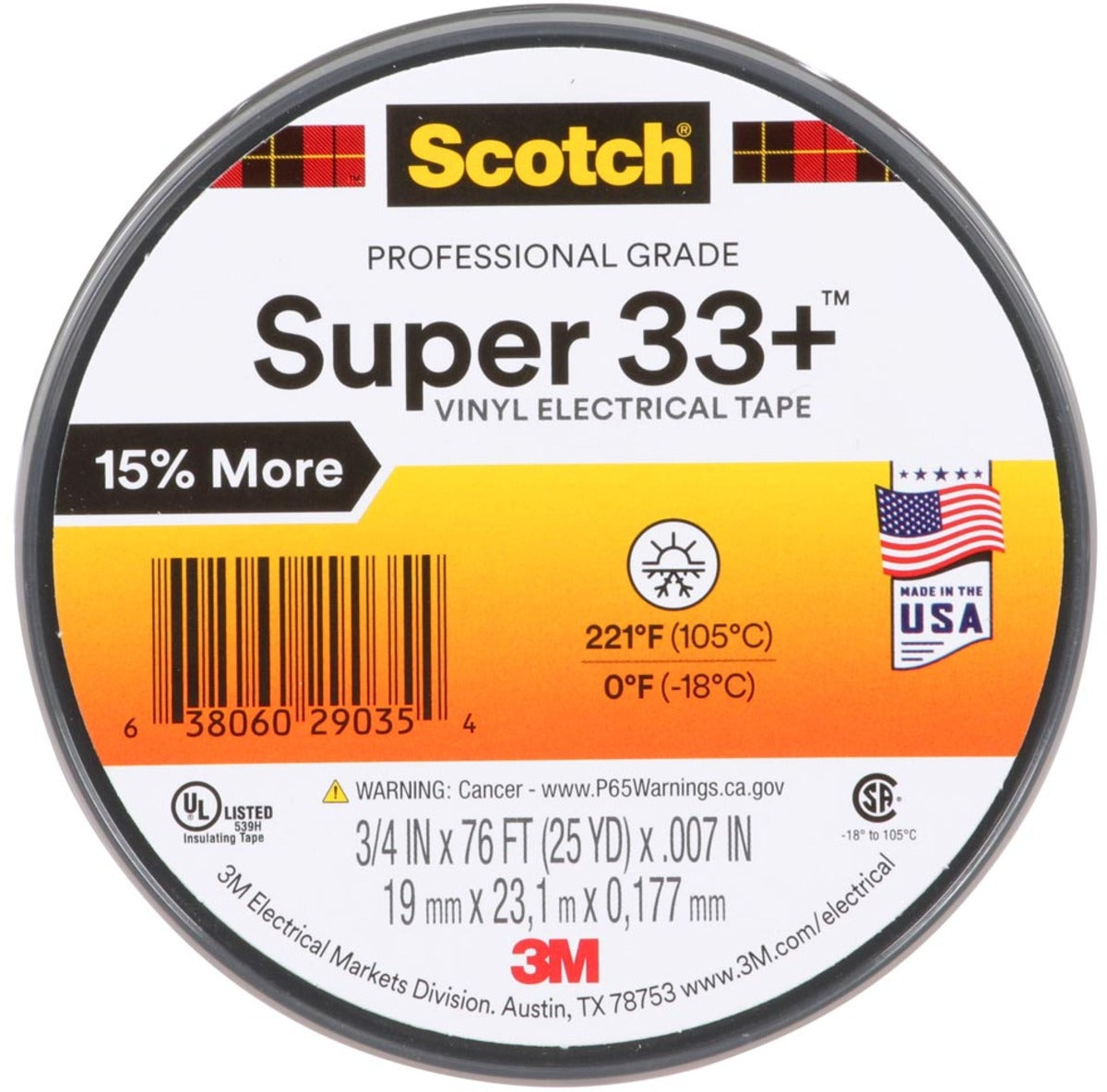

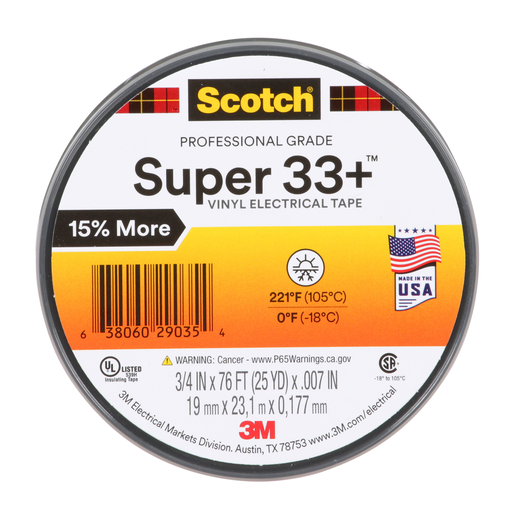

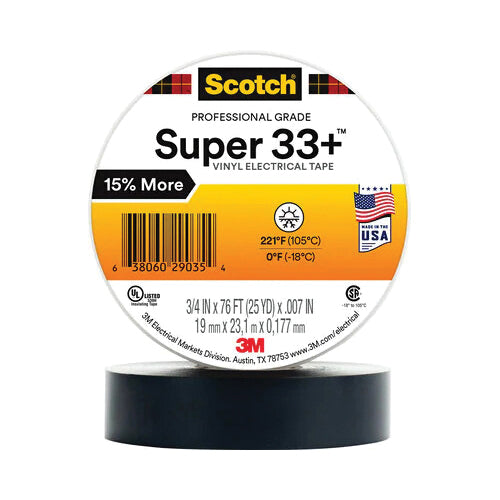

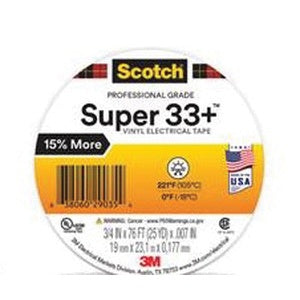

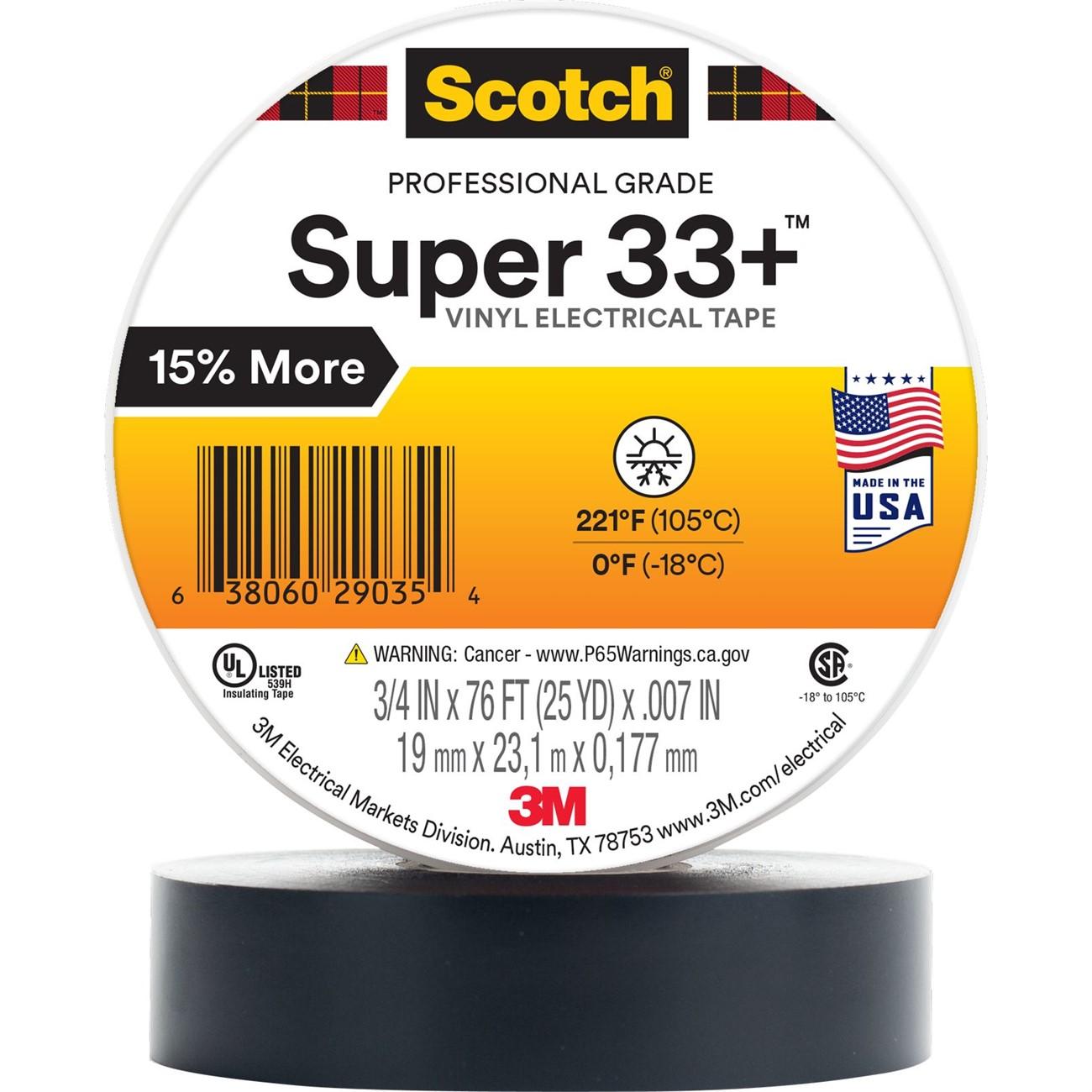

Scotch Super 33+ tape is widely used in the electrical industry for its reliability and versatility in both commercial and residential projects.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: 7100201470

Technical Specifications

• Length: 76 feet
• Width: 0.75 inches
• Thickness: 7 mil
• Voltage Rating: 600 volts
• Dielectric Strength: 1150 V/mil
• Maximum Operating Temperature: 221°F
• Minimum Operating Temperature: 0°F
• Adhesion Strength: 60 in-oz
