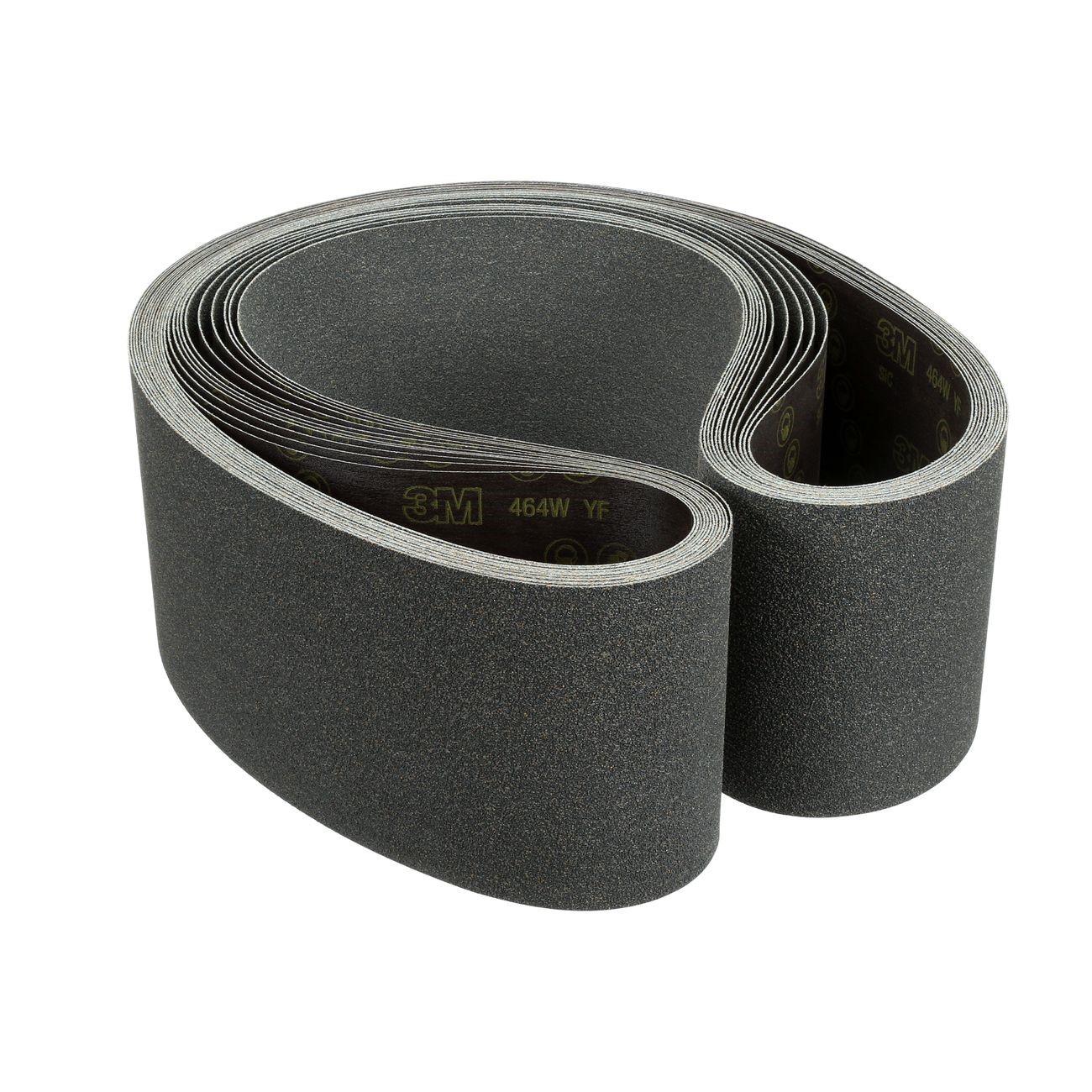

3M 7100196495 Abrasive Belt 84x6 Inch 320 Grit Silicon Carbide

Product Description

The 3M 7100196495 is a silicon carbide abrasive sanding belt built on a heavy YF-weight cloth backing with closed coat construction. It measures 84 inches in length and 6 inches in width, running at 320 grit for fine cutting and surface finishing. The closed coat layout places abrasive grain at maximum density, delivering consistent material removal and a refined surface profile. Cork particles mixed into the mineral layer act as a cushion during contact, making this belt well-suited for achieving the characteristic blue finish on stainless steel and for final cosmetic polishing on metal. Resin bonding holds the abrasive in place and resists heat-related breakdown, extending service life in high-cycle applications. Fabricators, metalworkers, and finishing technicians are the primary users of this belt.

This belt is designed for metal surface sanding and final cosmetic finishing, including achieving required directional finishes on stainless steel. The flexible YF-weight backing allows the belt to conform to contoured or irregular part geometries, maintaining consistent grit contact across the surface. It is appropriate for use in both shop fabrication environments and production finishing lines where a controlled, repeatable surface finish is required. The waterproof polyester construction allows for easy debris removal and supports wet or dry sanding conditions depending on the application setup.

Key Features

• YF-weight cloth backing provides durability and flexibility for contoured metal surfaces
• 320 grit silicon carbide abrasive delivers fine cutting action and smooth surface finish
• Cork particles cushion contact and help produce a refined cosmetic finish on stainless steel
• Closed coat construction maximizes grain density for consistent material removal
• Resin bond resists heat degradation, extending belt service life in high-cycle use
• Waterproof polyester material supports easy debris removal and wet or dry operation

Compatibility

Designed for use on belt sanders and finishing machines that accept an 84 inch by 6 inch abrasive belt. Suitable for metal surface preparation and cosmetic finishing applications, including stainless steel blue finish work.

Installation Notes

Install and replace abrasive belts only when the sanding machine is fully powered down and locked out per applicable safety procedures. Confirm belt tracking and tension according to the sander manufacturer specifications before resuming operation. Inspect the belt for tears or edge damage prior to each use. Personnel handling abrasive belts should wear appropriate cut-resistant gloves and eye protection.

Technical Specifications

• Grit: 320
• Abrasive Mineral: Silicon Carbide
• Backing Type: YF-Weight Cloth
• Coat Type: Closed Coat
• Belt Length: 84 inches
• Belt Width: 6 inches
• Package Dimensions: 14.09 inches L x 14.01 inches W x 13.51 inches H
• Weight: 19.677 pounds
• UOM: Each
• UPC: 638060398208

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100196495
