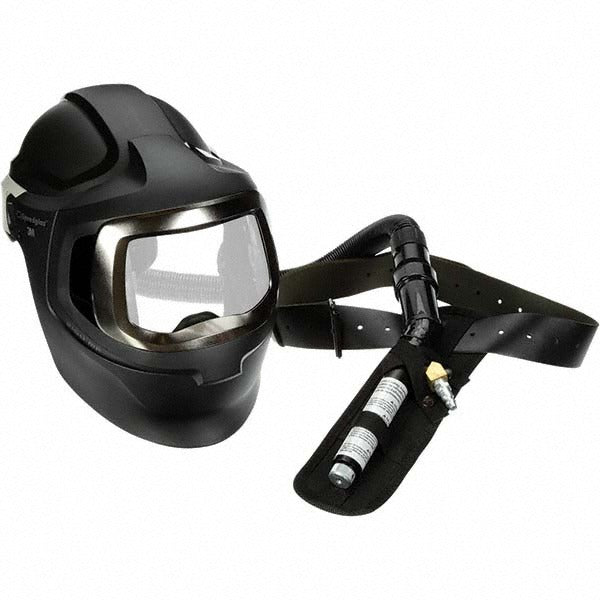

3M 7100194536 Auto-darkening Welding Helmet Shade 5-13

Product Description

The 3M 7100194536 is an auto-darkening welding helmet designed for professional welders and fabricators working across a range of welding processes. The helmet features a lift-front window style with an auto-darkening lens that adjusts from shade 5 to shades 8 through 13, covering light cutting and grinding tasks as well as MIG, TIG, and stick welding applications. The polycarbonate shell provides durable impact resistance while keeping overall weight manageable. The lens viewing area measures 4.2 inches wide by 2.8 inches tall, giving the welder a clear line of sight to the work zone. Licensed welders, pipefitters, and fabrication shop technicians are the primary installers and users of this helmet.

This helmet is suited for both light industrial and heavy fabrication environments where variable arc intensity requires a wide shade range. The auto-darkening function eliminates the need to manually flip the lens between tacks and continuous passes, reducing neck fatigue and improving weld placement accuracy. The lift-front design also allows the operator to inspect the work area without removing the helmet entirely. Supplied accessories include a breathing tube, storage bag, and supplied air valve, making this helmet compatible with supplied-air breathing configurations in environments with fume concerns.

Key Features

• Auto-darkening lens covers shade 5 and shades 8 through 13 for versatile welding and cutting tasks
• Lift-front window style allows quick inspection without full helmet removal
• Polycarbonate shell construction provides impact-resistant head protection
• Viewing window measures 4.2 inches wide by 2.8 inches tall
• Includes breathing tube, storage bag, and supplied air valve for supplied-air use
• Lightweight design at 8.45 pounds packaged, suitable for extended wear

Compatibility

Designed as a general-purpose auto-darkening welding helmet compatible with standard supplied-air valve systems as included; consult 3M documentation for compatible supplied-air breathing system components.

Installation Notes

Fitting and adjustment should be performed by the welder before entering the work area to ensure a secure head fit and proper lens positioning. Inspect the auto-darkening cartridge and lens for cracks or damage before each use per ANSI Z87.1 guidelines. When using the supplied-air valve configuration, verify air supply connections and flow rates meet OSHA and applicable respiratory protection standards before use. Never use this helmet as a substitute for appropriate fixed barrier shielding where required by site safety protocols.
