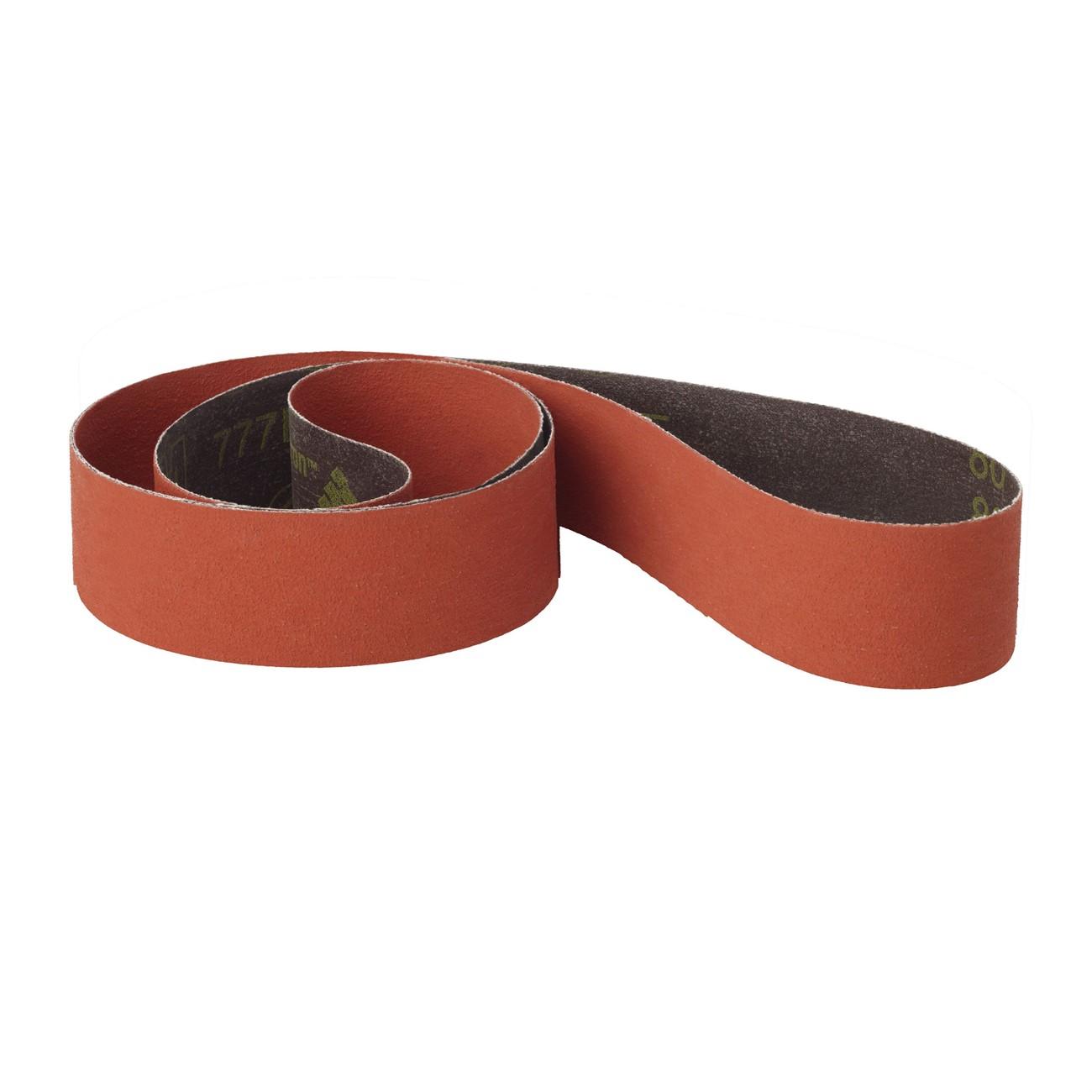

3M 7100194191 Abrasive Belt P180 Grit 84x6 Inch Ao Ceramic

Product Description

The 3M 7100194191 is a cloth-backed abrasive belt designed for high-demand stock removal and metal finishing applications. It combines ceramic abrasive grain with aluminum oxide in a blend that cuts faster and lasts longer than standard aluminum oxide belts. The heavyweight polyester cloth backing handles high-pressure contact wheel and platen grinding. At 84 inches long and 6 inches wide with a P180 grit rating, this belt suits wide-belt finishing machines used in fabrication shops, metal service centers, and weld-blending operations. A built-in grinding aid reduces friction heat, making it well suited for heat-sensitive alloys including stainless steel.

This belt is intended for industrial and trade use on ferrous and non-ferrous metals. Typical applications include weld seam blending, surface conditioning, and precision stock removal on flat or contoured workpieces. The P180 grit provides a medium-fine cut that bridges the gap between aggressive material removal and pre-finishing work. It can be run dry or with a compatible liquid lubricant, adding flexibility across different shop setups and material types.

Key Features

• Ceramic and aluminum oxide grain blend for faster cutting and extended belt life compared to standard AO belts
• Heavyweight polyester cloth backing supports high-pressure grinding on contact wheels and platens
• Built-in grinding aid reduces heat buildup, improving performance on stainless steel and other heat-sensitive metals
• Durable resin bond resists heat deterioration to extend usable belt life
• Runs wet or dry for versatility across different shop environments and workpiece materials
• P180 grit suits medium-fine finishing, weld blending, and pre-polish surface prep

Compatibility

Designed for use on wide-belt grinding and finishing machines that accept 84-inch by 6-inch abrasive belts in metalworking and fabrication applications.

Installation Notes

Belt installation and tensioning should be performed by qualified machine operators following the equipment manufacturer's procedures. Confirm belt tracking alignment before running at full operating speed. Inspect the contact wheel, platen, and drive components for wear before mounting a new belt. Always power down and lock out the machine before changing belts in accordance with OSHA lockout/tagout requirements.

Technical Specifications

• Grit: P180
• Belt Length: 84 inches
• Belt Width: 6 inches
• Abrasive Material: Ceramic Aluminum Oxide Blend
• Backing Material: Heavyweight Polyester Cloth
• Bond Type: Resin
• Use: Dry or Wet
• Unit of Measure: Each
• Minimum Order Quantity: 20
• Weight: 12.353 pounds
• UPC: 638060397409

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100194191
