3M 7100193270 Abrasive Cloth Belt P240 Grit 84x6 Inch

Product Description

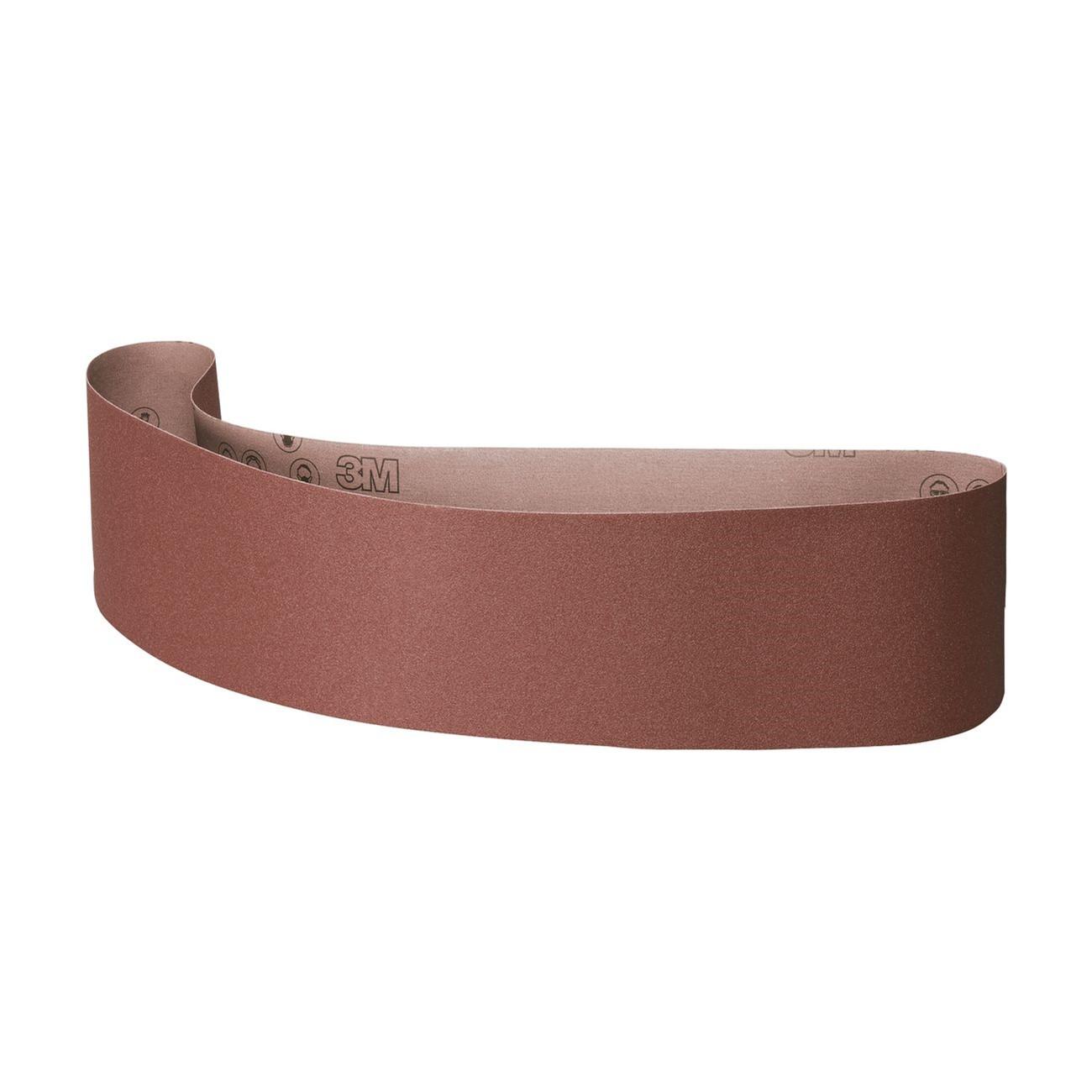

The 3M 7100193270 is an aluminum oxide abrasive cloth belt designed for grinding, blending, deburring, and finishing operations on metal surfaces. Running 84 inches long and 6 inches wide, this P240-grit belt pairs a durable polyester cloth backing with a heat-resistant resin bond that keeps abrasive grains secured under pressure, heat, and wet conditions. It is well-suited for production environments where consistent cut rate and surface finish quality are required across extended run times. Fabricators, metal finishing shops, and maintenance technicians working with carbon steel, alloy steel, and stainless steel will find this belt performs reliably across a range of moderate-pressure applications.

The 361F belt is built for centerless grinding, backstand, and coil or sheet finishing applications. Its flexible polyester backing conforms sufficiently to contoured workpieces while maintaining the structural integrity needed for flat-stock operations. The combination of aluminum oxide abrasive and heat-resistant resin makes it a practical choice for stainless steel coil finishing lines, where heat buildup and surface consistency are ongoing concerns. The belt supports both wet and dry use, accommodating shops that run coolant systems as well as those operating dry.

Key Features

• Aluminum oxide abrasive grains deliver fast cut and consistent performance on carbon steel, alloy steel, and stainless steel
• Polyester cloth backing resists tearing and provides stable results in medium-pressure grinding and finishing
• Heat-resistant resin bond retains abrasive grains under elevated temperature, pressure, and wet conditions
• Suitable for wet and dry applications, compatible with coolant systems
• Designed for centerless, backstand, coil finishing, and sheet grinding setups

Compatibility

Designed for use on backstand, centerless, and coil or sheet finishing machines that accept 84-inch by 6-inch abrasive cloth belts.

Installation Notes

Belt installation should be performed by qualified operators with the grinder or finishing machine fully de-energized and locked out per OSHA lockout/tagout procedures. Confirm belt tracking and tension according to the machine manufacturer guidelines before resuming operation. Inspect the belt splice and backing for damage before mounting. Do not exceed the maximum operating speed rating of the machine or the belt.

Technical Specifications

• Grit: P240
• Abrasive Material: Aluminum Oxide
• Backing Material: Polyester Cloth
• Belt Length: 84 inches
• Belt Width: 6 inches
• Bond Type: Heat-resistant resin
• Application: Wet or Dry
• Weight: 11.38 pounds
• UOM: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100193270
