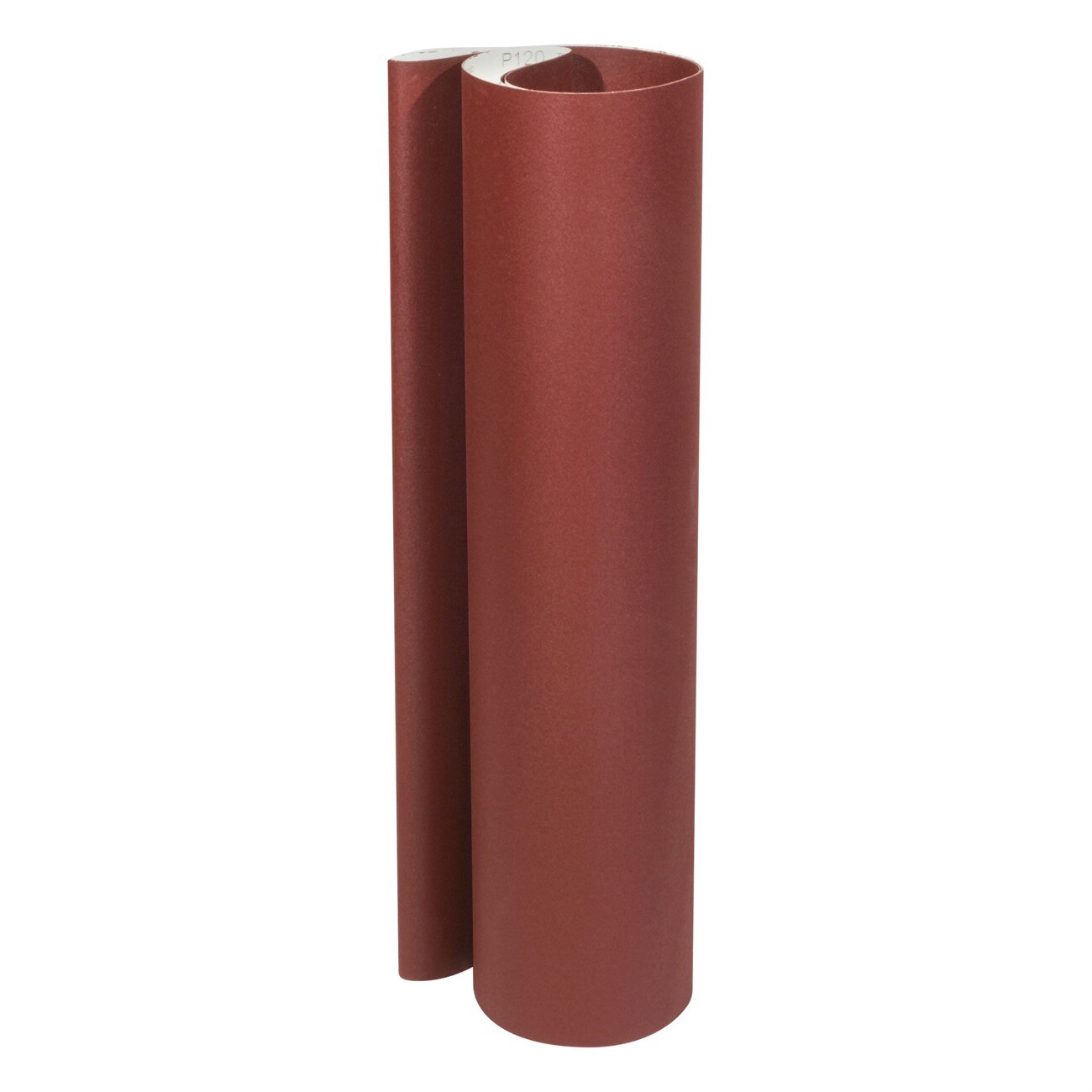

3M 7100193165 Abrasive Belt P180 Grit 103x43 Inch Ao Cloth

Product Description

The 3M 7100193165 is an open-coat aluminum oxide cloth abrasive belt designed for aggressive stock removal on wood and metal surfaces. Built on a heavyweight cloth backing with resin bond construction, this belt handles the heat and pressure of high-production sanding environments without premature breakdown. At P180 grit, it delivers a controlled cut suited to finish and intermediate sanding stages. The open-coat construction resists loading, keeping the abrasive surface clear during extended runs. Licensed tradespeople and production floor operators working with wide belt, edge, or portable belt sanders are the primary users of this belt.

This belt is intended for wide belt sanding machines, edge sanders, and portable belt sanders used in woodworking shops, millwork operations, cabinet manufacturing, and metal fabrication. It performs on softwoods such as pine, hardwoods, composite panels, and bare metal stock. The washable backing extends service life when working on high-loading substrates, reducing the frequency of belt changes in production settings.

Key Features

• Premium aluminum oxide abrasive grain for increased cut rate and extended abrasive life
• Open-coat construction resists loading on wood and composite materials
• Heavyweight cloth backing withstands high-production wide belt and edge sanding demands
• Washable backing allows repeated use on high-loading substrates such as pine
• Resin bond construction tolerates high heat and pressure for longer service intervals
• P180 grit suited for intermediate to finish sanding stages on wood and metal

Compatibility

Designed for use in wide belt sanding machines, edge sanders, and portable belt sanders that accept a 103-inch by 43-inch belt. Verify machine belt-size specifications before installation.

Installation Notes

Belt installation should be performed by qualified shop technicians or tradespeople familiar with abrasive machinery. Power down and lockout the sanding machine before changing belts. Confirm belt tracking direction arrows align with machine rotation before startup. Inspect the platen, contact drum, and tension rollers for wear that could cause uneven belt loading or premature failure.

Technical Specifications

• Grit: P180
• Abrasive Material: Aluminum Oxide
• Backing Material: Cloth
• Coat Type: Open Coat
• Bond Type: Resin
• Belt Length: 103 inches
• Belt Width: 43 inches
• Weight: 24.834 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 638060394927

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100193165
