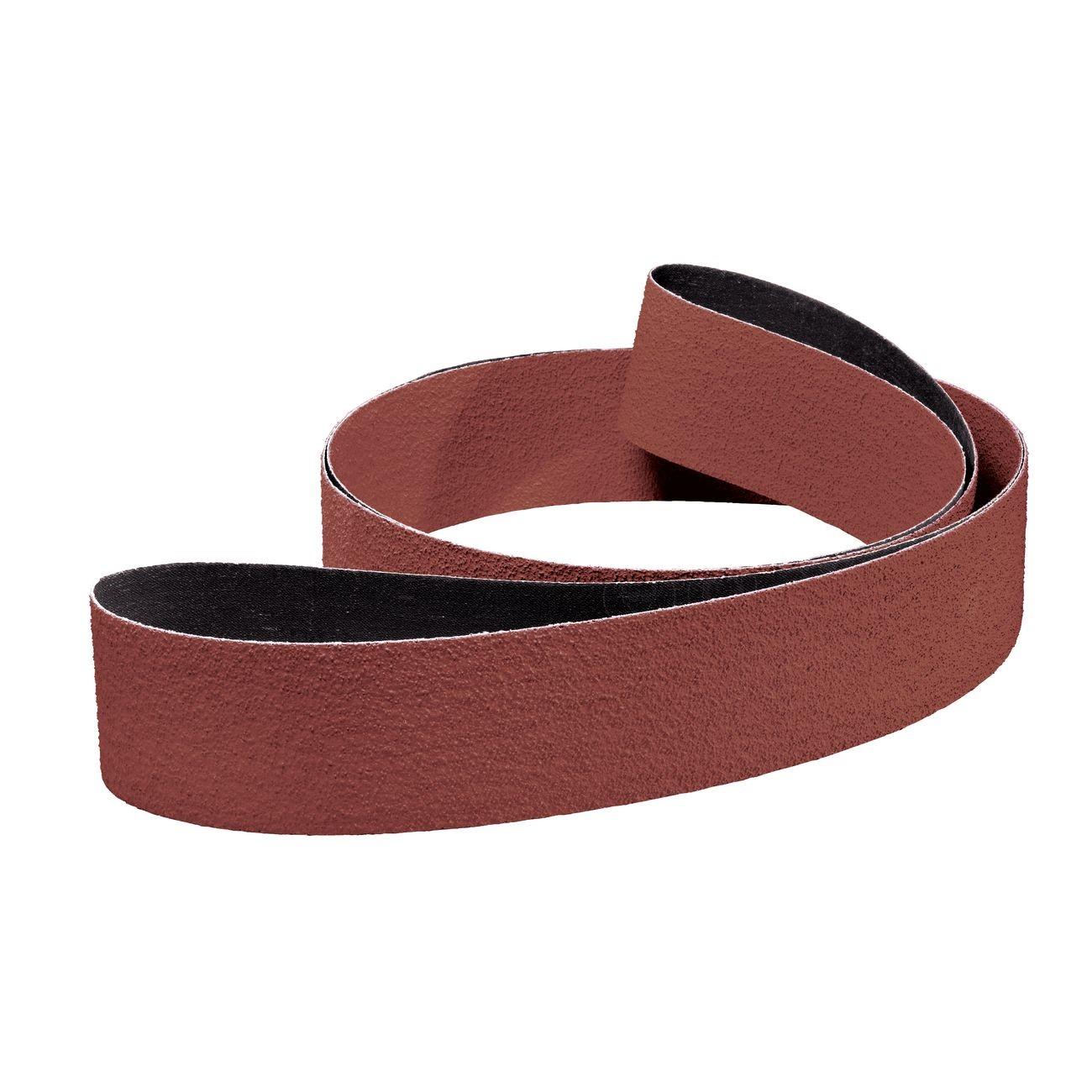

3M 7100192696 Abrasive Belt 80 Grit 132x4 Inch Ao Cloth

Product Description

The 3M 7100192696 is a coated abrasive belt designed for grinding, blending, deburring, and finishing operations on metal surfaces. Built on a tough polyester cloth backing, this belt uses aluminum oxide abrasive grains bonded with a heat-resistant resin coating. It measures 132 inches in length and 4 inches in width, making it sized for larger backstand, centerless, and coil-finishing equipment. The 80-grit grade delivers aggressive stock removal while still leaving a controlled surface finish. This belt is well suited for fabrication shops and metalworking operations where consistent cut rate and backing durability are required across extended runs.

This belt is engineered for use on all metals, with particular suitability for stainless steel coil finishing, sheet grinding, and centerless belt operations. The polyester backing handles medium-pressure applications without delaminating, and the heat-resistant resin system holds the abrasive grain under sustained thermal and mechanical load. The belt performs in both wet and dry conditions, giving operators flexibility when coolant is used. Typical installers and users include metal fabricators, weld finishing technicians, and production grinding operators working on flat stock, coils, or tubular forms.

Key Features

• Aluminum oxide abrasive grains deliver fast cutting on steel, stainless steel, and other metals
• Tough polyester cloth backing withstands medium-pressure grinding and blending applications
• Heat-resistant resin bond maintains abrasive adhesion under pressure, heat, and water exposure
• Suitable for wet and dry use, compatible with coolant-assisted operations
• 80-grit grade balances stock removal speed with surface finish control
• Construction suited for backstand, centerless, and stainless steel coil finishing equipment

Compatibility

Designed for use on backstand grinders, centerless machines, and coil finishing equipment accepting a 132-inch by 4-inch abrasive belt. Suitable for grinding and finishing all metals including stainless steel.

Installation Notes

Belt installation should be performed by a qualified operator following the machine manufacturer's guidelines for belt tracking and tensioning. Power down and lock out the grinder or backstand unit before mounting or removing the belt. Verify belt direction-of-travel arrow aligns with the machine's drive direction before starting. Inspect the contact wheel and platen for wear or damage prior to use, as surface irregularities can cause premature belt failure.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 4 inches
• Grit: 80
• Abrasive Material: Aluminum Oxide (AO)
• Backing Material: Polyester Cloth
• Bond Type: Heat-Resistant Resin
• Application: Wet and Dry
• Weight: 23.733 pounds
• UOM: Each
• Minimum Order Quantity: 25
• UPC: 638060392800

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100192696
