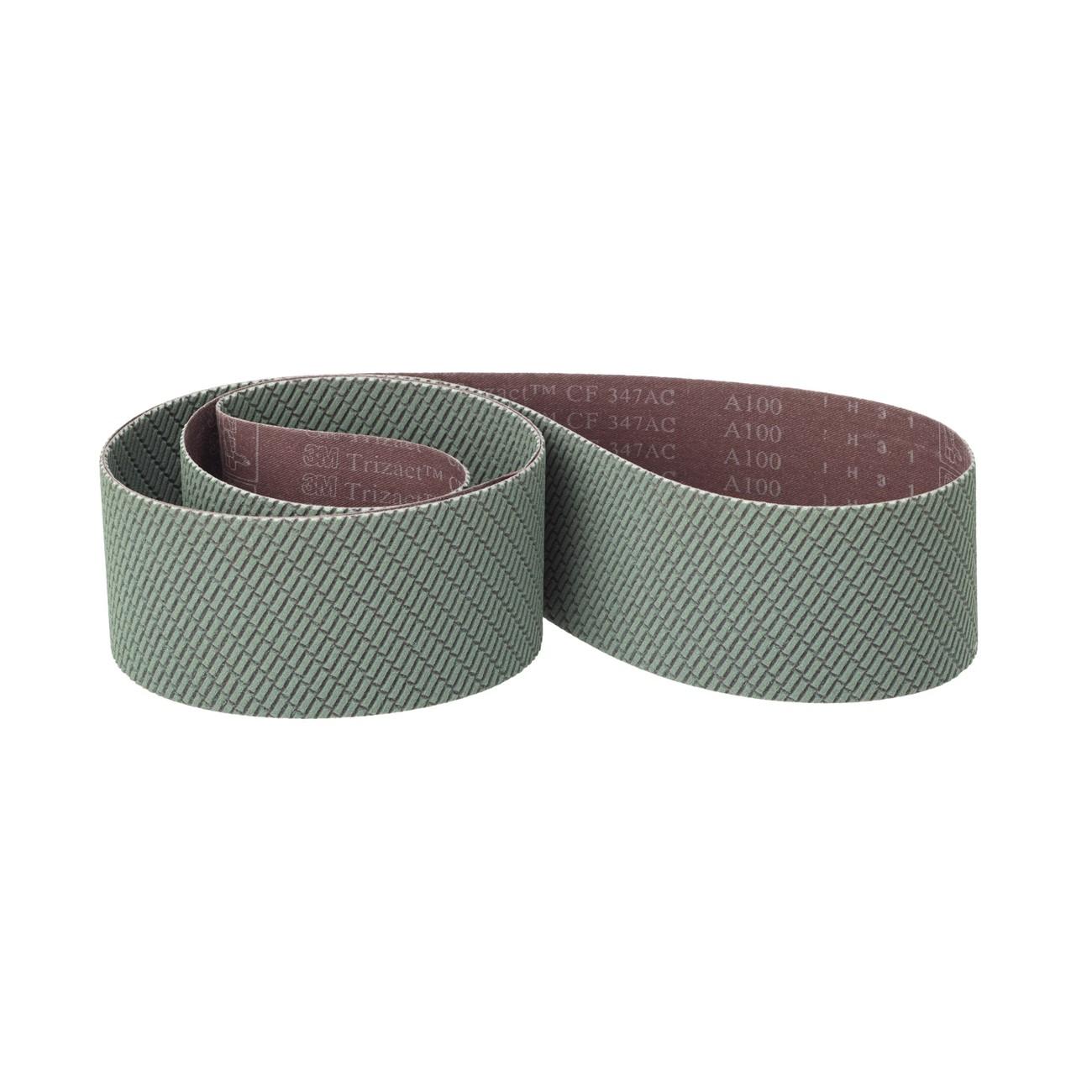

3M 7100192076 Abrasive Belt 24x1 Inch Aluminum Oxide Cloth

Product Description

The 3M 7100192076 is a Trizact CF cloth abrasive belt designed for hard chrome grinding and precision finishing applications. Built on a flexible X-weight cloth backing, this belt uses a macroreplicated abrasive structure arranged in a brick-and-channel pattern. The geometric bricks cut consistently from the first pass to the last, while the open channels evacuate swarf and reduce loading. The result is predictable, repeatable surface finishes on hard metals without the performance drop-off common with conventional abrasives. Licensed tradespeople and machine operators in metalworking, aerospace, and industrial maintenance settings will find this belt suited for high-pressure grinding on demanding substrates.

This belt measures 24 inches in length and 1 inch in width, making it compatible with standard narrow-belt grinding and finishing equipment. It is particularly well suited for hard chrome grinding, tool and die work, and precision component finishing where consistent material removal and surface finish control are critical. The aluminum oxide abrasive mineral and controlled breakdown rate make it appropriate for both roughing and finishing passes on hardened metals and alloys.

Key Features

• Macroreplicated brick-and-channel abrasive geometry cuts faster at higher pressures and maintains consistency across the full belt life
• Controlled mineral breakdown delivers predictable surface finishes from first cut to last
• Open channels efficiently remove swarf, reducing loading and capping of the abrasive surface
• Geometric bricks wear evenly due to multiple layers of mineral and grinding aid throughout the structure
• X-weight cloth backing withstands high-pressure grinding on hard metals without delamination or distortion

Compatibility

Designed for use on standard narrow-belt grinding and finishing machines that accept 24 inch by 1 inch abrasive belts. Best suited for hard chrome, hardened steel, and other hard metal substrates in precision grinding applications.

Installation Notes

Installation should be performed by a qualified operator following machine manufacturer guidelines for belt tracking and tensioning. Power down and lock out the grinder before mounting or removing the belt. Confirm belt travel direction matches the arrow marked on the backing before starting the machine. Wear appropriate PPE including eye protection and gloves when handling and operating abrasive belts.

Technical Specifications

• Belt Length: 24 inches
• Belt Width: 1 inch
• Abrasive Type: Aluminum Oxide (AO)
• Backing Material: X-weight Cloth
• Abrasive Structure: Macroreplicated Trizact CF (brick-and-channel geometry)
• Weight: 10.469 pounds
• Unit of Measure: Each
• UPC: 638060389084

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100192076
