3M 7100191861 Cubitron Ii 784F Belt 36 Grit 106x4 Inch

Product Description

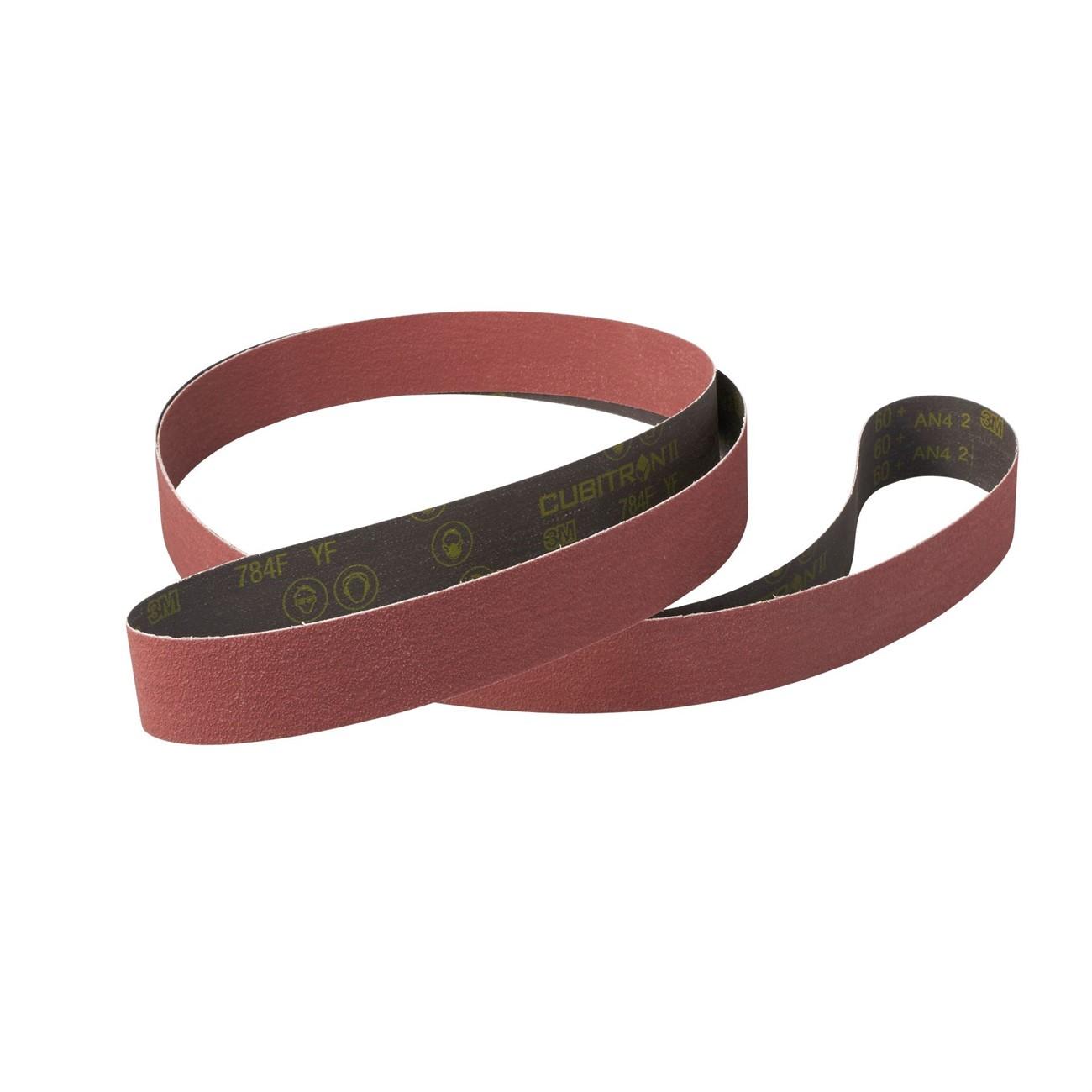

The 3M 7100191861 is the Cubitron II 784F cloth abrasive belt, engineered for medium-pressure grinding and blending on all metals. It uses 3M Precision-Shaped Grain technology, a proprietary blend of shaped ceramic and premium aluminum oxide minerals, to deliver a faster and more consistent cut than conventional ceramic aluminum oxide belts. The 36-grit rating and YF-weight polyester backing make this belt well suited to aggressive stock removal on both flat and contoured workpieces. A durable resin bond resists heat-induced deterioration, and an integrated grinding aid helps keep temperatures in check on heat-sensitive alloys.

This belt is designed for use in robotic, pressure-assisted, and manual grinding and blending operations across fabrication, weld blending, and surface conditioning workflows. It measures 106 inches in length and 4 inches in width, fitting wide-belt and stroke-sander configurations common in production metalworking environments. The waterproof backing supports both wet and dry application conditions, making it adaptable to a range of shop setups. Licensed fabricators, metal finishing technicians, and production grinders are the primary users.

Key Features

• 3M Precision-Shaped Grain blend of shaped ceramic and premium aluminum oxide for faster, more consistent cut
• 36 grit with YF-weight polyester backing engineered for medium-pressure grinding and blending
• Waterproof backing supports wet and dry use on all metals
• Grinding aid cools the abrasive zone on heat-sensitive alloys
• Durable resin bond resists heat deterioration, extending belt service life
• Moderately flexible construction conforms to both straight and contoured surfaces
• Reduced changeout frequency in robotic and pressure-assisted applications

Compatibility

Designed for use on all metals in medium-pressure grinding and blending applications, including robotic and pressure-assisted systems that accept 106-inch by 4-inch abrasive belts.

Installation Notes

Belt installation should be performed by qualified personnel following the equipment manufacturer's belt-tensioning and tracking procedures. Power down and lock out the grinding machine before mounting or removing the belt. Confirm belt direction-of-travel arrow aligns with the machine's drive direction prior to startup. Inspect the contact wheel or platen for wear or damage before mounting a new belt.

Technical Specifications

• Product Line: Cubitron II 784F
• Grit: 36
• Belt Length: 106 inches
• Belt Width: 4 inches
• Backing Material: YF-weight polyester
• Bond Type: Resin
• Mineral Type: Precision-Shaped Grain ceramic and premium aluminum oxide blend
• Application: Wet and dry grinding and blending on all metals
• Weight: 32.5 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100191861
