3M 7100180520 Secure Grip Connector, Winged Shell, 22 to 8 AWG Wire Solid Copper Wire

Product Description

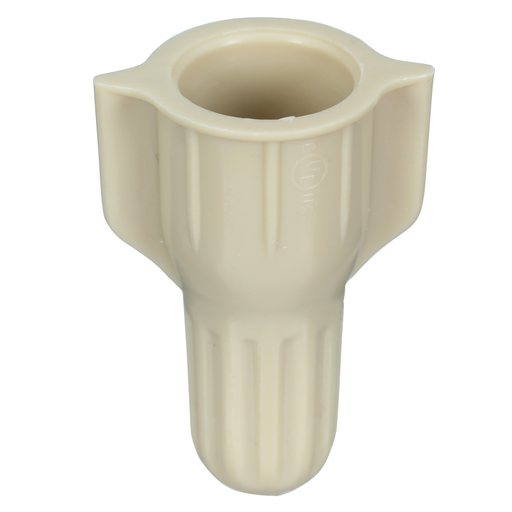

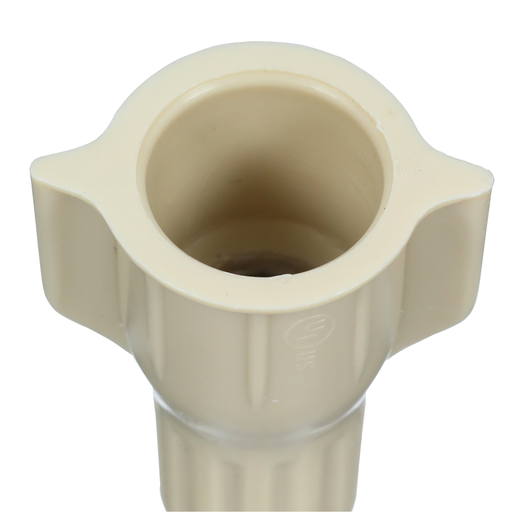

The 3M 7100180520 Secure Grip Connector features a winged shell and is designed for 22 to 8 AWG solid copper wire. An internal, insulated spring delivers a powerful grip for secure, solid connections. The slip resistant ridges and straight wing design make installation fast and simple for residential and commercial wiring jobs.

• Designed for residential and commercial wiring
• Features an internal, insulated spring for a powerful grip
• Offers secure, solid connections

Product Highlights

This 3M secure grip connector provides dependable performance with its robust steel spring design and easy installation.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100180520
• Country of Origin: China

Technical Specifications

• Brand: 3M
• MPN: 7100180520
• Wire Gauge: 22 to 8 AWG
• Wire Type: Solid Copper Wire
• Shell Type: Winged
• Material: Polypropylene/Spring Steel
• Applications: For Residential, Industrial, Commercial and Institutional
• Max Operating Temperature: 105.0 degrees C
• Standard: UL
• Maximum Conductor Size: 10 AWG 6 mm²
• Minimum Conductor Size: 22 AWG 0.34 mm²
• Voltage Rating: 600 V
• Wire Connector Type: Twist-on wire connector
• Special Features: Robust spring design for high performance holding power
• Wiring Configuration: Solid Copper
• Maximum Operating Temperature: 105 degrees C 221 degrees F
