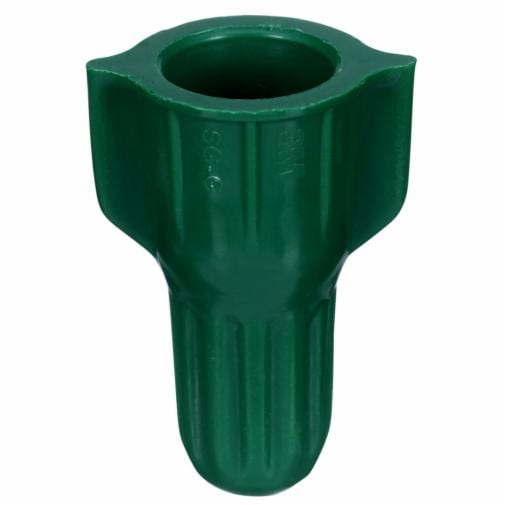

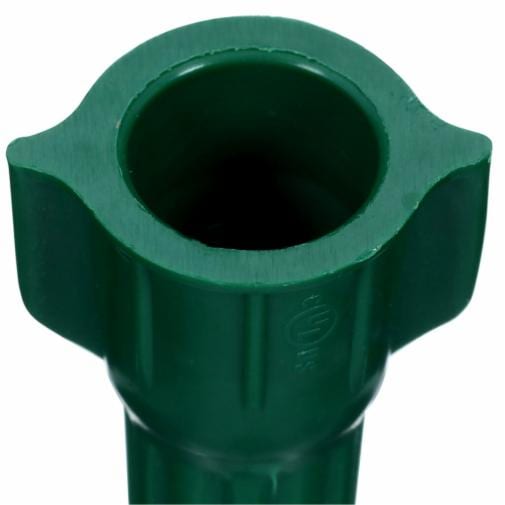

3M 7100180519 512G-Pouch flame retardant secure grip twist on wire connector 14 to 10 AWG

Product Description

The 3M 7100180519 512G-Pouch is a flame retardant secure grip twist on wire connector with a winged shell and live action/square wire spring. Designed for 14 to 10 AWG aluminum/copper wire and made of nylon. The connector features a live action spring for strong reliable connections and generous expansion room to accommodate a wide range of solid or stranded wire.

• Nylon insulated
• Connector has a live action spring for strong reliable connections
• Generous expansion room accommodates a wide range of solid or stranded wire

Product Highlights

Flame retardant insulated wire connector with live action spring for reliable connections on 14 to 10 AWG aluminum/copper wire.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100180519

Technical Specifications

• Material: Nylon
• Series: 512G
• Shell Style: Winged
• Spring Type: Live Action/Square Wire
• Temperature Rating: 221 deg F
• Type: Flame Retardant Insulated
• Voltage Rating: 300 VAC
• Wire Size: 14 to 10 AWG
• Wire Type: Aluminum/Copper
• Brand Name: 3M
• Application: Residential and commercial wiring jobs
• Manufacturer: 3M
• Special Features: Robust spring design for high performance holding power
• Maximum Conductor Size (Imperial): 10 AWG
• Maximum Conductor Size (Metric): 6 mm²
• Minimum Conductor Size (Metric): 2.5 mm²
• Minimum Conductor Size (Imperial): 14 AWG
• Maximum Operating Temperature (Celsius): 105 ℃
• Maximum Operating Temperature (Fahrenheit): 221 ℉
• Specifications Met: CSA, UL Listed
