3M 7100180514 Secure Grip Wire

Product Description

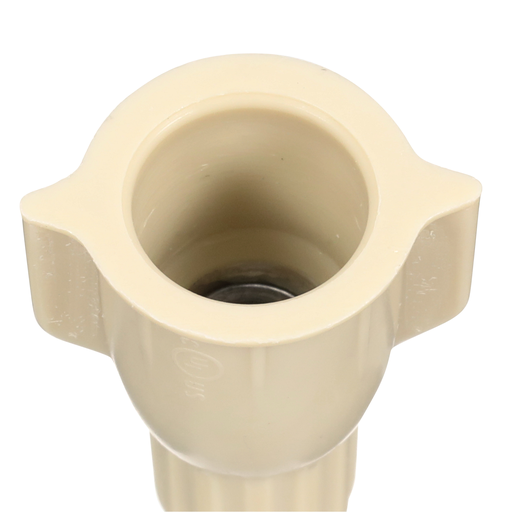

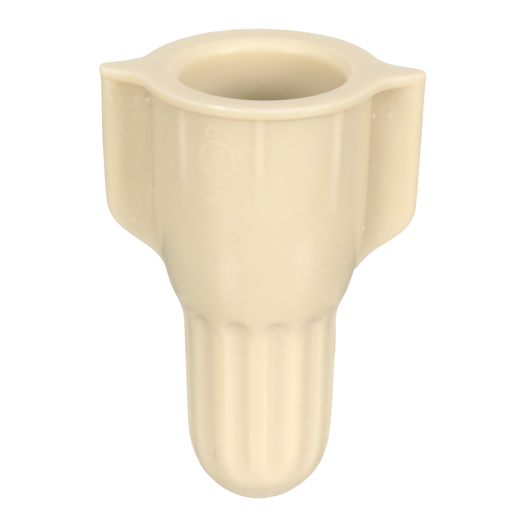

The 3M 7100180514 Secure Grip Wire Connectors are designed for residential and commercial wiring jobs. An internal, insulated spring delivers a powerful grip for secure, solid connections. The slip resistant ridges and straight wing design make installation fast and simple. These connectors electrically connect and insulate copper conductors in pigtail applications.

• Robust steel spring design for high performance holding power.
• Straight wings and slip-resistant ridges for a secure and comfortable grip.
• UL LISTED as a Wire Connector and tested per UL Standard 486C, UL File No. E23438.

Product Highlights

Secure Grip Wire Connectors provide dependable performance for a range of wiring applications. They feature a robust spring design and slip-resistant ridges for easy installation and reliable connections.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100180514
• Country of Origin: China

Technical Specifications

• Applications: For Residential, Industrial, Commercial and Institutional
• Max Operating Temperature: 105.0 degrees C
• Standard: UL
• Type: Secure Grip
• Brand: 3M
• Product UPC: 07630892607
• Country of Origin: China
• Maximum Conductor Size (Imperial): 10 AWG
• Maximum Conductor Size (Metric): 6 mm²
• Minimum Conductor Size (Metric): .34 mm²
• Voltage Rating: 600/1000 VAC
• Minimum Conductor Size (Imperial): 22 AWG
• Maximum Operating Temperature (Celsius): 105 °C
• Maximum Operating Temperature (Fahrenheit): 221 °F
• Wire Connector Type: Twist-on Wire Connectors
• Wire Size: 22 to 8 AWG
• Shell Style: Winged
• Temperature Rating: 221 deg F
• Material: Polypropylene/Spring Steel
• Wire Type: Solid Copper
