3M 7100177937 Diamond Cloth Disc 674W 2 Inch 25000 Rpm

Product Description

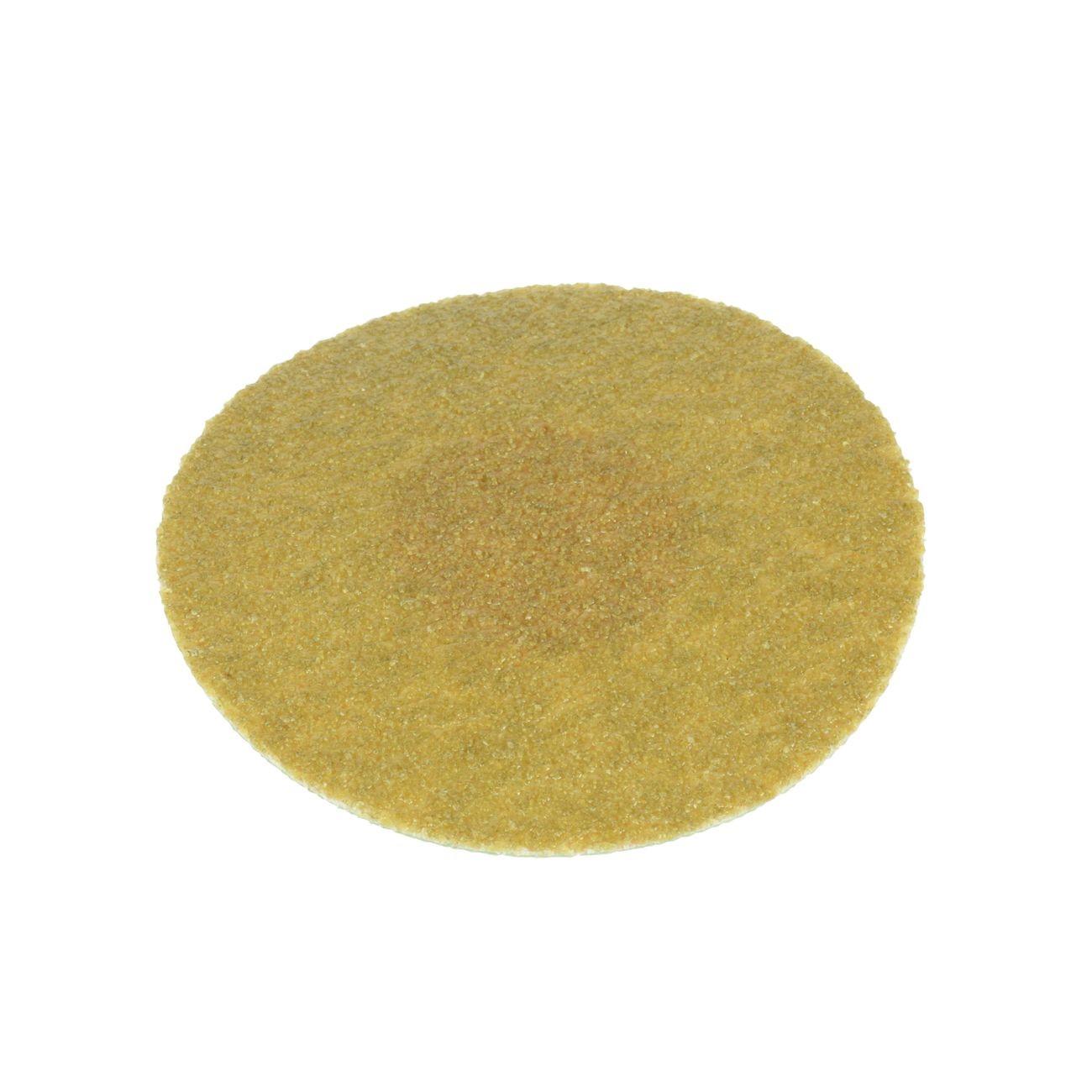

The 3M 7100177937 is a 2-inch diamond cloth abrasive disc designed for grinding and polishing hard-to-grind materials in demanding fabrication and finishing applications. Diamond mineral is resin-bonded to a durable, water-resistant cloth backing, allowing use either dry or with liquid coolants. The disc is rated to 25000 RPM and is sold individually. It is suited for use by machinists, toolroom technicians, and skilled tradespeople who work with extremely hard substrates where conventional abrasives fall short.

This diamond cloth disc is intended for use on ceramics, carbides, and hard-coated materials. The cloth backing withstands coolant exposure, which typically extends abrasive service life during wet grinding operations. Its resin bond maintains consistent mineral exposure throughout the disc life, delivering repeatable surface finishes across production runs or precision repair work. It is compatible with a variety of attachment systems, making it adaptable to standard rotary grinders and polishing tools used in shop environments.

Key Features

• Diamond mineral abrasive delivers consistent finishes on ceramics, carbides, and hard-coated surfaces
• Resin bond supports both dry use and wet use with coolants
• Water-resistant cloth backing withstands coolant exposure to extend abrasive life
• Rated to 25000 RPM for high-speed rotary tool compatibility
• Available for a variety of attachment systems

Compatibility

Designed for use on ceramics, carbides, and hard-coated materials with rotary grinders and polishing tools that accommodate a 2-inch disc form factor and support a variety of attachment systems.

Installation Notes

Mounting and disc changes should be performed with the tool powered off and fully at rest. Verify that the tool spindle speed does not exceed the 25000 RPM disc rating before operation. Follow the tool and attachment system manufacturer guidelines for proper disc seating and securing. Eye protection and appropriate PPE are required when operating abrasive discs at high speed.

Technical Specifications

• Disc Diameter: 2 inches
• Maximum Speed: 25000 RPM
• Abrasive Mineral: Diamond
• Backing Material: Water-resistant cloth
• Bond Type: Resin
• Use Type: Dry or wet with coolant
• Unit of Measure: Each
• Weight: 26.069 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100177937
