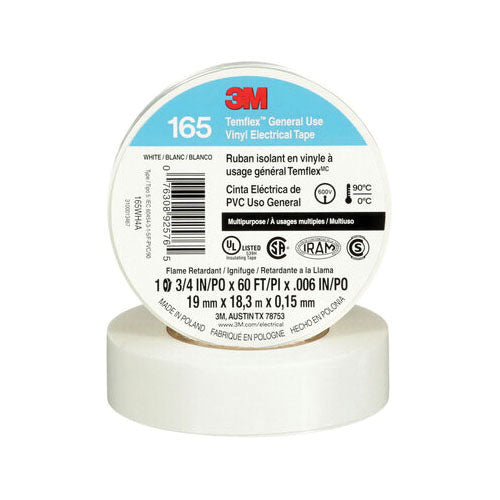

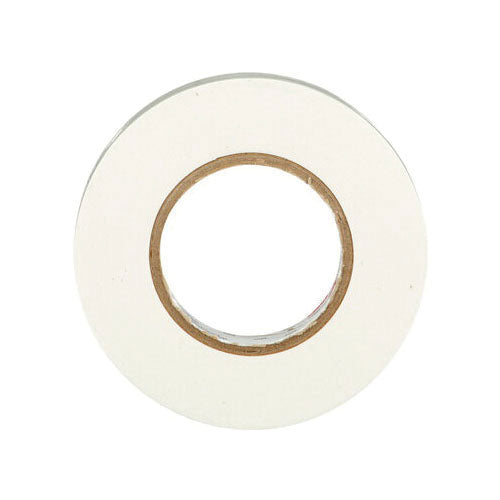

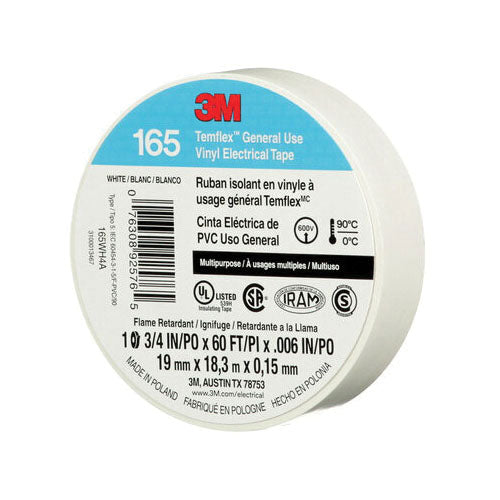

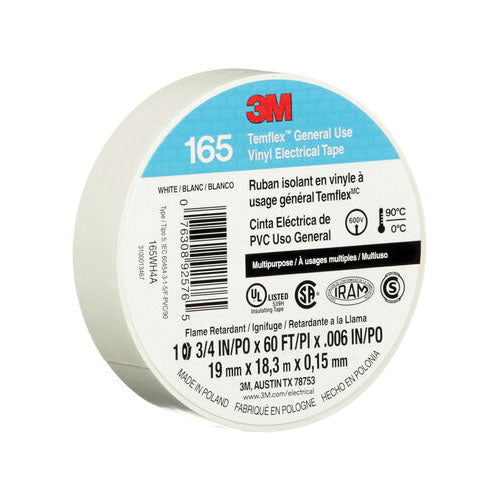

3M 7100169491 165 Multi-Purpose Tape, 60 ft L x 3/4 in W, 6 mil THK, Replacement MPN: 7100169491

Product Description

3M 7100169491 is a 165 Multi-Purpose Tape with a length of sixty feet and a width of three-fourth inches. This tape has a thickness of six mils and features a vinyl material with a rubber adhesive and PVC backing.

• Temperature range: Suitable for use in environments up to one hundred ninety-four degrees Fahrenheit and as low as thirty-two degrees Fahrenheit.
• Resistance: Offers excellent protection against abrasion, moisture, and acids.
• Electrical insulation: Rated for wire and cable splices up to six hundred volts.

Product Highlights

This tape is designed for use in various applications, including electrical insulation and protection against mechanical damage.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100169491

Technical Specifications

• Length: 60 ft
• Width: 3/4 in
• Thickness: 6 mil
• Material Type: Vinyl
• Adhesive Material: Rubber
• Backing Material: PVC
• Adhesion Strength: 18 in-oz
• Dielectric Strength: 1000 V/mil
• Maximum Operating Temperature: 194 deg F
• Minimum Operating Temperature: 32 deg F
• Voltage Rating: 600/1000 V
