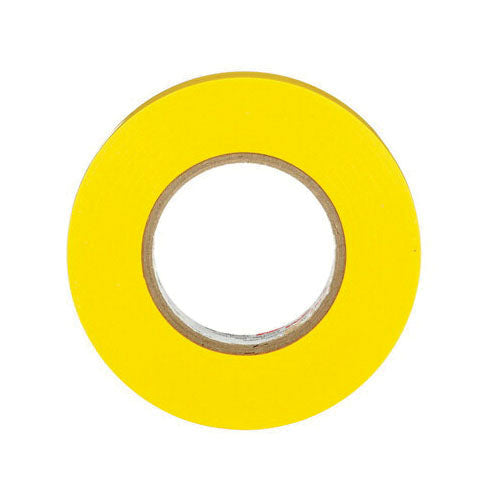

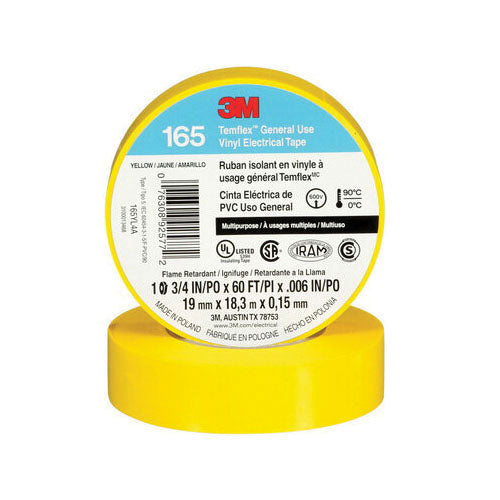

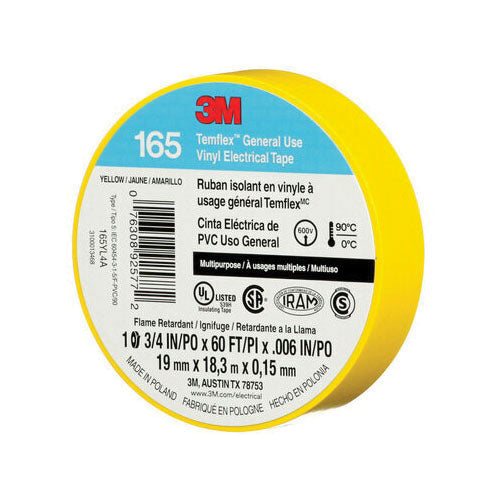

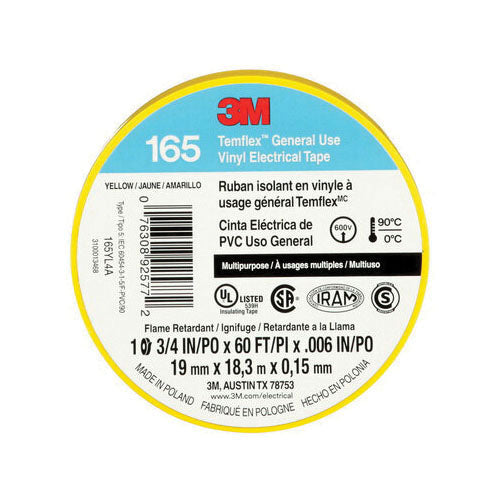

3M 7100169490 165 Multi-Purpose Flame-Retardant Electrical Tape 60 ft Length 3/4 in Width

Product Description

3M Temflex vinyl Electrical Tape 165 is a multi-purpose insulating tape that is six mil thick. Designed to withstand temperatures up to one hundred ninety-four degrees Fahrenheit, this tape is compatible with cold weather conditions down to thirty-two degrees Fahrenheit.

• Resists abrasion and moisture
• Flame-retardant and prevents corrosion of conductors
• Durable PVC material with rubber adhesive

Product Highlights

This tape offers excellent flexibility and insulation for wiring splices rated up to six hundred volts. It is suitable for various indoor and outdoor applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100169490

Technical Specifications

• Length: 60 ft
• Width: 3/4 in
• Thickness: 6 mil
• Material Type: Vinyl
• Adhesive Material: Rubber
• Backing Material: PVC
• Max Operating Temperature: 194 deg F
• Min Operating Temperature: 32 deg F
• Voltage Rating: 600/1000 V
• Dielectric Strength: 1000 V/mil
• Tensile Strength: 13 in-lb
• Adhesion Strength: 18 in-oz
• Specifications Met: CSA C22.2 No. 197, UL 510
