3M 7100169192 Temflex 165 Multi-Purpose Tape 60 ft x 3/4 in Replacement MPN

Product Description

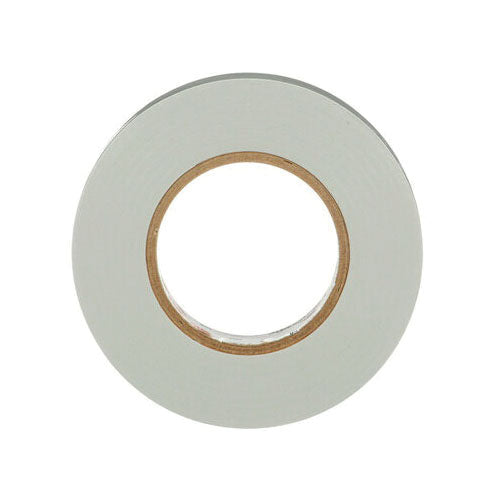

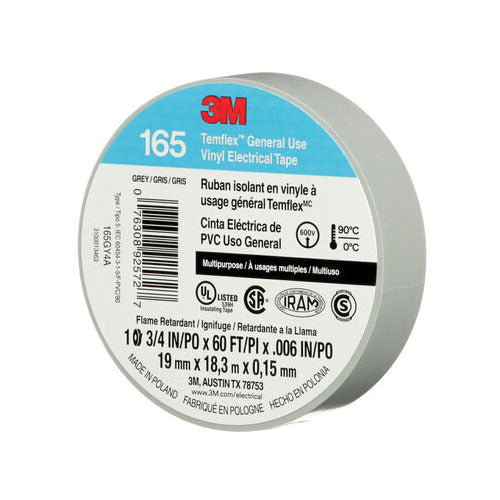

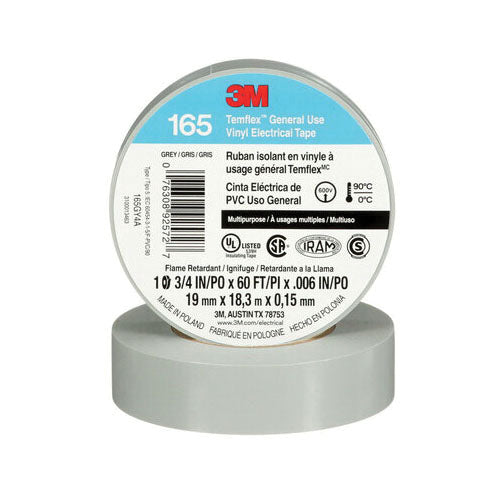

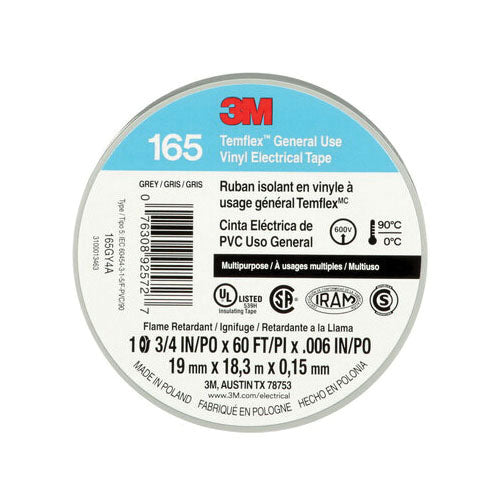

3M Temflex 7100169192 is a multi-purpose vinyl electrical tape designed for insulation and protection. This tape measures sixty feet in length and three-quarters of an inch in width with a thickness of six mils. It is made from durable vinyl with a rubber adhesive, providing reliable performance in various conditions. The tape functions well at temperatures ranging from thirty-two degrees Fahrenheit to one hundred ninety-four degrees Fahrenheit.

• Compatible with rubber and synthetic splicing compounds
• Resists abrasion, moisture, and weather conditions
• Meets CSA and UL certification standards

Product Highlights

3M Temflex tape is dedicated to providing electrical insulation for wire and cable splices rated up to six hundred volts. Ideal for indoor and weather-protected outdoor uses, it supports tasks such as wiring harnessing and color coding for phase identification.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Series: 165
• Length: 60 ft
• Width: 3/4 in
• Thickness: 6 mil
• Color: Gray
• Backing Material: PVC
• Adhesive Material: Rubber
• Dielectric Strength: 1000 V/mil
• Voltage Rating: 600/1000 V
• Adhesion Strength: 18 in-oz
• Tensile Strength: 13 in-lb
• Specifications Met: CSA C22.2 No. 197, UL 510
• Maximum Operating Temperature: 194 deg F
• Minimum Operating Temperature: 32 deg F
