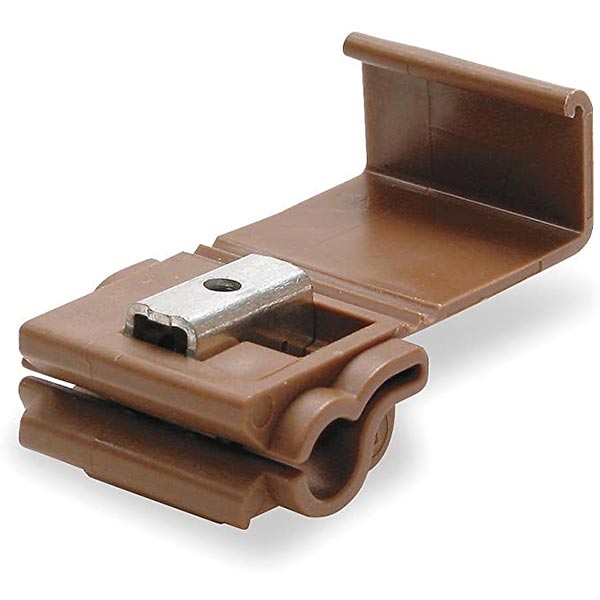

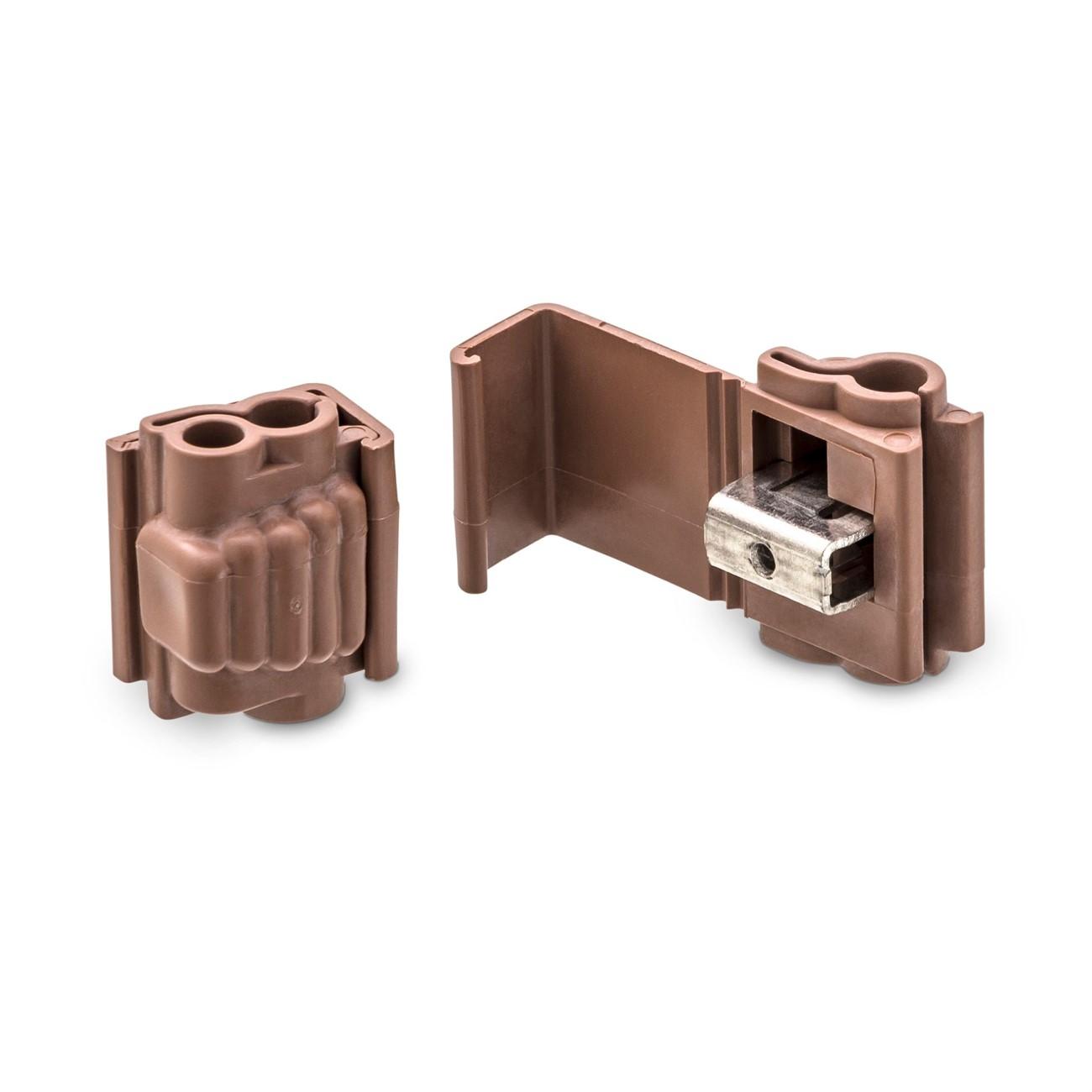

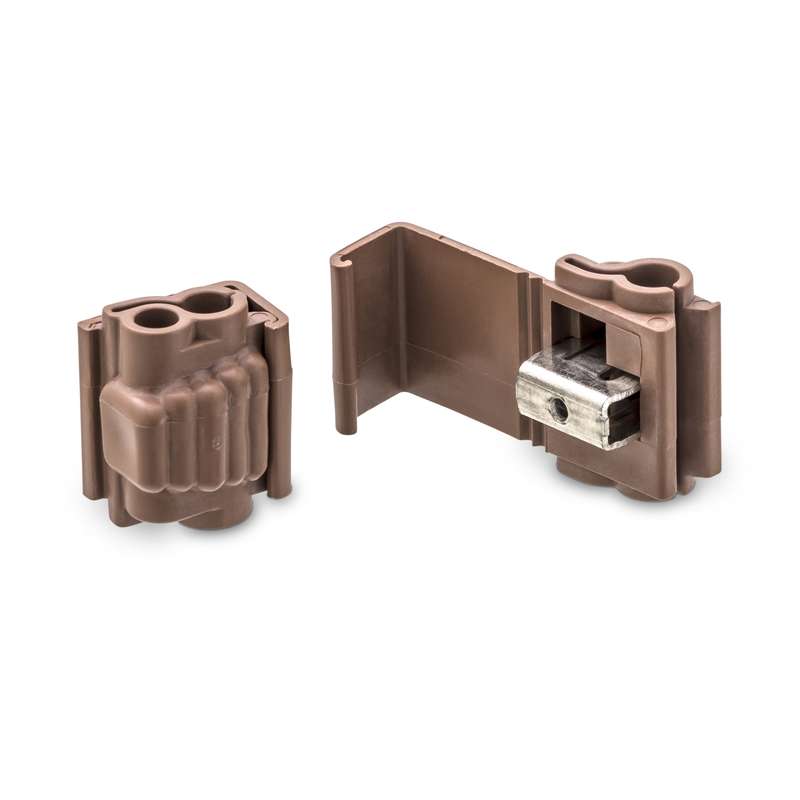

3M 7100167058 Scotchlok Electrical IDC 567-BOX, Run and Tap, Flame Retardant, 18-14 AWG (Tap) 12-10 AWG (Run)

Product Description

The 3M Scotchlok Electrical IDC 567-BOX connector is designed to provide reliable electrical connections. This insulation displacement connector is made for tap splicing and features a dual element connection. It is flame-retardant and can be used for wires with sizes 18 to 14 AWG (tap) and 12 to 10 AWG (run).

• Flame-retardant material for safety
• Self-stripping feature for ease of use
• Rated for 600 VAC, suitable for various applications

Product Highlights

This connector is ideal for applications including control circuit wiring and automotive systems. It withstands heat and maintains functionality even in harsh environments.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100167058

Technical Specifications

• Wire Size: 18 to 14 AWG (tap), 12 to 10 AWG (run)
• Voltage Rating: 600 VAC
• Temperature Rating: 221 °F
• Material: Polypropylene, TiN coated
• Dimensions: 0.19 in (run), 0.145 in OD (tap) max insulation
