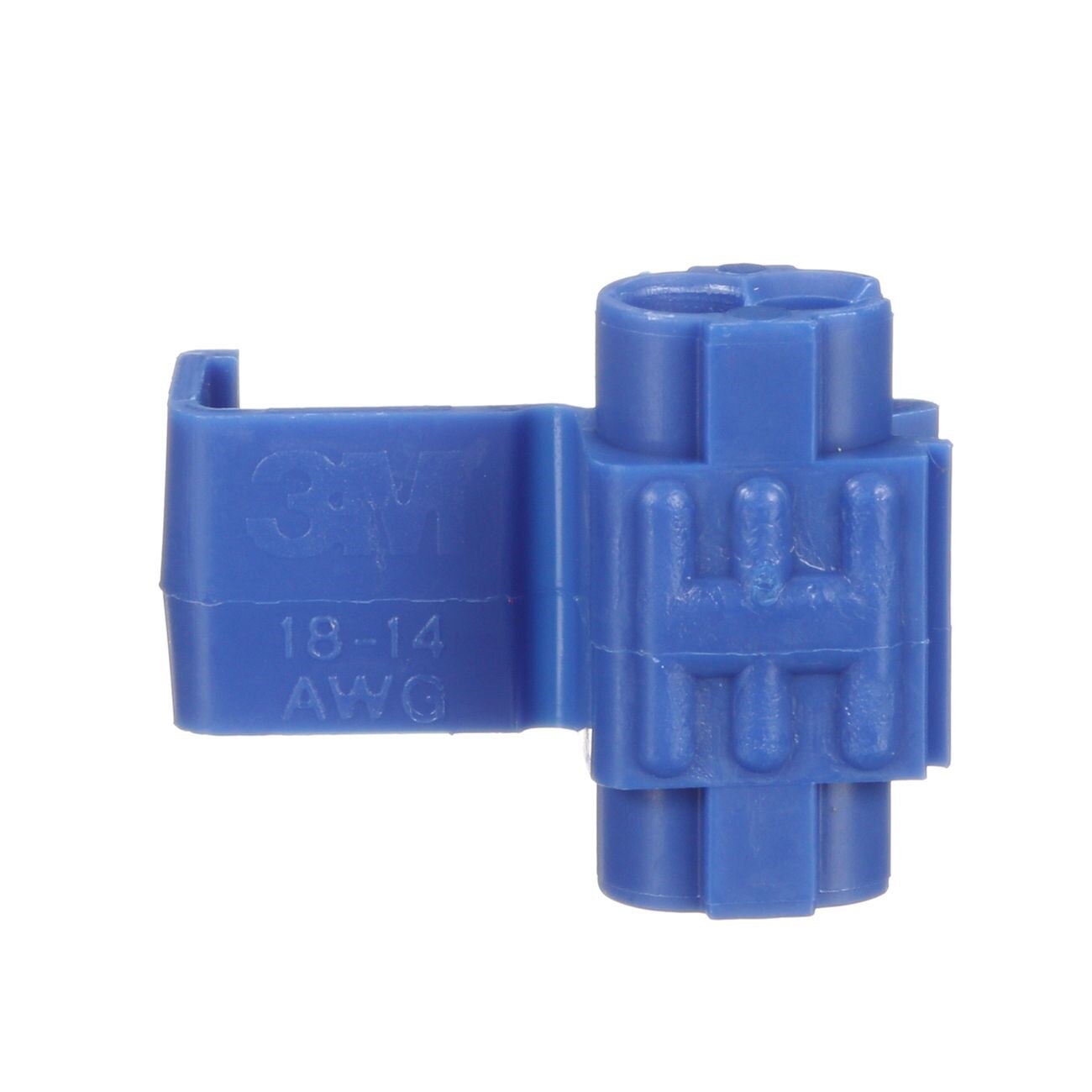

3M 7100166938 Idc 560B Connector Double Run Tap Blue

Product Description

The 3M 7100166938 is an insulation displacement connector (IDC) designed for double run or tap wire splicing in low-voltage electrical applications. Sold in a box of 100, this connector accepts 18 to 16 AWG solid or stranded wire and 14 AWG stranded wire, with a maximum insulation outer diameter of 0.145 inches. The blue housing is made from flame-retardant material and is rated for operating temperatures up to 194 degrees F. It is installed using the 3M E-9BM crimping tool. Electricians and low-voltage technicians use this connector for fast, reliable splices without stripping insulation.

This connector is suited for residential and commercial electrical work where double run or tap splicing is required. Common applications include branch circuit tapping, telephone and data wiring, control wiring, and similar low-voltage conductor connections. The IDC design allows the connector to pierce insulation and make contact with the conductor in a single crimping operation, reducing installation time. Each box contains 100 connectors, and a case contains 1,000 units, making it practical for high-volume service work or stocking at the job site.

Key Features

• Accepts 18 to 16 AWG solid or stranded wire and 14 AWG stranded wire
• Maximum insulation outer diameter of 0.145 inches
• Rated for operating temperatures up to 194 degrees F (90 degrees C)
• Flame-retardant blue housing for quick identification
• Compatible with the 3M E-9BM crimping tool for consistent, tool-applied terminations
• 100 connectors per box, 1,000 connectors per case

Compatibility

Designed for use with the 3M E-9BM crimping tool. Suitable for double run or tap splicing of 18 to 16 AWG solid or stranded conductors and 14 AWG stranded conductors in low-voltage electrical wiring applications.

Installation Notes

Installation is performed by a licensed electrician or qualified low-voltage technician using the recommended 3M E-9BM crimping tool. De-energize the circuit fully before making any splice connection. The IDC design does not require insulation stripping, but the conductor must be seated correctly in the connector cavity before crimping. Follow all applicable NEC requirements for conductor splicing and enclosure fill.

Technical Specifications

• Wire Range (Solid or Stranded): 18 to 16 AWG
• Wire Range (Stranded Only): 14 AWG
• Maximum Insulation Outer Diameter: 0.145 inches
• Operating Temperature: 194 degrees F (90 degrees C)
• Housing Color: Blue
• Flame Retardant: Yes
• Quantity Per Box: 100
• Quantity Per Case: 1,000
• Suggested Installation Tool: 3M E-9BM Crimping Tool
• UPC: 10054007200908

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100166938
