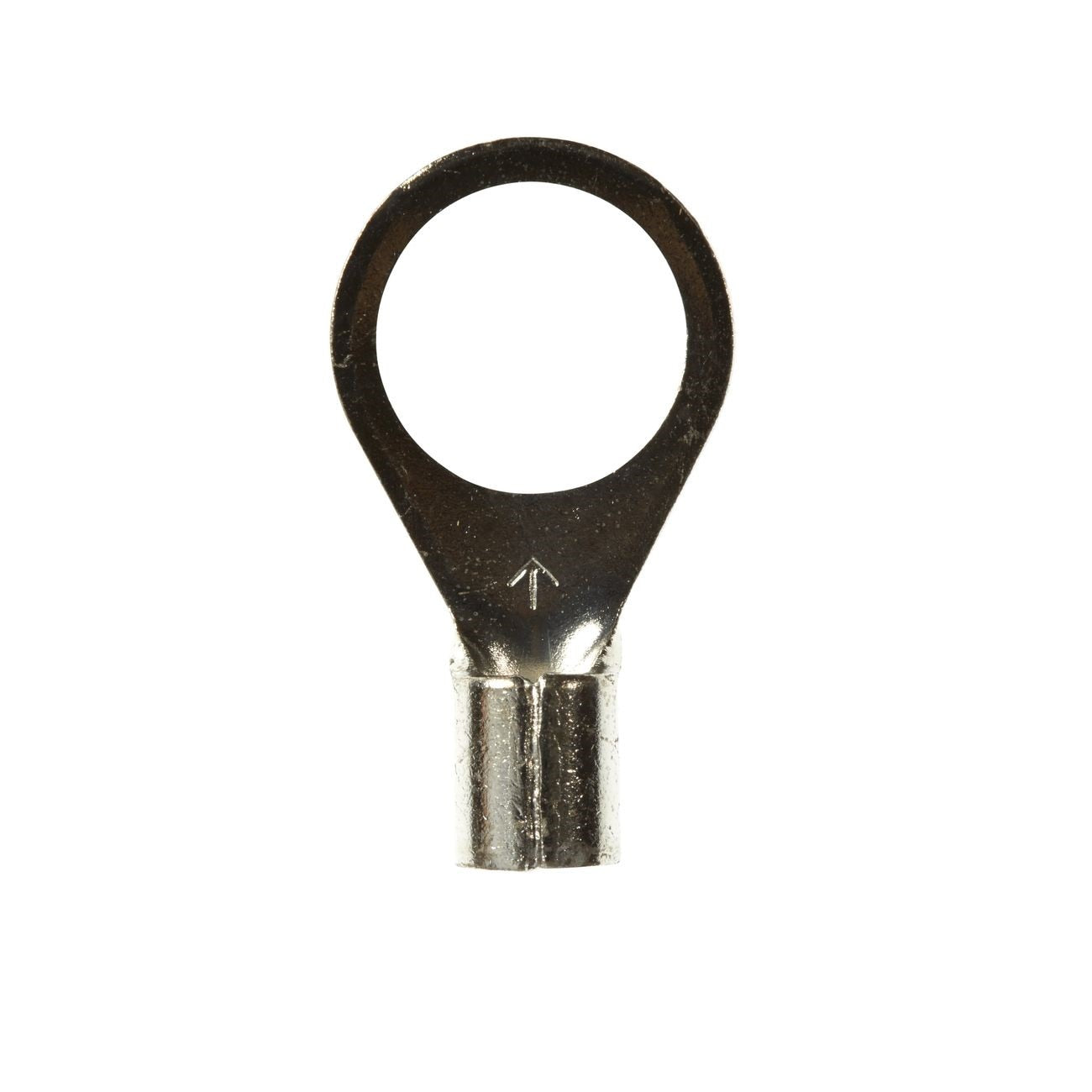

3M 7100165317 Non-insulated Ring Terminal M10

Product Description

The 3M 7100165317 is a non-insulated ring terminal designed for bare electrical connections in professional wiring applications. Sold in a bottle of 50, this terminal accepts an M10 stud size and provides a secure mechanical and electrical connection at the lug point. Non-insulated terminals like this one are typically used where a separate heat-shrink or tape insulation step is part of the installation workflow, or where connector inspection after crimping is required. Licensed electricians and experienced wiring technicians are the primary installers of this type of terminal.

This ring terminal is suited for residential, commercial, and light industrial wiring work where M10 stud terminations are required. Common applications include panel wiring, grounding connections, battery cables, control panel fabrication, and equipment hookups. The 50-count bottle format makes it practical for shop stock, service vans, and production environments where consistent terminal inventory is needed.

Key Features

• Non-insulated construction allows post-crimp inspection of the wire-to-terminal connection
• M10 stud size fits standard M10 hardware in electrical and mechanical assemblies
• 50-count bottle packaging supports service and production stocking
• Bare metal lug is compatible with separate insulation methods including heat shrink and electrical tape

Compatibility

Designed as an OEM-style ring terminal for professional electrical installations requiring an M10 stud size non-insulated lug termination.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC requirements. De-energize and lockout the circuit before terminating any conductors. Use a calibrated ratcheting crimp tool appropriate for the wire gauge and terminal series to ensure a gas-tight crimp. Do not solder non-insulated crimp terminals as a substitute for a proper crimp connection unless the connector is specifically rated for combined crimp-and-solder use.

Technical Specifications

• Stud Size: M10
• Insulation Type: Non-Insulated
• Quantity per Package: 50 per bottle
• Weight: 0.01 pounds
• UPC: 10051128589820

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100165317
