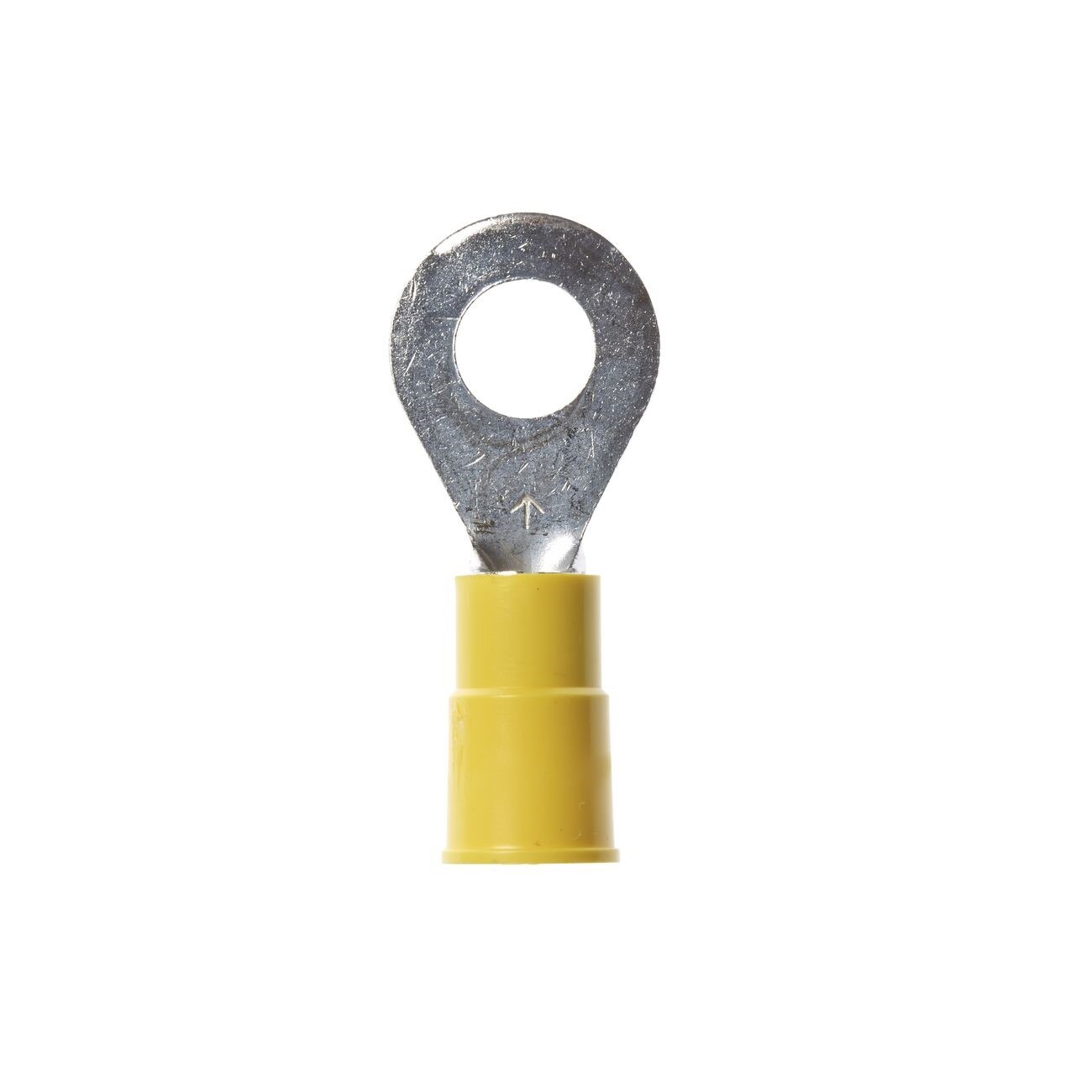

3M 7100165259 Vinyl Insulated Ring Terminal 50pk

Product Description

The 3M 7100165259 is a vinyl insulated ring terminal sold in bottles of 50, model MVU10-14R/SX. Ring terminals provide a secure, vibration-resistant electrical connection between a wire conductor and a threaded stud or screw. The vinyl insulation sleeve protects the crimped barrel from moisture and abrasion while keeping adjacent conductors isolated. Electricians and low-voltage installers use these terminals for panel wiring, grounding applications, and general electrical assembly work where a reliable mechanical and electrical bond at a screw lug is required.

Vinyl insulated ring terminals of this style are standard in residential and light commercial electrical work, control panel fabrication, and equipment wiring. The MVU10-14R/SX designation indicates this terminal is appropriate for use in applications requiring a slip-resistant ring-style lug. They are typically installed using a dedicated wire terminal crimping tool sized to the appropriate conductor range. These terminals ship in a 50-count bottle, convenient for bench stock or field kits.

Key Features

• Vinyl insulated barrel protects the crimp from moisture and mechanical abrasion
• Ring-style tongue seats securely over threaded studs or screws for a positive mechanical connection
• 50-count bottle packaging supports bench stock replenishment and field kits
• MVU10-14R/SX designation for straightforward part-number cross-referencing

Compatibility

Designed as an OEM-style replacement ring terminal for use in residential, commercial, and industrial electrical wiring applications where a vinyl insulated ring lug is specified.

Installation Notes

Installation is performed by licensed electricians or qualified technicians following applicable NEC guidelines. De-energize and lock out the circuit before terminating any conductors. Use a calibrated ratcheting crimp tool sized to match the terminal and conductor gauge to ensure a proper gas-tight crimp. Do not attempt to solder over a crimped vinyl-insulated terminal, as heat can damage the insulation sleeve.

Technical Specifications

• Model: MVU10-14R/SX
• Insulation Type: Vinyl
• Terminal Style: Ring
• Quantity per Bottle: 50
• Weight: 0.01 pounds
• UPC: 10051128588250

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100165259
